19
20
21
1-800-523-8499 • 1-727-443-5404

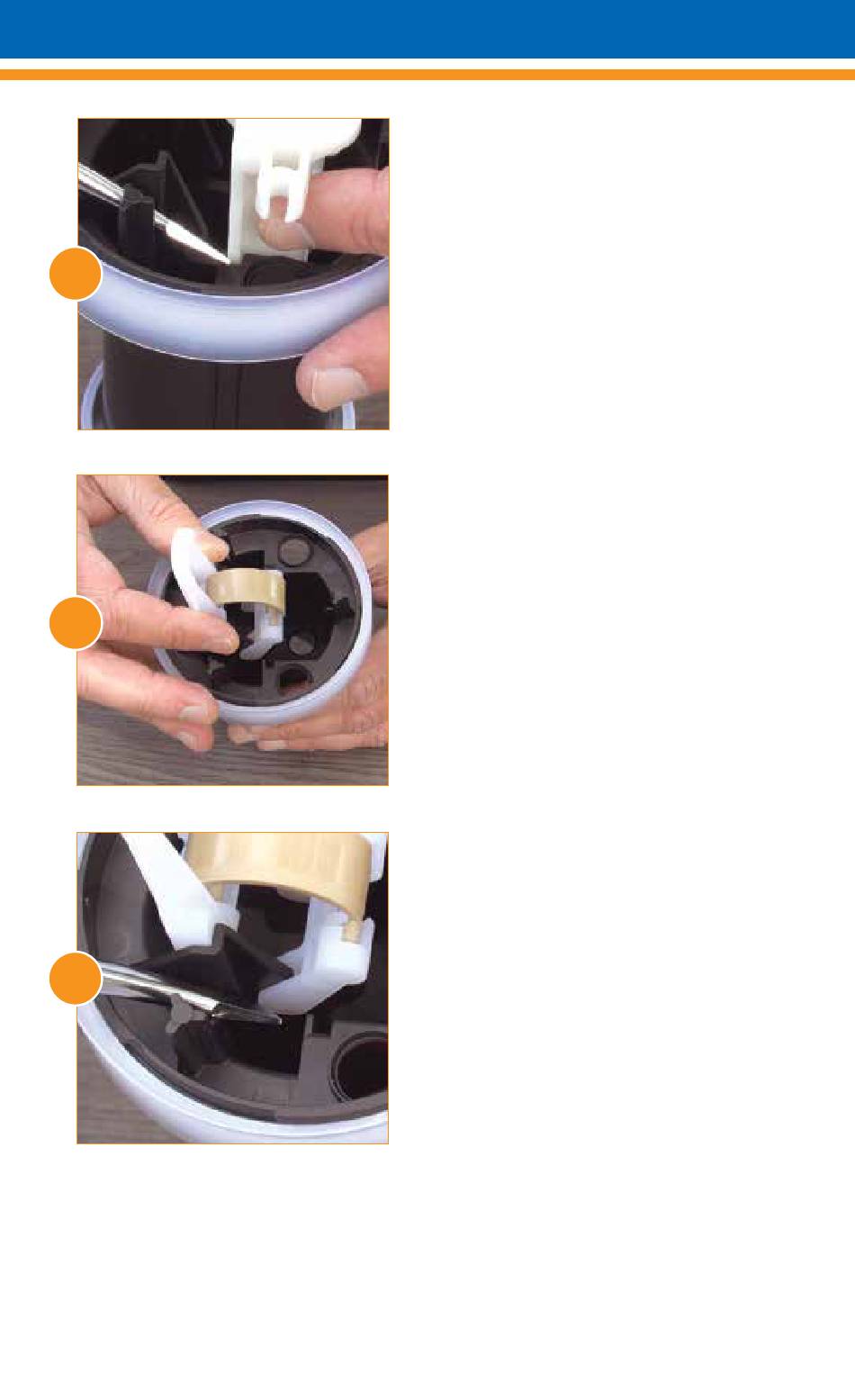

Notice how the valve support
frame aligns on the side with the
four holes, making sure it goes
into the grooves.
To demonstrate the alignment
of the push rod assembly, the
curved top would face inward,
inserting the push rod into the
single hole. This is where
the connecting rod sits in
the piston.
The key is to make sure the
white connecting rod drops into
the notches inside the
piston shell.
7
