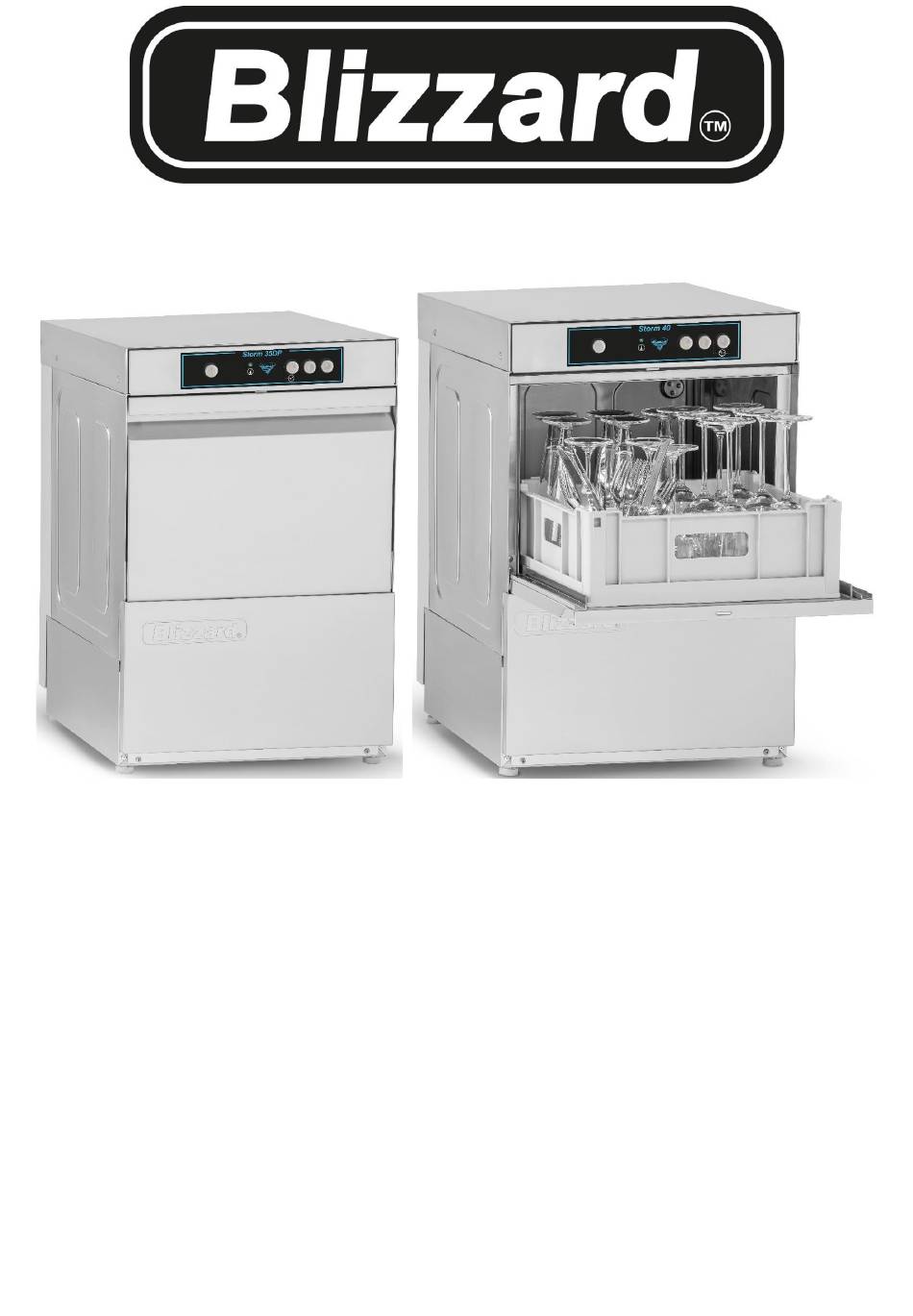

- Page 1 Storm Glasswasher User Manual Read these instructions carefully before using your Glasswasher, and care for it properly. If you follow the instructions, your glasswasher will provide you with many years of good service.
- Page 2 Fig1: Dimensions (mm) Storm 35/35DP Storm 40/40DP...
- Page 3 Drain pump versions:...
- Page 4 Fig. 7 Cycle buttons illuminate to indicate which cycle is Control Panel: running. Flashing indicates secondary switch function is operational. Temperature Press and release to start a Press and Press and release to On/Off switch, press and satisfied indicator. Short cycle, button release to start start a long cycle.
-
Page 5: General Information And Warnings
2. GENERAL INFORMATION AND WARNINGS This manual has been created to help you understand the operation, installation and maintenance of the machine. It contains all the necessary information and warnings to ensure that the appliance is installed used correctly, together with information about the characteristics and possibilities offered, so that you enjoy your machine to the full. -
Page 6: Product Details
3. PRODUCT DETAILS The machine which you have just purchased is specially designed for cleaning tableware, glassware other items of kitchenware used in the hotel and catering sector. As it is an industrial product, it is characterised for having a high dishwashing capacity. All the appliances have a specifications plate which identifies the appliance and indicates its technical characteristics, it is located on one side of the machine. -
Page 7: Installation Instructions
4. INSTALLATION INSTRUCTIONS The positioning and installation, and all repairs or modifications, should always be carried out by an AUTHORISED TECHNICIAN, in accordance with the applicable legislation of the country. The installation, incorrect adjustment, inappropriate maintenance or use of the appliance may cause material damages and injuries. 4.1 Removal of packaging Remove packaging from the machine and check for damage during transportation. -
Page 8: Hydraulic Connection
4.3.2 Voltage Configuration of the machine The voltage configuration of the machine is stipulated on the nameplate (230V 1N~50Hz/60Hz). This configuration cannot be changed; therefore, it is essential that the mains voltage of the premises where the machine is to be installed is confirmed prior to purchase. Fig. 6 4.4 Hydraulic connection The new hoses supplied with the appliance should be used (do not reuse old hoses). - Page 9 Fig. 4. Drainage installation. 6 Fig. 5. Installation of drainage at a height using drainage pump. The drainage pump must only be installed by personnel authorised by the manufacturer, and the manufacturer does not accept liability in the event of incorrect installation.
-
Page 10: Switching On The Machine
5.1.2 Switching on the machine Before switching on the machine, check the following: The mains switch must be on. The water stop cock must be open. There must be water in the mains network. The corresponding filters must be in place. The overflow should be mounted in place. -
Page 11: Maintenance
5.1.8 Cold rinse (Storm 40/40DP models only) The machine you have purchased has a cold rinse system so that once the tableware has been washed, it can be cooled quickly ready for subsequent use. To activate the cold rinse system, turn the control button to cold rinse (D) and hold down for the required time. -
Page 12: Faults, Alarms And Breakdowns
5.2.2 Rinse aid and detergent If you change the rinse aid or detergent, the settings should be adjusted accordingly. This adjustment must be carried out by qualified personnel. Only use detergents suitable for industrial dishwashers. Do not use foam-producing detergents. Detergents designed for domestic use should not be used under any circumstances. - Page 13 FAULT POSSIBLE CAUSE SOLUTION There is no power supply. Check MCB/switches and isolators are switched on The machine does The fuses have blown Call technician to analyse reason for failure not come on. On/off switch problem Press and hold for 3 seconds the on/off switch Water entrance valve closed.
- Page 14 6.1 Errors shown in display Error Indication Reason code ON/OFF LED lights up for 0.5 s and turns off Door or hood is open for 2 seconds, repeatedly. ON/OFF LED lights up twice for 0.5 s each Incorrect water level. Stipulated fill time time and turns off for 2 seconds, repeatedly exceeded.
