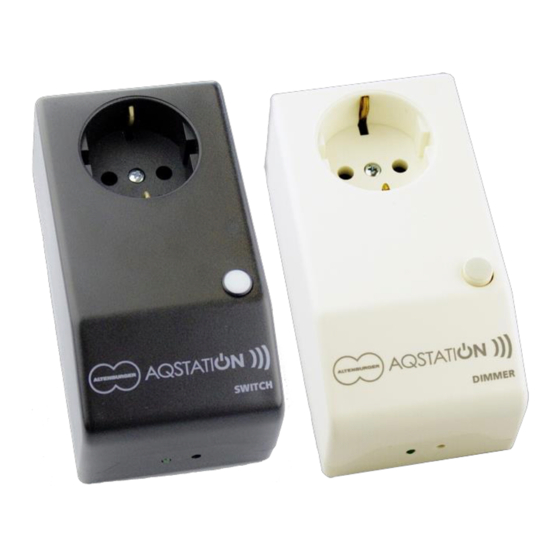

- Page 1 AQStation Switch Typ: AQS Switch black Order-No.: 90.00.000 Typ: AQS Switch white Order-No.: 90.00.001 LAN/Wi-Fi-based-control Manual Altenburger Electronic GmbH Manual AQStation Switch V1.0 - 17.07.2015 Page 1/8...
- Page 2 Do not rely exclusively on the App's status confirmations, as these might differ from the actual status. 2 Function The AQStation Switch is a Wi-Fi-controlled switch. It is designed to connect a mains socket (230 V, 50 Hz) and an electrical-load device. The module has a 16A volt-free relay output. It is designed to switch electronic devices of all kinds up to 16A.
- Page 3 5 Overview Control push-button (On/Off) with status confirmation Reset push-button Wi-Fi Status LED Altenburger Electronic GmbH Manual AQStation Switch V1.0 - 17.07.2015 Page 3/8...
- Page 4 The AQ Station device needs about two minutes to load the settings. In the meantime, connect your smartphone / tablet computer again to the Wi-Fi. After about two minutes, the new AQStation device will appear in the AQStation App. Altenburger Electronic GmbH Manual AQStation Switch V1.0 - 17.07.2015 Page 4/8...
- Page 5 Press on the name of the entry to get to the floors. From the floors to access the rooms. At this location there is the entry of the AQStation device. Use the Back function (Android up arrow, iOS left arrow) to enter a back level of the building structure. Altenburger Electronic GmbH Manual AQStation Switch V1.0 - 17.07.2015 Page 5/8...
- Page 6 By clicking on this icon the AQStation device is switched on or off. Is the AQStation device active the symbol is colored blue. • At the AQStation Switch there is on the right side addition ON or OFF. At AQStation Dimmer the percentage of the currently set brightness value appears. •...
- Page 7 (e.g. a ball pen refill). Do not disconnect the device; it takes the device 2 minutes to restart. After the restart, the AQStation device is restored to its factory settings. The previously saved functions (timers, groups, scenes, etc.) are deleted and cannot be recovered. Altenburger Electronic GmbH Manual AQStation Switch V1.0 - 17.07.2015 Page 7/8...
- Page 8 For technical or printing error type and its consequences, we assume no liability. Changes in the sense of technical progress can be made without notice. Altenburger Electronic GmbH Manual AQStation Switch V1.0 - 17.07.2015 Page 8/8...
