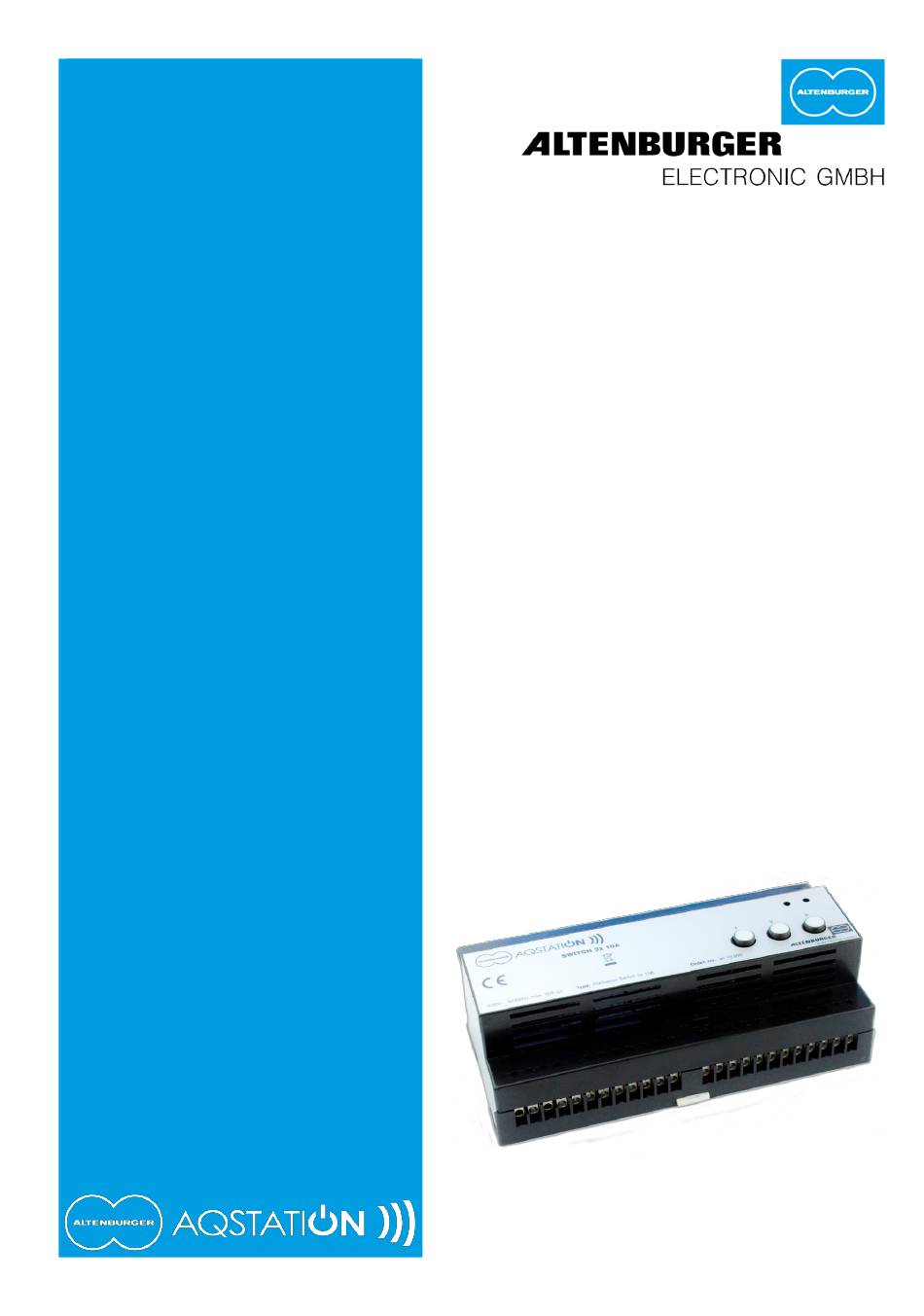

- Page 1 AQStation Switch Typ: AQS Switch 3x 10A Order-No.: 90.10.000 LAN/Wi-Fi-based-control Manual Altenburger Electronic GmbH Manual AQStation Switch 3x 10A V1.0 - 15.07.2015 Page 1/8...
-
Page 2: Safety And Installation Instructions
Do not rely exclusively on the App's status confirmations as these might differ from the actual status. 2 Function The AQStation Switch is a LAN/Wi-Fi-based control device with volt-free relays for three circuits. Each circuit has a 10A volt-free relay output. These outputs are designed to switch electronic devices of all kinds up to 10A. -
Page 3: Wiring Diagram
Loosen the seal screw, grasp the device with both hands and open it as demonstrated on the picture below. Open Loosen the seal screw before opening 7 Wiring diagram Altenburger Electronic GmbH Manual AQStation Switch 3x 10A V1.0 - 15.07.2015 Page 3/8... -
Page 4: Technical Data
II (protective isolation) Protection category IP 20 Degree of contamination 2 (dry non-conductive) Load contact (µ) 3x max. 10A at 230V ohmic load Qualification CE, RoHS, WEEE Altenburger Electronic GmbH Manual AQStation Switch 3x 10A V1.0 - 15.07.2015 Page 4/8... -
Page 5: Quick Start
/ tablet computer is connected to the right Wi-Fi. Restart the App, if necessary. Should these measures fail, restore your AQStation device to factory settings and re- initialise. Altenburger Electronic GmbH Manual AQStation Switch 3x 10A V1.0 - 15.07.2015 Page 5/8... - Page 6 By clicking on this icon the AQStation device is switched on or off. Is the AQStation device active the symbol is colored blue. • At the AQStation Switch there is on the right side addition ON or OFF. At AQStation Dimmer the percentage of the currently set brightness value appears. •...
- Page 7 (e.g. a ball pen refill). Do not disconnect the device; it takes the device 2 minutes to restart. After the restart, the AQStation device is restored to its factory settings. The previously saved functions (timers, groups, scenes, etc.) are deleted and cannot be recovered. Altenburger Electronic GmbH Manual AQStation Switch 3x 10A V1.0 - 15.07.2015 Page 7/8...
- Page 8 For technical or printing error type and its consequences, we assume no liability. Changes in the sense of technical progress can be made without notice. Altenburger Electronic GmbH Manual AQStation Switch 3x 10A V1.0 - 15.07.2015 Page 8/8...
