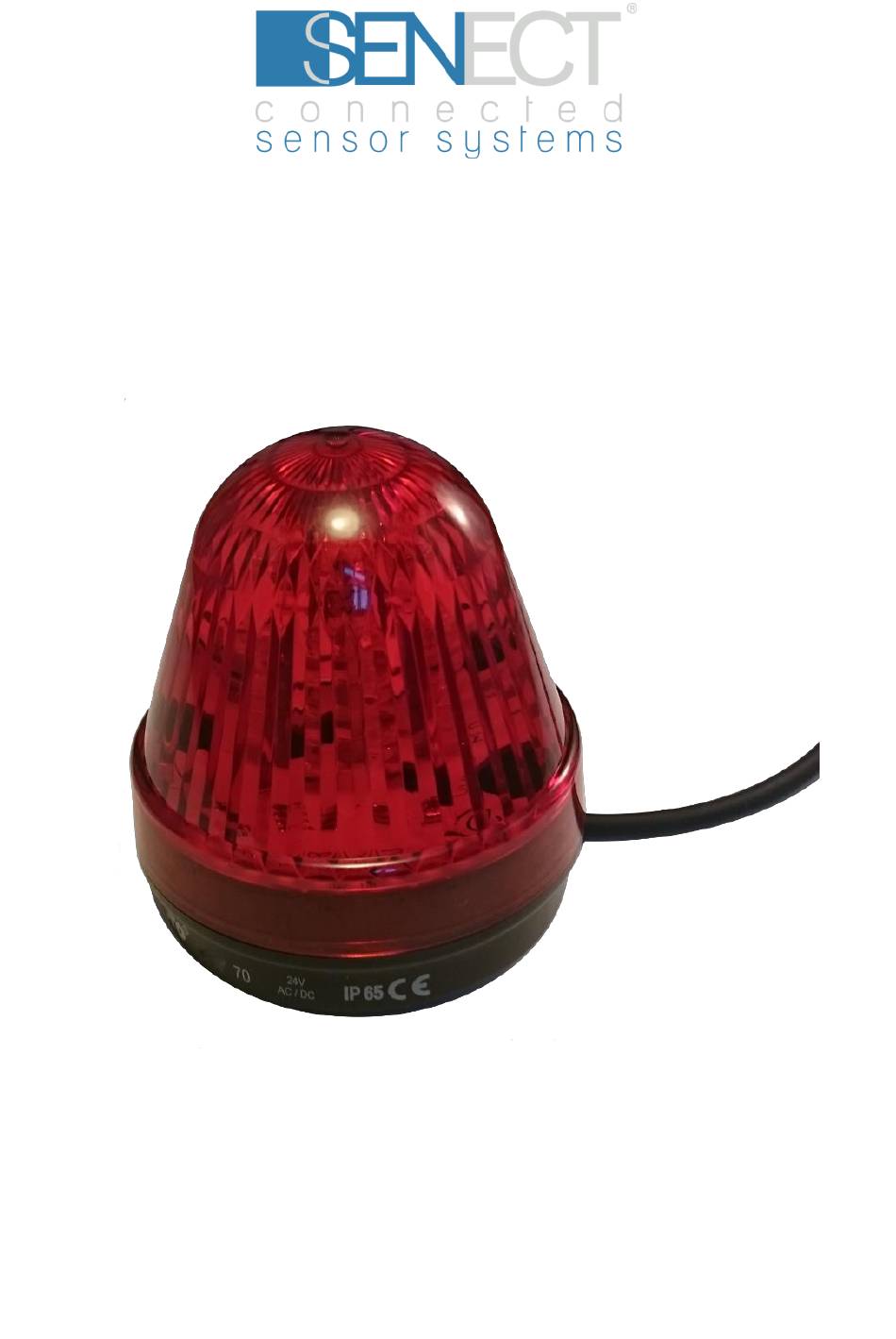

- Page 1 Alarm lamp VIS-LED MANUAL...
-
Page 2: Type
More information and latest software releases or documents can be downloaded from: www.senect.de Further information, application descriptions and answers to frequently asked questions can be also found on the SENECT Forum: http://forum.senect.de © SENECT GmbH & Co. KG - FW 00.80... -
Page 3: Table Of Contents
Table of contents Table of contents Type ....................2 Table of contents ................3 Used symbols and wording ............4 General Security Notes ..............5 Intended use .................. 6 Getting started ................6 Scope of delivery ............... 6 Note ................... 6 Installation and start-up ............ -
Page 4: Used Symbols And Wording
Used symbols and wording Used symbols and wording DANGER! Warning of life threatening dangers. WARNING! Warning possible life threatening and / or severe irreversible injuries. ATTENTION! Warning of possible medium or slight injury. ATTENTION! Follow the notes to avoid damage of equipment NOTE! Further information for the use of the device! -
Page 5: General Security Notes
General Security Notes General Security Notes The alarm lamp is an electric device designed for visually alarming the user of the SENECT control units in case of a user-defined alarm. Since it is an electric product the common prerequisites for a safe instrument usage must be fulfilled. -
Page 6: Intended Use
Technical and optical changes of this manual are subject to alterations. Intended use The alarm lamp is an electric device designed for visually alarming the user of the SENECT control units in case of a user-defined alarm. The alarm lamp is developed for the use in industrial aquaculture applications. -
Page 7: Installation And Start-Up
(see Fig. 1). Remove these two caps and mount the bottom at the location with 2 screws. Connect the green plug of the alarm lamp to one of the SENECT controllers actuator output ports („OUT“). - Page 8 Getting started Fig. 1: Mounting the alarm lamp.
- Page 9 Getting started Select the function „Alarm“ for this output port in the menu of the controller. Now, the alarm lamp will be switched on in case the controller detects an alarm. You can define the alarm setting at each sensor under „Alarm thresholds“. Getting started –...
-
Page 10: Technical Data
Technical data Technical data Dimensions housing: Ø 61,8 x 62,8 mm Material: PC, MPPO Cable length: Voltage: 24 V DC Power consumption: 1,2 W Temperature range: -25°C to +70 °C Ingress protection: IP65... -
Page 11: Information About The Correct Disposal
Alternatively, you can also send the product back to the producer. The SENECT GmbH & Co. KG is member of the Stiftung Elektro-Altgeräte Register and the products are registered (WEEE-Reg.-Nr.: DE37193510).
