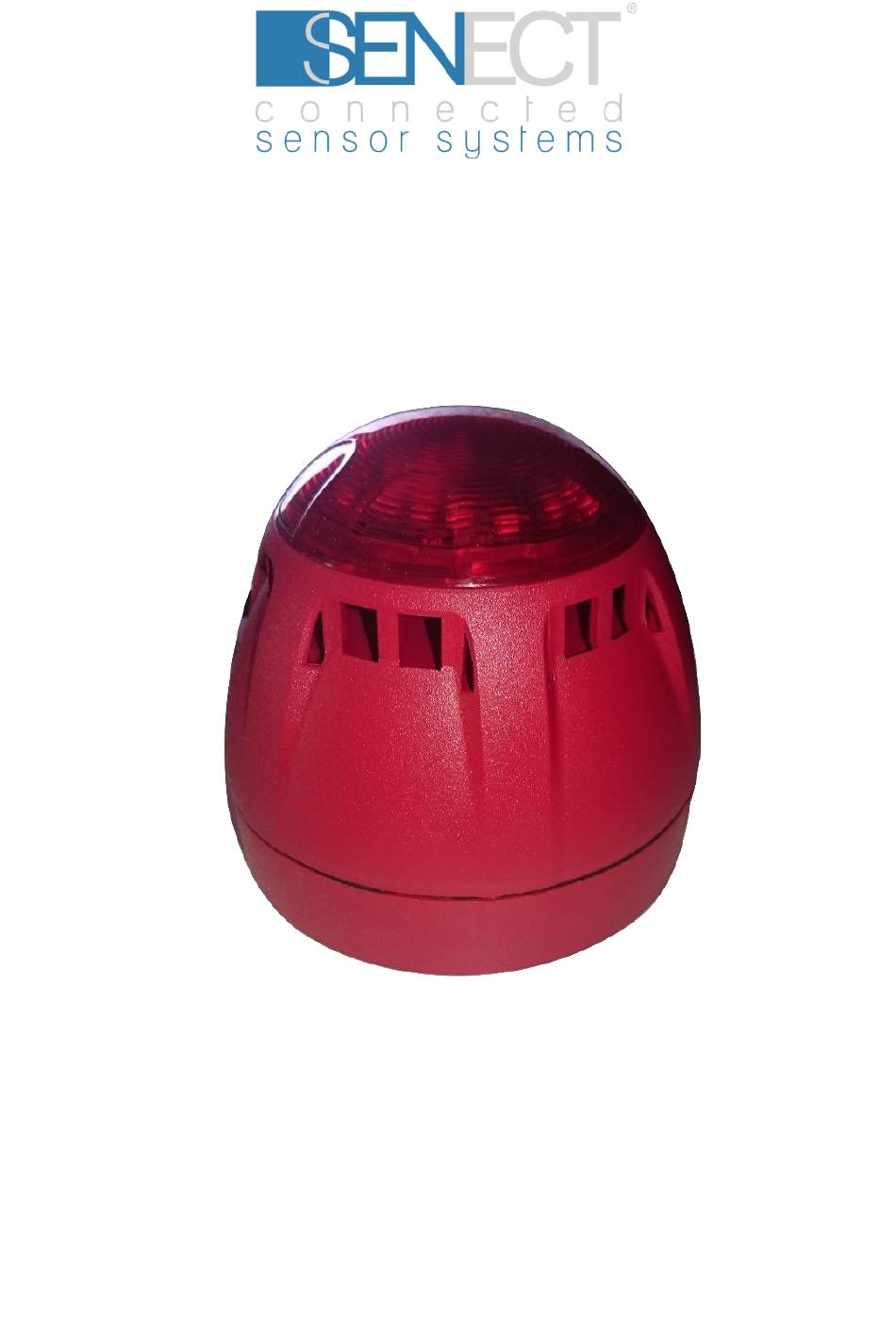

- Page 1 Alarm lamp with horn MANUAL...
-
Page 2: Type
More information and latest software releases or documents can be downloaded from: www.senect.de Further information, application descriptions and answers to frequently asked questions can be also found on the SENECT Forum: http://forum.senect.de © SENECT GmbH & Co. KG - FW 00.90... -
Page 3: Table Of Contents
Table of contents Table of contents Type ....................2 Table of contents ................3 Used symbols and wording ............4 General Security Notes ..............5 Intended use .................. 6 Getting started ................6 Scope of delivery ............... 6 Note ................... 6 Installation and start-up ............ -
Page 4: Used Symbols And Wording
Used symbols and wording Used symbols and wording DANGER! Warning of life threatening dangers. WARNING! Warning possible life threatening and / or severe irreversible injuries. ATTENTION! Warning of possible medium or slight injury. ATTENTION! Follow the notes to avoid damage of equipment NOTE! Further information for the use of the device! -
Page 5: General Security Notes
General Security Notes The alarm lamp is an electric device designed for visually and acoustically alarming the user of the SENECT control units in case of the occurrence of a user-defined alarm. Since it is an electric product the common prerequisites for a safe instrument usage must be fulfilled. -
Page 6: Intended Use
Intended use The alarm lamp is an electric device designed for visually and acoustically alarming the user of the SENECT control units in case of the occurrence of a user-defined alarm. The alarm lamp is developed for the use in industrial aquaculture applications. -
Page 7: Installation And Start-Up
Getting started listed above are included. If anything is missing or broken, please contact us as soon as possible within 14 days. Unfortunately, we cannot accept later information of damage, which happened during the transport. Installation and start-up Mount the alarm lamp at a place in the vicinity of your control unit where you can see it best. - Page 8 Connect the green plug of the alarm lamp to one of the SENECT controllers actuator output ports („OUT“). Select the function „Alarm“ for this output port in the menu of the controller. Now, the alarm lamp will be switched on in case the controller detects an alarm.
- Page 9 Getting started Getting started – short version 1. Open housing by removing the screw, loosening the cable gland and rotation of the two housing parts. 2. Drill holes through the bottom part. 3. Mount the bottom part. 4. Select tone type and loudness. 5.
-
Page 10: Tone Selection Table
Tone selection table Tone selection table DIP- Frequency Description Time Pattern Application Positions [Hz] 150 to Up- and 10 s – 40 s 000000 1000 to Hoechst downswelling – 10 s 000001 alternating 800 & 970 2 Hz BS Fire 800 to 000010 Upswing... - Page 11 Tone selection table Sweden 010001 Interrupted 0.28 Hz local warning Sweden 010010 Interrupted 0.05 Hz pre-mess Permanent Sweden all 010011 Steady sound clear Sweden 010100 Alternating 554 & 440 0.5 Hz turn out Sweden 010101 Interrupted 1 Hz general Pelican 010110 Interrupted 2850...
-
Page 12: Technical Data
Technical data Technical data Dimensions housing: Ø 90 x 97 / 108 mm Material: Cable length: Voltage: 24 V DC Power consumption: 1,2 W Temperature range: -25°C to +70°C Ingress protection: IP65... -
Page 13: Information About The Correct Disposal
Alternatively, you can also send the product back to the producer. The SENECT GmbH & Co. KG is member of the Stiftung Elektro-Altgeräte Register and the products are registered (WEEE-Reg.-Nr.: DE37193510).
