  • Page 1 Operating and Maintenance Manual IVURplus 40 IVURplus 50 IVURplus 58 0242017 0243017 0244017 IVURplus...
  • Page 2 IVURplus...
  • Page 3: Table Of Contents

    Table of contents Introduction General safety guidelines Graphic presentation Technical data Transport Activities prior to starting work Electrical connection Connecting the interior concrete vibrator to the converter Initial operation Shutdown Maintenance Troubleshooting Circuit diagram IVURplus...
  • Page 4: Introduction

    Introduction This operating and maintenance manual is designed to facilitate familiarization with your interior concrete vibrator, and enable you to maintain the interior concrete vibrator and use it in accordance with the proper application possibilities. When complying with the instructions in the operating and maintenance manual you help avoid hazards, reduce repair and downtime costs, and increase the reliability and service life of your interior concrete vibrator.
  • Page 5: General Safety Guidelines

    Safety and operating instructions General All safety instructions must be read and complied with, non-compliance results in – danger to life and limb of the user – impairments to the machine or other property. In addition to the operating manual, the accident-prevention regulations in the country where the appliance is used must be complied with.
  • Page 6 Electrical voltage safety It is prohibited to switch the interior concrete vibrator on or off by removing or inserting the connector plug into or from the power outlet. The connecting cable of the interior concrete vibrator must not be used to pull the plug out of the power outlet.
  • Page 7 Operation Prior to starting work the owner of the interior concrete vibrator must be familiar with the work environment. The working environment includes obstacles in the work and traffic area, the bearing capacity of the ground, as well as the necessary safeguarding of the construction site. The interior concrete vibrator should only be operated when the protective fixtures are mounted.
  • Page 8 Inspection Have internal concrete vibrators inspected for operationally safe status in accordance with the regulations applicable in the country of use at least every 6 months or more frequently if necessary. The protective conductor current measured for the device may exceed 3.5 mA. A protective conductor current of up to 4 mA is typical.
  • Page 9: Graphic Presentation

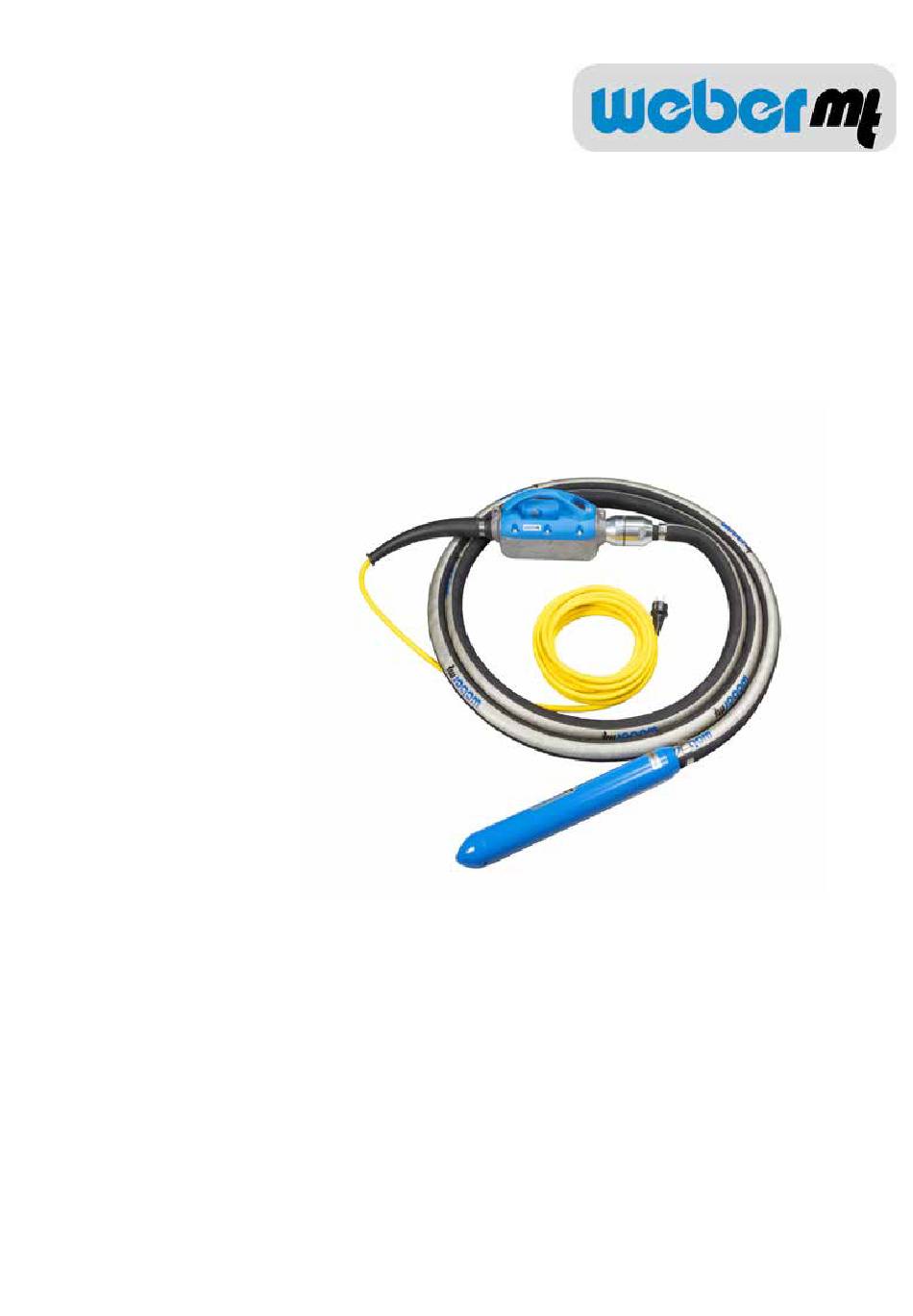

    Graphic presentation Overall view IVURplus 40 / 50 / 58 Plug Connecting cable Switch Converter Coupling Protective tube shielded in accordance with “EMC Directive” Interior concrete vibrator LED protective conductor system IVURplus...
  • Page 10: Technical Data

    Technical data IVUR 40 IVUR 50 IVUR 58 Weight Operating weight CECE (in kg) Effective diameter approx. mm Dimensions Vibrator diameter Vibrator length Protective tube length 5000 5000 5000 Weight 10.5 Connection vibrator section Input voltage Rated current Frequency (Hz) Rated power 1050 Connection converter section...
  • Page 11 1 Serial number: 2 Year of manufacture: 3 Type / description: IVURplus...
  • Page 12: Transport

    Transport When transported on vehicles, the interior concrete vibrator must be secured against slipping or rolling away using suitable means. Activities prior to starting work electrical connection Before putting the interior concrete vibrator into operation, make sure the mains voltage (1) corre- sponds to the voltage specified on the rating plate.
  • Page 13: Initial Operation

    Initial operation Connect the interior concrete vibrator only to a voltage supply that corresponds to the voltage specified on the rating plate. Always insert the power plug into the power outlet before switching on the converter. Insert the power plug (1). Put the interior concrete vibrator into operation by pressing the switch (1).
  • Page 14: Maintenance

    Maintenance Maintenance Maintenance Maintenance interval point activity Daily Entire machine – Clean unit – Check connecting cable and plug for exterior damage Every 200 – Check bottle neck and operating hours bottle tube for wear, replace if necessary Work must be carried out using regulation tools, and the operating and maintenance manual must be complied with for all work.
  • Page 15 Blink code at converter The switch housing may only be opened by skilled personnel. The converter board is live after the removal of the switch housing. – Danger to life – Cover (1) Housing (2) Electronics (3) LED yellow (4) LED display Cause Operating status...
  • Page 16: Circuit Diagram

    Circuit diagram IVUR Frequency converter IVURplus...
  • Page 17 IVURplus...
  • Page 18 IVURplus...
  • Page 19 IVURplus...
  • Page 20 facebook.com/WeberMT youtube.com/MyWeberMT Weber Maschinentechnik GmbH Im Boden 5 – 8, 10 · 57334 Bad Laasphe · Germany Telefon +49 2754 398 0 · Fax +49 2754 398 101 info@webermt.de · www.webermt.de 085105061-104 / IVUR plus_2020_06_EN Original instructions IVURplus...
