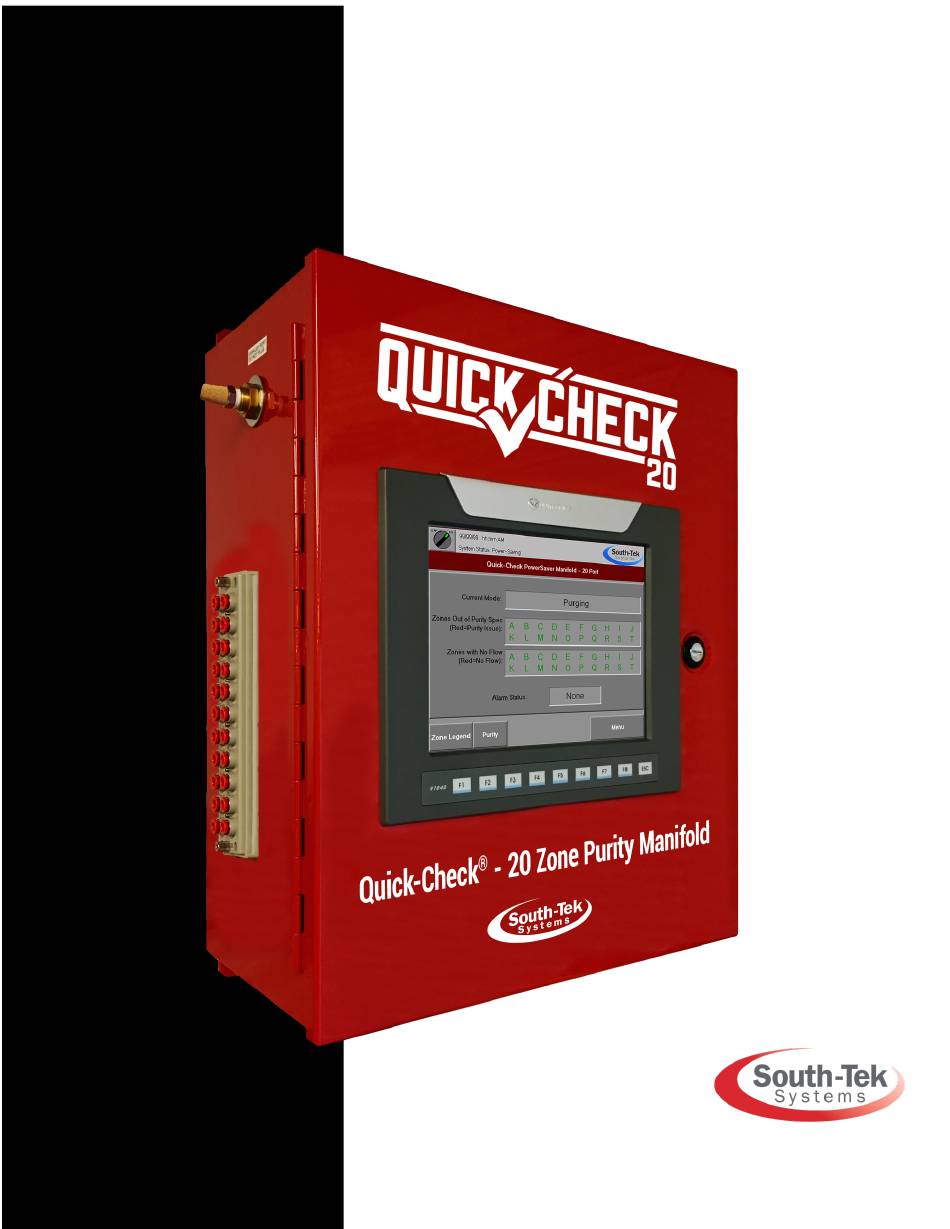

- Page 1 Quick-Check 10 & 20 Port PowerSaver Manifold O&M Manual Version 0; 09/06/17 © 2020 The Leader in Nitrogen Generation Technology...
- Page 2 Electrical Schematic Drawing #: __ ES-QCF-PS10-20PM, R0 __________________________________________________ Other Documentation(s): _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ Service or Questions Contact: South-Tek Systems Service Department 2940 Orville Wright Way, Wilmington, NC 28405 Phone: 1-(888)-526-6284, Ext. 127 Email: info@southteksystems.com service@southteksystems.com Visit: www.southteksystems.com Revision: 0 Revision Date: 8/30/17...
- Page 3 Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems --------------------------------------------------------Notes Page---------------------------------------------------------- Revision: 0 Revision Date: 8/30/17 Page 3 of 29...
-
Page 4: Table Of Contents
South-Tek Systems TABLE OF CONTENTS INTRODUCTION ......................................6 1.1 Purpose ......................................... 6 1.2 About South-Tek Systems ..................................6 1.3 Audience ........................................6 1.4 Limits of Liability......................................7 1.5 Service Return Policy ....................................7 2 SAFETY GUIDELINES ....................................7 2.1 General Safety Practices ................................... 8 2.2 Safety Information ...................................... - Page 5 Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems 7.1.3 Normal Start-up ................................... 23 7.2 Shutdown ........................................23 8 SYSTEM MAINTENANCE..................................24 8.1 Filter Element Replacement ................................... 24 8.2 Maintenance Screen ....................................25 8.2.1 Maintenance Test ................................25 8.2.2 Valve Test Mode .................................. 25 9 AUTOPURGE SYSTEM TUNING ................................
-
Page 6: Introduction
Systems is not responsible for damages concerning the use of this device when used in manners not approved by South-Tek Systems. The user(s) of this document should confer any questions with a qualified South-Tek Systems representative with respect to its commissioning and correct operational use. -
Page 7: Limits Of Liability
System. Transportation charges for the return of the System shall not be paid unless authorized in advance by Seller. NOTE: Any MODIFICATIONS made by the customer without the written consent of South-Tek Systems will void the product’s design specifications. -
Page 8: General Safety Practices
Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems as air compressors, dryers, boosters, etc., please refer to individual manufacturer recommendations and safety guidelines. GENERAL SAFETY PRACTICES Correct use of the Quick-Check PowerSaver Manifold is important for your personal safety and for trouble-free functioning. -
Page 9: Product Installation
Ensure that all parts to connect to the AutoPurge System (APS) are with the unit. South-Tek Systems is not responsible for damages that have occurred during shipping and handling of the N -BLAST. -
Page 10: Storage Instructions
Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems Until Installation: Store the Quick-Check in a dry and climate controlled (60-80°F) room. Always keep Quick-Check in a safe place / or in box as shipped. Do not connect power until manual has been read completely and all connections are made as stated ... - Page 11 Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems or South-Tek Systems at (888) 526-6284. Please include the model number and the serial number with all correspondence. The Quick-Check PowerSaver Manifold key features include the following: - Programmable Logic Controller (PLC) with HMI...
-
Page 12: Specifications
Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems k of solenoid valves on a manifold is located on the outside bottom of the cabinet. Each Zone’s sample (from the “AutoPurge System”) will be connected to each solenoid valve. Each valve is independently controlled and operated by the PLC based on the O content of the corresponding Zone. -
Page 13: System Controls And Communications
This section describes the function of the major controls and instrumentation associated with the Quick-Check. Do not attempt to alter any controls or instrumentations; any changes without South-Tek Systems’ consent will void the performance specifications unique to the system. -
Page 14: Powering On/Off
Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems status of each zone, and current mode. The user can manually start/stop and navigate to either the “Menu”, “Zone Setup” by pressing the “Legend” button or “Zone Info” by pressing the “Purity”. The Zone Setup will show which letter corresponds to each zone while the Zone Info will show the last purity readings of each zone. -
Page 15: Menu Screen
Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems MENU SCREEN The “Main Menu” screen (accessed from home screen), is password protected. Please consult the second page under “Revision History” of the provided hard-copy manual for the user password. Once access is granted to the “Main Menu”, the user can access all but the “System Settings”... -
Page 16: Alarms/Filter Parameters
Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems Never block the outlet purge line ALARMS/FILTER PARAMETERS The “Alarm Info” menu displays the O2 alarm setpoint on the right with the purity alarm, flow alarm, and filter alarm enable/disable buttons on the left. Local audible alarm can be enabled/disabled to produce an audible beep in the Quick- Check when enabled alarms are triggered. - Page 17 Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems Active Alarms/Reset Alarm Status: When an alarm status is read in the system, the unit will display the alarm status on the “Alarm Info” screen. Alarms can be reset by typing the reset code into the Reset Alarm block and pressing “Reset Alarm”. Before resetting the Filter Alarm, read the “Filter Info”...
-
Page 18: Zone History
Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems ZONE HISTORY Figure 14: Zone History To access the “Zone History” screen, open the “Zone Info” screen in the “Menu” and press the “Zone History” button at the bottom of the screen. Zone History can be reset by entering the code “7777” into the box next to “Reset Days” button and then press the button. - Page 19 Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems Remote Access A copy of the setup files for this software will be included on the microSD card installed in the PLC if the Ethernet option was purchased. This software can be installed on any windows based PC with Windows 7 or higher. The user will have full access of the controller touchscreen as if the user was standing in front of the machine and using the mouse to navigate through the screens.
- Page 20 Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems MODBUS Communication Once the Quick-Check is provided with a static IP addressed and can be seen on the network, MODBUS communication can be set up to retrieve real time data. The Quick-Check MODBUS Communication settings are as follows: Protocol: TCP Local Port: 502...
-
Page 21: Reading The Quick-Check Zone Status
Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems 6 READING THE QUICK-CHECK ZONE STATUS ZONE PURITY STATUS The purity status of each of the zones can be determined by the color of the zone letters in the “Zones out of Purity Spec:”... -
Page 22: Quick-Check Powersaver Manifold Operations And Start-Up
Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems 7 QUICK-CHECK POWERSAVER MANIFOLD OPERATIONS AND START-UP This section describes procedures to start, run, and stop the Quick-Check PowerSaver Manifold. The operator should notify personnel in the area of the equipment start-up. Make sure the start-up will not interfere with other operations. START-UP This section describes the necessary steps of both the initial start-up and a normal routine start-up. -
Page 23: Initial System Purge
Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems “Legend” button. Press inside the box to change the number to the number of zones that will be required for the system. This screen can be seen in Figure 22. (Optional) Change the name of the zones in “Zone Setup” which can be accessed through the “Menu”. The user can press any zone to change each to a more descriptive name of up to 8 characters. -
Page 24: System Maintenance
Figure 27: manufacturer's warranty. Use of filters other than those specified by South-Tek Systems could result in damages not covered by the warranty. Figure 24: Filter Replacement Wash the bowls in soapy water and rinse thoroughly as needed. Use of light air gun to remove debris is also acceptable. -
Page 25: Maintenance Screen
Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems MAINTENANCE SCREEN 8.2.1 Maintenance Test Maintenance Test is a feature on the Quick-Check PowerSaver Manifold which allows user to view a quick operation of the sampling function in the unit. To utilize Maintenance Test ensure the ON/OFF selector switch on the Home screen is in the ON postion then navigate to the Maintenance screen through the main Menu... -
Page 26: Autopurge System Tuning
Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems 9 AUTOPURGE SYSTEM TUNING Disconnect tube at the Close each APS ball valve. Make sure each flow Quick-Check PowerSaver control (Figure 29) is turned all the way clockwise. Manifold installed before setting Bring the Fire Protection System up to Supervisory the APS flow. -
Page 27: Faqs
This section enables the operator to determine the cause of operation problems and suggests remedies for the problems. If there are several likely causes, investigate the simpler solutions first. If further assistance is required, contact your local distributor or South-Tek Systems. Symptoms Probable Cause... -
Page 28: Key Contacts
The Quick-Check PowerSaver Manifold is warrantied against any defects in workmanship and materials for 12 months from the date of shipment from South-Tek Systems. The purchaser has the liability to ensure that the system is fully inspected upon delivery and shall contact the appropriate shipping company to make any claims on damaged goods due to transit within that shipping company’s policies. - Page 29 Quick-Check PowerSaver Manifold 10 & 20 Port South-Tek Systems ------------------------------------------------------------Last Page------------------------------------------------------------- Revision: 0 Revision Date: 8/30/17 Page 29 of...
