PRODUCT NO.
FDB635RFR5
FDB635RFS5
MARKET
North America
SERVICE DATA SHEET # - 154394901
OWNER'S GUIDE # - 154392701
INSTALLATION INSTRUCTIONS # - 154329601
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
BASE MODEL NO.
SERIES
FDB635RF
Built-in 24"
FDB635RF
Built-in 24"
Publication No.
5995352712
-EN/SERVICE /ECL
FACTORY PARTS CATALOG
COLOR
black
white
010419
©2001 White Consolidated Industries, Inc.
821
All rights reserved

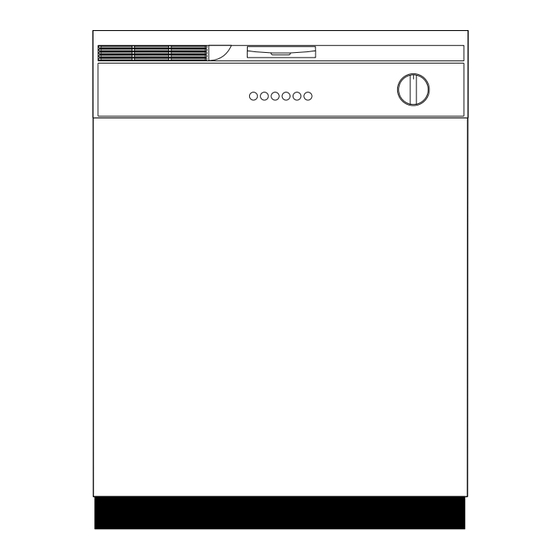

DISHWASHER
24" Built-In
DISHWASHER
Model No.
FDB635RF
Advertisement
Related Manuals for Frigidaire FDB635RF
Summary of Contents for Frigidaire FDB635RF
- Page 1 PRODUCT NO. BASE MODEL NO. FDB635RFR5 FDB635RF FDB635RFS5 FDB635RF MARKET North America SERVICE DATA SHEET # - 154394901 OWNER’S GUIDE # - 154392701 INSTALLATION INSTRUCTIONS # - 154329601 ELECTROLUX HOME PRODUCTS NORTH AMERICA P.O. Box 212378, Augusta, GA 30917 FACTORY PARTS CATALOG...
-
Page 2: Control Panel
Publication No. FDB635RF 5995352712 CONTROL PANEL 04/01... - Page 3 A = FDB635RF (FDB635RFS5) B = FDB635RF (FDB635RFR5) POS. NO # = Fast Moving Part * = Non-Illustrated Part CONTROL PANEL PART NO DESCRIPTION 154368204 Panel-control,white 154368206 Panel-control,black 154236701 Insert-control pnl,white 154236703 Insert-control pnl 154295701 Timer 154095701 Screw-timer,thread rolling ,(2)
- Page 4 Publication No. FDB635RF 5995352712 DOOR 04/01...
- Page 5 A = FDB635RF (FDB635RFS5) B = FDB635RF (FDB635RFR5) POS. NO 12 # 12 # # = Fast Moving Part * = Non-Illustrated Part DOOR PART NO DESCRIPTION 154365701 Spring-door,(2) 154325201 Spring linkage,(2) 154093301 Screw-arm assy,(4) 154325304 Arm Assy,LH 154325303 Arm Assy,RH...
- Page 6 Publication No. FDB635RF 5995352712 04/01...
- Page 7 A = FDB635RF (FDB635RFS5) B = FDB635RF (FDB635RFR5) POS. NO 24 # 25 # 28 # 28A* 29 # # = Fast Moving Part * = Non-Illustrated Part PART NO DESCRIPTION 154209301 Tub assy,w/frame parts 154211601 Strike-door 154211801 Gasket-tub 154200602...
-
Page 8: Motor & Pump
Publication No. FDB635RF 5995352712 MOTOR & PUMP 04/01... - Page 9 A = FDB635RF (FDB635RFS5) B = FDB635RF (FDB635RFR5) POS. NO 24A* 70 # # = Fast Moving Part * = Non-Illustrated Part MOTOR & PUMP PART NO DESCRIPTION 154247601 Heater 154106201 Nut-heater,(2) 154289801 Shield-heater terminal 154359701 Bracket-heater,(2) 154245901 Macerator 154245501...
- Page 10 Publication No. FDB635RF 5995352712 FRAME 04/01...
- Page 11 A = FDB635RF (FDB635RFS5) B = FDB635RF (FDB635RFR5) POS. NO # = Fast Moving Part * = Non-Illustrated Part FRAME PART NO DESCRIPTION 154359801 Valve-water 154208701 Brace-front 154322903 Toeplate-adjustable,black 154397203 Kickplate Assy,black ,w/ foam 5300808658 Screw,#8A x .375" ,black 154320101...
- Page 12 Publication No. FDB635RF 5995352712 RACKS 04/01...
- Page 13 A = FDB635RF (FDB635RFS5) B = FDB635RF (FDB635RFR5) POS. NO # = Fast Moving Part * = Non-Illustrated Part RACKS PART NO DESCRIPTION 154320904 Rack assy-lower 154295201 Basket-Silverware 154321107 Rack assy-upper 5304407064 Wheel & bushing assy,upper rack 5300809927 Cap-slide,(4) 154232701...
