PRODUCT NO.
FDB345LBB0
FDB345LBS0
MARKET
North America
SERVICE DATA SHEET # - 154415501
OWNER'S GUIDE # - 154417701
INSTALLATION INSTRUCTIONS # - 154427301
ENERGY GUIDE LABEL # - 154399002
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
BASE MODEL NO.
SERIES
FDB345LB
24" Built-in
FDB345LB
24" Built-in
Publication No.
5995367223
-EN/SERVICE /ECL
FACTORY PARTS CATALOG
COLOR
black
white
020301
©2002 Electrolux Home Products, Inc.
All rights reserved
821

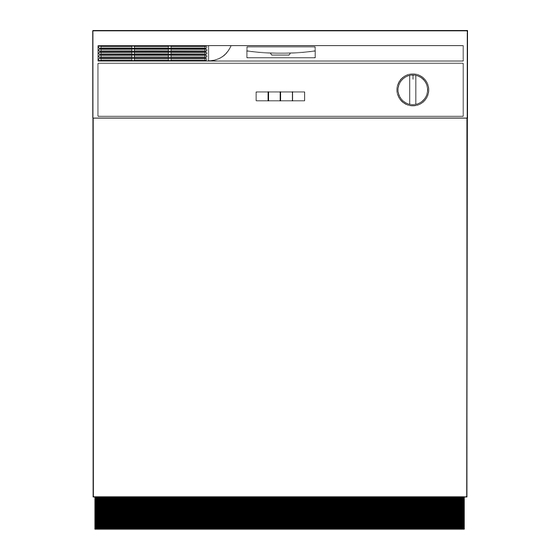

DISHWASHER
24" Built-In
DISHWASHER
Model No.
FDB345LB
Advertisement
Related Manuals for Frigidaire FDB345LB
Summary of Contents for Frigidaire FDB345LB
- Page 1 PRODUCT NO. BASE MODEL NO. FDB345LBB0 FDB345LB FDB345LBS0 FDB345LB MARKET North America SERVICE DATA SHEET # - 154415501 OWNER’S GUIDE # - 154417701 INSTALLATION INSTRUCTIONS # - 154427301 ENERGY GUIDE LABEL # - 154399002 ELECTROLUX HOME PRODUCTS, INC. P.O. Box 212378, Augusta, GA 30917...
-
Page 2: Control Panel
Publication No. FDB345LB 5995367223 CONTROL PANEL 03/02... - Page 3 A = FDB345LB (FDB345LBS0) B = FDB345LB (FDB345LBB0) POS. NO # = Fast Moving Part * = Non-Illustrated Part CONTROL PANEL PART NO DESCRIPTION 154368301 Panel,control ,white 154368303 Panel,control ,black 154417501 Insert,control panel ,white ,Lowes 154417503 Insert,control panel ,black ,Lowes...
- Page 4 Publication No. FDB345LB 5995367223 DOOR 03/02...
- Page 5 A = FDB345LB (FDB345LBS0) B = FDB345LB (FDB345LBB0) POS. NO 12 # 12 # # = Fast Moving Part * = Non-Illustrated Part DOOR PART NO DESCRIPTION 154345902 Spring,door ,(2) 154325201 Linkage,door spring ,(2) 154093301 Screw,arm assy ,(4) 154325304 Arm Assy,LH...
- Page 6 Publication No. FDB345LB 5995367223 03/02...
- Page 7 A = FDB345LB (FDB345LBS0) B = FDB345LB (FDB345LBB0) POS. NO 24 # 25 # 29 # # = Fast Moving Part * = Non-Illustrated Part PART NO DESCRIPTION 154209301 Tub assy,w/frame parts 154211601 Strike,door 154211801 Gasket,tub 154200602 Screw,10-16 x 3/8 ,hex...
-
Page 8: Motor & Pump
Publication No. FDB345LB 5995367223 MOTOR & PUMP 03/02... - Page 9 A = FDB345LB (FDB345LBS0) B = FDB345LB (FDB345LBB0) POS. NO 24A* 70 # # = Fast Moving Part * = Non-Illustrated Part MOTOR & PUMP PART NO DESCRIPTION 154247601 Heater 154106201 Nut,heater ,(2) 154289801 Shield,heater terminal 154359701 Bracket,heater ,(2) 154245501...
- Page 10 Publication No. FDB345LB 5995367223 FRAME 03/02...
- Page 11 A = FDB345LB (FDB345LBS0) B = FDB345LB (FDB345LBB0) POS. NO # = Fast Moving Part * = Non-Illustrated Part FRAME PART NO DESCRIPTION 154373301 Valve,water 154208701 Brace,front frame 154322901 Toeplate,adjustable ,white 154322903 Toeplate,adjustable ,black 154397201 Kickplate Assy,white ,w/foam 154397203 Kickplate Assy,black ,w/foam 5300808658 Screw,#8A x .375"...
- Page 12 Publication No. FDB345LB 5995367223 RACKS 03/02...
- Page 13 A = FDB345LB (FDB345LBS0) B = FDB345LB (FDB345LBB0) POS. NO # = Fast Moving Part * = Non-Illustrated Part RACKS PART NO DESCRIPTION 154319706 Rack assy,lower 154210401 Basket,silverware ,white 154319506 Rack assy-upper 5304407064 Wheel & bushing assy,upper rack 5300809927 Cap,slide ,(4)
