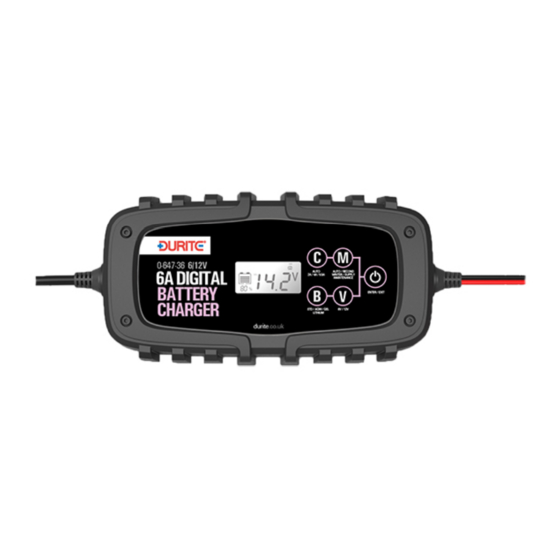

6/12V 6.5A Digital Battery Charger - NORM, AGM, STD, GEL
& Li-Ion
Part 0-647-36
GENERAL
Before using this unit please read these instructions carefully. Take special care to follow
the warnings and safety suggestions listed below. Keep these instructions for future refer-
ence. There are no user-serviceable parts within the unit, refer servicing to qualified service
personnel.
IMPORTANT SAFETY INSTRUCTIONS
1. This appliance is not intended for use by persons (including children) with reduced phys-
ical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person respon-
sible for their safety. Children should be supervised to ensure that they do not play with the
appliance.
2. Working in vicinity of a lead-acid battery is dangerous. Batteries generate explosive gases
during normal battery operation. For this reason, it is of utmost important that each time
before using your charger, you read this manual and follow the instruction exactly.
3. To reduce risk of battery explosion, follow these instructions and those published by the
battery manufacturer and manufacturer of any equipment you intend to use in vicinity of
battery. Review cautionary markings on these products and on engine
0-647-36-LEAF
www.durite.co.uk
Advertisement
Table of Contents
Related Manuals for Durite 0-647-36
Summary of Contents for Durite 0-647-36
- Page 1 6/12V 6.5A Digital Battery Charger - NORM, AGM, STD, GEL & Li-Ion Part 0-647-36 GENERAL Before using this unit please read these instructions carefully. Take special care to follow the warnings and safety suggestions listed below. Keep these instructions for future refer- ence.
- Page 2 Sparking may cause an explosion. 25. Always operate battery charger in an open well-ventilated area. 26. NEVER smoke or allow a spark or flame in the vicinity of the battery or engine. Batteries generate explosive gases! 0-647-36-LEAF www.durite.co.uk...
- Page 3 3. Please remove the plug from the AC power outlet before disconnect the battery. 4. Disconnect the black clamp and then disconnect the red clamp. (If the car battery is posi- tively grounded, first disconnect the red clamp and disconnect the black clamp). 0-647-36-LEAF www.durite.co.uk...
- Page 4 2. Current Selection Button: 2A, 4A, 6.5A, automatic selection. 3. Charging Mode Selection Button: Auto Mode, Recond Mode, Winter Mode, Supply Mode, Maintain Mode. 4. Enter /Exit Button: Start Charging, Stop Charging 5. Battery Type Selection: STD, AGM, GEL, LITHIUM 6. Voltage Selection Button: 6V,12V 0-647-36-LEAF www.durite.co.uk...
- Page 5 Charging battery to 100% capacity by Constant Voltage, and keep battery voltage with maximum level. 8. Diagnosis To check if battery has been fully charged 9. Fully charged The battery has been fully charged. LCD Status Display Key 0-647-36-LEAF www.durite.co.uk...
- Page 6 There is no output in the clamp when disconnected with battery. 6. Low-voltage activation The charger will enter the charge mode automatically when voltage of end of clamp was higher than DC 1.5V, the charger will not output if voltage is lower than DC 1.5V. 0-647-36-LEAF www.durite.co.uk...
- Page 7 Max input power……………………….20W ~ 120W Max charging voltage..………………..7.3V DC±0.2V / 14.6V DC±0.2V Rated output current…………………...6.5A Rated input voltage…………………….100VAC-240VAC IP Rating..........IP65 Working temperature………………….-10C - 40C Storage temperature…………………..-20C - 60C Dimensions……………………..……….L 250 x H 65 x W 111mm Weight…………………………………….0.910Kg Certificates..........CE 0-647-36-LEAF www.durite.co.uk...
