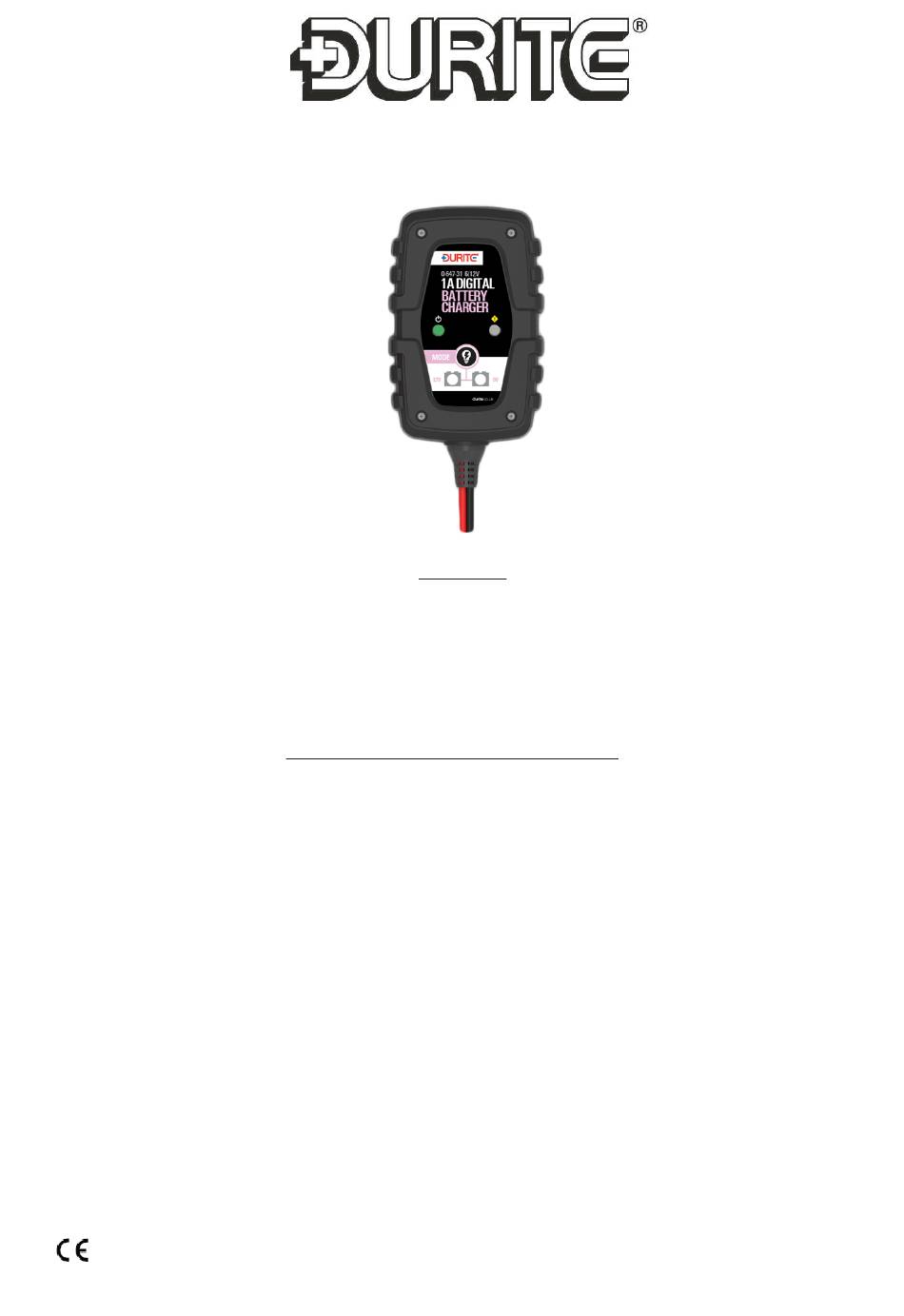

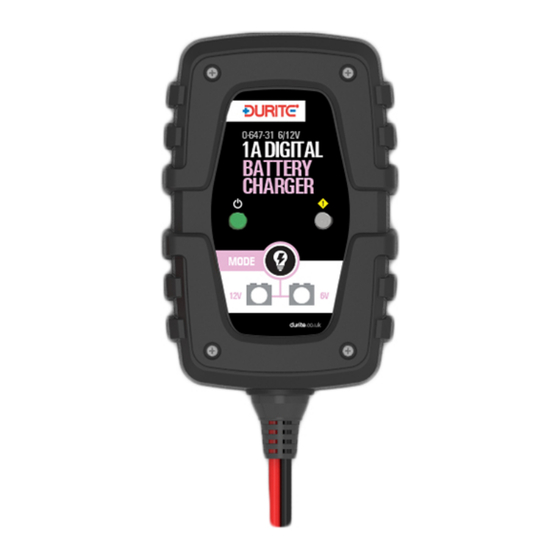

6/12V 1A Digital Battery Charger
Part 0-647-31
GENERAL
Before using this unit please read these instructions carefully. Take special care to follow
the warnings and safety suggestions listed below. Keep these instructions for future refer-
ence. There are no user-serviceable parts within the unit, refer servicing to qualified service
personnel.
IMPORTANT SAFETY INSTRUCTIONS
1. This appliance is not intended for use by persons (including children) with reduced phys-
ical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person respon-
sible for their safety. Children should be supervised to ensure that they do not play with the
appliance.
2. Working in vicinity of a lead-acid battery is dangerous. Batteries generate explosive gases
during normal battery operation. For this reason, it is of utmost important that each time
before using your charger, you read this manual and follow the instruction exactly.
3. To reduce risk of battery explosion, follow these instructions and those published by the
battery manufacturer and manufacturer of any equipment you intend to use in vicinity of
battery. Review cautionary markings on these products and on engine
4.Use the charger in door only, do not expose it to rain.
0-647-31-LEAF
www.durite.co.uk
Advertisement
Table of Contents
Related Manuals for Durite 0-647-31
Summary of Contents for Durite 0-647-31
- Page 1 6/12V 1A Digital Battery Charger Part 0-647-31 GENERAL Before using this unit please read these instructions carefully. Take special care to follow the warnings and safety suggestions listed below. Keep these instructions for future refer- ence. There are no user-serviceable parts within the unit, refer servicing to qualified service personnel.
- Page 2 Sparking may cause an explosion. 25. Always operate battery charger in an open well-ventilated area. 26. NEVER smoke or allow a spark or flame in the vicinity of the battery or engine. Batteries generate explosive gases! 0-647-31-LEAF www.durite.co.uk...
- Page 3 2. Please connect red clamp to positive of battery “+” , and connect black clamp to negative of battery “-” . finally connect to AC mains socket after all good connec- tion. 3. Please remove the plug from the AC power before disconnect the battery, then remove the clamp from battery. 0-647-31-LEAF www.durite.co.uk...
- Page 4 Power indicator not illuminated when charger is working Faulty LED indicator 6V or 12V indicator not illuminated when charger is working Faulty LED indicator 6V/12V can’t switched or not sensitive 1. The operation is improper when using the switch 2. Switch was damaged 0-647-31-LEAF www.durite.co.uk...
- Page 5 Battery Types..........Lead Acid Rated output voltage…………………………6V DC / 12V DC Maintained Battery Capacity.......1-70Ah Max input power……………………………...21W Max charging voltage..………………………7.2V DC±0.2V / 14.4V DC±0.2V Rated output current………………………..1A Rated input voltage…………………………..100VAC-240VAC IP Rating............N/A Working temperature……………………...…0C- 40C Storage temperature……………………..0C- 60C Dimensions………………………………...….12.50*6.90*7.20cm Weight……………………………………….….0.20Kg’s Certificates............CE 0-647-31-LEAF www.durite.co.uk...
