Summary of Contents for CS Instruments DS 52

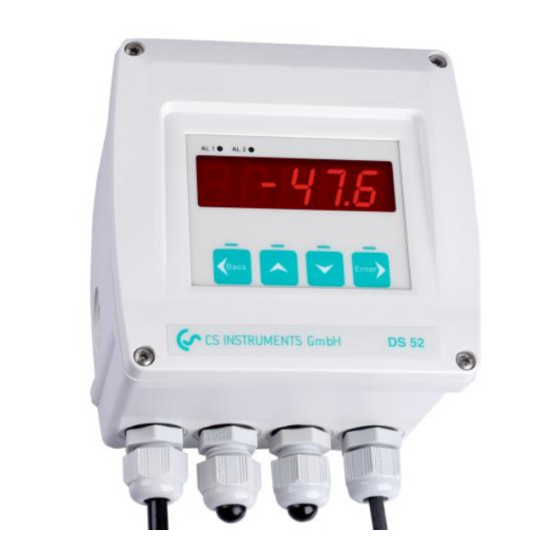

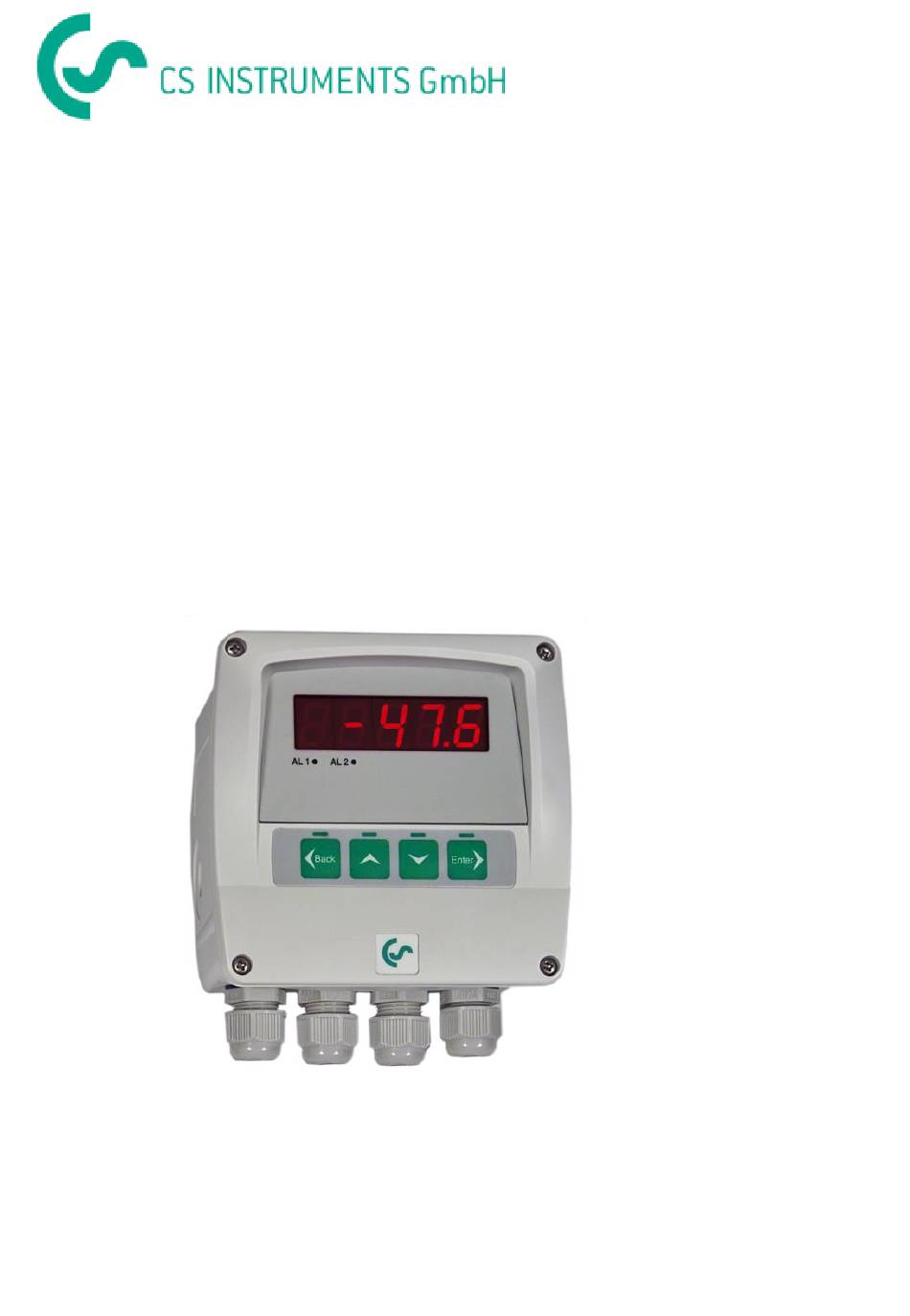

- Page 1 Instruction Manual Digital Display DS 52 in wall housing Order no. 0500 0008 for 0/4…20 mA sensors V1_03_2016...
-
Page 2: Table Of Contents
Table of content Page Introduction Safety instructions Short-form instruction DS 52 with 0/4…20 mA sensors Menu with all functions Lock operation menu, enter code, lock alarm values Calibration/adjustment Warranty Technical data Order information Notes Contact Introduction Dear customer, Thousands of customers buy our high standard products every year. There are a few good reasons for doing so: ... -
Page 3: Safety Instructions
Adjustments and calibrations should only be carried out by qualified employees from the measurement and control technology branch. We offer you to take back the instruments DS 52, which you would like to dispose of. The manufacturer cannot be held liable for any damage which occurs as a result of non-observance or non-compliance with these instructions. -
Page 4: Short-Form Instruction Ds 52 With 0/4
2. Short-form instruction DS 52 with 0/4…20 mA sensors Power supply and alarm connection: AC Power 230 VAC 50 Hz NC und COM are closed Attention! in case of: Mains voltage! - alarm exceeding - voltage drop - sensor break 2.1 Connection of CS Instruments sensors... - Page 5 Sensor A1 - 2 A1 - 1 230 VAC 1 2 3 4 5 6 CS Sensor Terminal connector M12 7 8 9 101112131415 FA 510 Sensor A1 - 2 A1 - 1 230 VAC 1 2 3 4 5 6 CS Sensor 7 8 9 101112131415 Terminal connector M12...
- Page 6 2.2 Connection of third party sensors DS 52 has one analogue sensor input for connection of sensors with 0/4…20 mA signal.The sensor input is configurated on our premises (according to the customers specification in the order). Sensors with 0/4…20 mA-current signal are connected as follows:...
- Page 7 2.3 Connection option alarm unit Sensor A1 - 2 A1 - 1 230 VAC 1 2 3 4 5 6 7 8 9 101112131415 DS 52 Base Light Modu grau grey schwarz / black Lampe / lamp braun / brown...
-
Page 8: Menu With All Functions
3. Menu with all functions Enter The operation is effected via 4 keys: as well as Back in order to access the menu/to confirm selection and The operation in detail: -45,0 currently measured value press for the duration of 3 seconds Enter ... -
Page 9: Lock Operation Menu, Enter Code, Lock Alarm Values
4. Lock operation menu/alarm values - enter code - scale sensor signal The instruments operation (adjustment of alarm values) can be locked by means of a code. Enter pressed at the same time for 3 seconds Factory setting: UCode = 0. The menu points are not protected by a UCODE code and can be used by everybody. -
Page 10: Calibration/Adjustment
- or if the serial number in the instrument has been changed, damaged or removed. The warranty time for DS 52 is 12 months, the warranty time of the accessories is 6 months. Warranty services do not extend the warranty time. -
Page 11: Technical Data
7. Technical data Housing dimensions 118 mm x 92 mm x 133 mm Display LED red, 7 segments, height: 13 mm, 5 digits, 2 LED for switching outputs (alarm relays) Keypad 4 keys: Enter, Back, Up, Down 1 x analogue input for sensors with 0…20 mA or Sensor input 0/4…20 mA signal. -
Page 12: Order Information
8. Order information Description Order no. DS 52 - LED display in wall housing (118 x 92 x 133 mm), Supply: 230 V. Analogue sensor input for sensors with 0500 0008 4…20 mA or 0…20 mA signals. 2 alarm relays (change-over contact 250 VAC, max. -
Page 13: Notes
Notes V1_03_2016... -
Page 14: Contact
Contact Advice Sale Service Sales office North Germany CS Instruments GmbH Am Oxer 28c 24955 Harrislee +49 (0) 461 – 700 2025 Phone +49 (0) 461 – 700 2026 E-Mail info@cs-instruments.com www.cs-instruments.com Sales office South Germany CS Instruments GmbH Zindelsteiner Straße 15...
