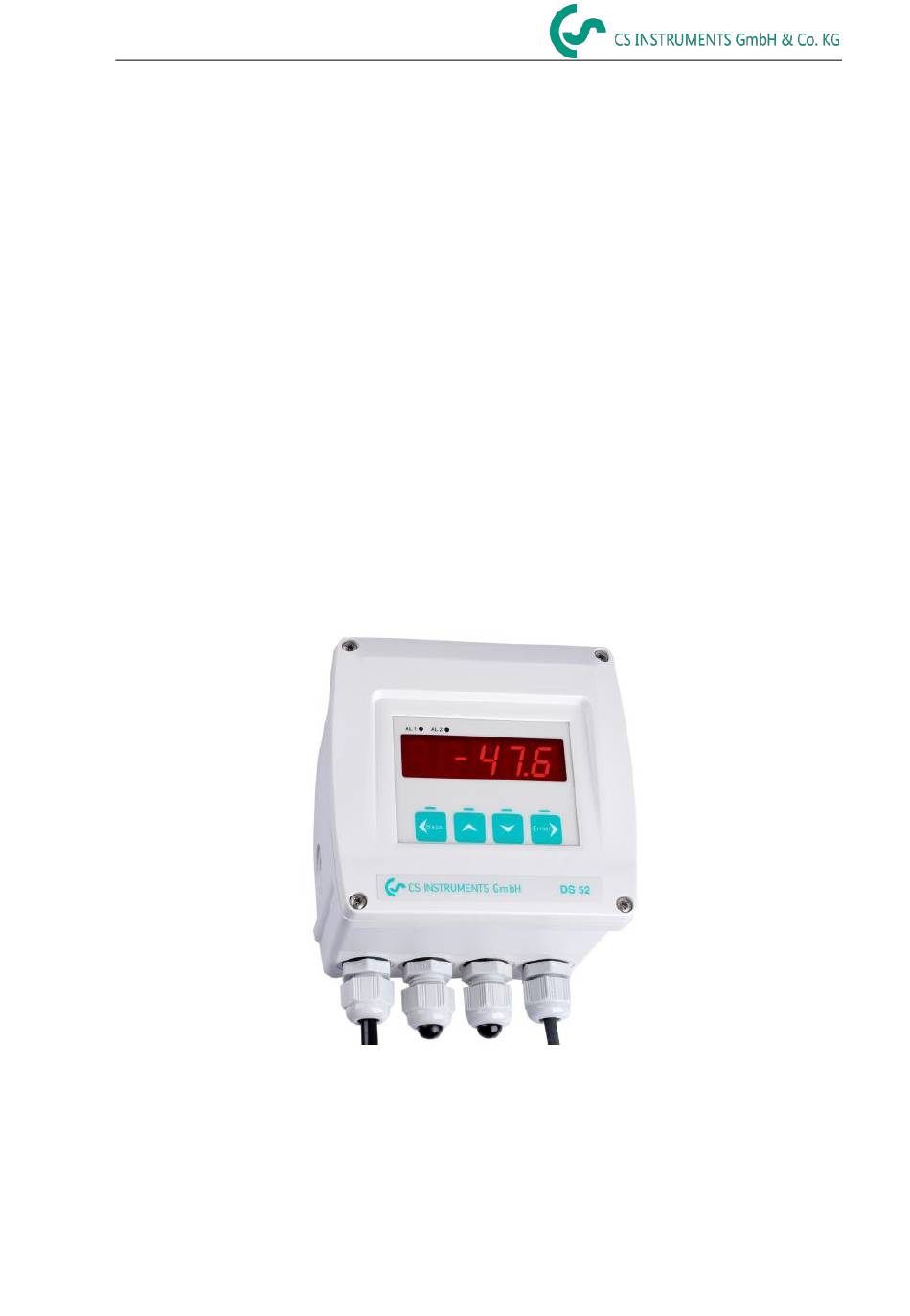

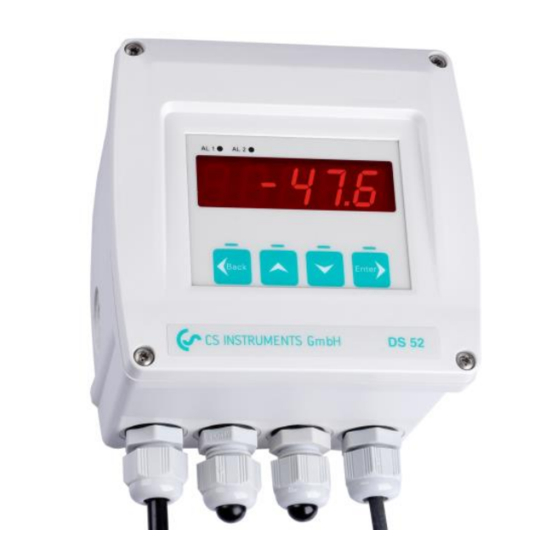

- Page 1 Instruction Manual Digital Display DS 52 in wall housing Order-no: 0500.0009 for 0/4…20 mA sensors V1.06 EN...
-
Page 2: Table Of Contents
Table of content Page Introduction Safety instructions Short-form instruction DS 52 with 0/4…20 mA sensors Menu with all functions Lock operation menu, enter code, lock alarm values Calibration/adjustment Warranty Technical data Order information Contact Introduction Dear customer, Thousands of customers buy our high standard products every year. There are a few good reasons for doing so: •... -
Page 3: Safety Instructions
Adjustments and calibrations should only be carried out by qualified employees from the measurement and control technology branch. We offer you to take back the instruments DS 52, which you would like to dispose of. The manufacturer cannot be held liable for any damage which occurs as a result of non-observance or non-compliance with these instructions. -
Page 4: Short-Form Instruction Ds 52 With 0/4
10. Short-form instruction DS 52 with 0/4…20 mA sensors Power supply and alarm connection: Supply Supply 110VAC / 230 VAC (50/60 Hz) 24 V DC NC und COM are closed Attention! in case of: Mains voltage! - alarm exceeding - voltage drop... - Page 5 Sensor A1 - 2 A1 - 1 Supply 1 2 3 4 5 6 CS Sensor Terminal connector M12 7 8 9 10 11121314 15 FA 510 Sensor A1 - 2 A1 - 1 Supply 1 2 3 4 5 6 CS Sensor 7 8 9 10 11121314 15 Terminal connector M12...
- Page 6 10.2 Connection of third party sensors DS 52 has one analogue sensor input for connection of sensors with 0/4…20 mA signal. The sensor input is configured on our premises (according to the customer’s specification in the order). Sensors with 0/4…20 mA-current signal are connected as follows:...
-
Page 7: Menu With All Functions
11. Menu with all functions Enter The operation is effected via 4 keys: as well as Back in order to access the menu/to confirm selection and The operation in detail: -45,0 currently measured value press for the duration of 3 seconds Enter ... -
Page 8: Lock Operation Menu, Enter Code, Lock Alarm Values
Lock operation menu/alarm values - enter code - scale sensor signal The instruments operation (adjustment of alarm values) can be locked by means of a code. Enter pressed at the same time for 3 seconds Factory setting: UCode = 0. The menu points are not protected by a UCODE code and can be used by everybody. -
Page 9: Calibration/Adjustment
- or if the serial number in the instrument has been changed, damaged or removed. The warranty time for DS 52 is 12 months; the warranty time of the accessories is 6 months. Warranty services do not extend the warranty time. -
Page 10: Technical Data
16. Order information Description Order no. DS 52 - LED display in wall housing (118 x 92 x 133 mm), Supply: 230 V. Analogue sensor input for sensors with 0500 0009 4…20 mA or 0…20 mA signals. 2 alarm relays (change-over contact 250 VAC, max. -
Page 11: Contact
17. Contact Sales Office North CS Instruments GmbH & Co.KG Gewerbehof 14 24955 Harrislee Tel. +49 (0) 461 – 80 71 50-00 Fax +49 (0) 461 -80 71 50-15 E-Mail info@cs-instruments.com www.cs-instruments.com Sales Office South CS Instruments GmbH & Co.KG Zindelsteiner Straße 15...
