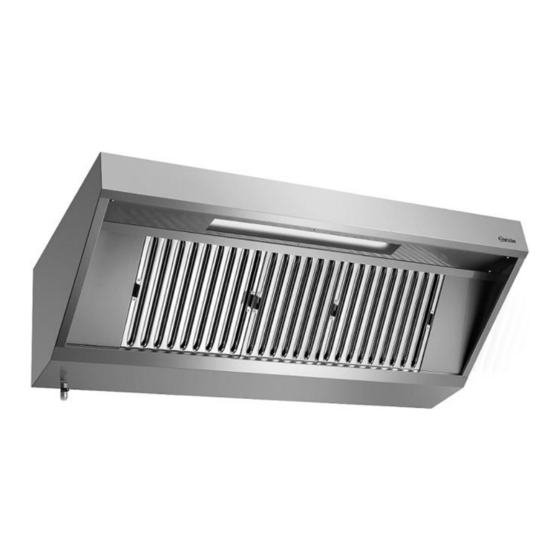

Summary of Contents for Bartscher 700-W1600

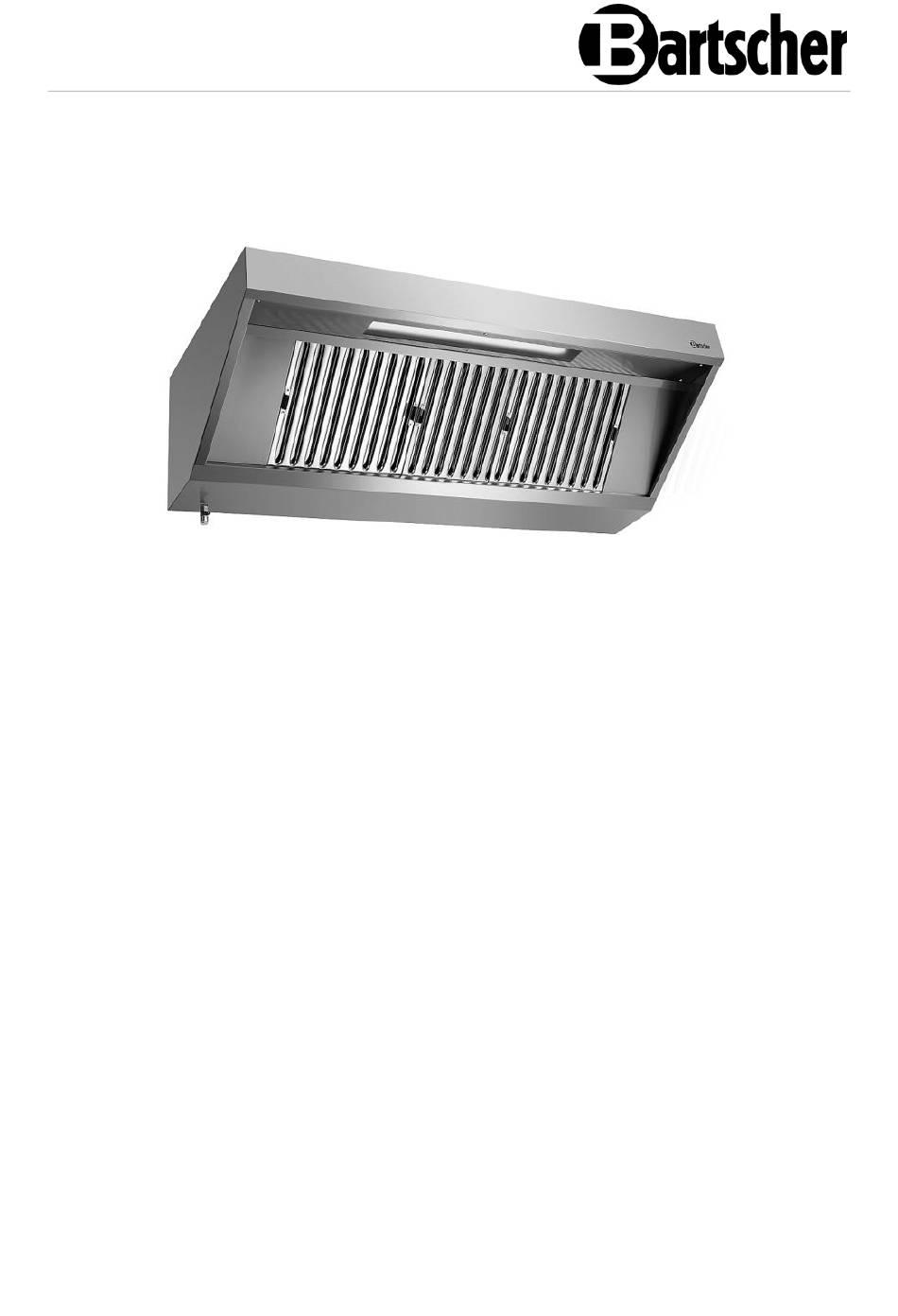

- Page 1 272107 - 272127 - 272147 - 272167 - 272187 - 272207 - 272109 - 272129 - 272149 - 272169 - 272179 - 272189 - 272209 - 272229...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2020-09-30...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 5 Unintended Use ..................5 General information ..................6 Liability and Warranty ................6 Copyright Protection ................6 Declaration of Conformity ................ 6 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
-
Page 7: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Venting and exhausting steams and vapours. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 8: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 9: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 10: Technical Data
1050 1200 x 700 x 450 700-W1200 272147 1230 1400 x 700 x 450 700-W1400 272167 1400 1600 x 700 x 450 700-W1600 272187 1600 1800 x 700 x 450 700-W1800 272207 1800 2000 x 700 x 450 700-W2000 272109... -
Page 11: Functions Of The Appliance
Technical Data Version / Characteristics • Material: High-grade stainless steel; • Operating mode: Exhaust air • Mounting type: Wall mounting • Flame protection filter: Type A • Filter material: Stainless steel • Protection class: IP54 • Connected load: 0.008 kW / 230 V~ / 50–60 Hz •... -
Page 12: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. LED lighting 2. Housing 3. Flame protection filter holder 4. Flame protection filter 5. Partition 6. Drain tap 10 / 22 272107... -
Page 13: Installation And Operation
Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. - Page 14 Installation and operation • When installing extractor hoods over gas or open-flame appliances, provide for sufficient air inflow. • Maintai n s uffici ent cl ear ance from both si des and the bac k of the applianc e against walls or other obj ects to avoi d expos ur e to heat. Shoul d this not be pos sibl e, i nstall pr otecti ve devices, for exampl e fil ms made of heat-resis tant material . Wall Mounting The extractor hood must be located over an appliance (e.g.
- Page 15 Installation and operation 1. Using information provided in the figure, mark points on the wall for boreholes. 2. Bore the holes. 3. Insert the studs into the bored holes. 4. Screw the appropriate number of installation brackets to the wall. 5.
- Page 16 Installation and operation Fig. 4 Connection to Exhaust Air Installation In extractor hoods without motors, the flow of exhausted air is controlled by means of an exhaust air installation, mounted behind the extractor hood. Pay attention to notes contained in the instruction manual of that installation. Extractor hoods without motors are delivered without air outflow opening, thus they may be adapted to any needs.
- Page 17 Installation and operation Flame Protection Filters Installation 1. Unpack the delivered flame protection filters and, if needed, partitions. Flame protection filters are fitted in a specially formed fat collection element. The internal profile of the extractor hood is formed in a way making it possible for condensate/fat to accumulate in the fat collection channel and are delivered to the drain tap.
-
Page 18: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... -
Page 19: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. -
Page 20: Maintenance
Cleaning and Maintenance Emptying Grease Collection Channel 1. Empty the grease collection channel daily. 2. Open the drain tap and drain entire fat/condensate into a suitable container. 3. Close the drain tap. Maintenance ATTENTION! All maintenance works with the appliance must be performed by qualified personnel only. -
Page 21: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. Error Possible Cause Solution Appliance is not Appliance is not connected Connect the appliance venting vapours... -
Page 22: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
