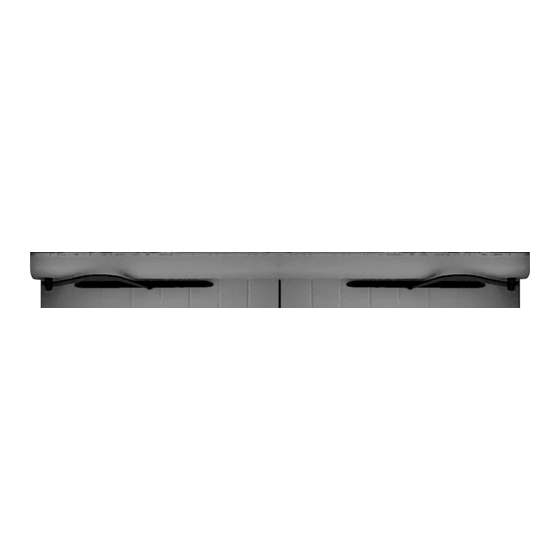

- Page 1 YSLO FLEX RTS 2P Installation guide (2 panels)
- Page 2 Insatallation guide (2 panels) page 3 Caution! Note...
- Page 3 Yslo Flex RTS 2P Copyright © 2013 - 2014 Somfy SAS. All rights reserved.
- Page 4 Yslo Flex RTS 2P TRANSLATED INSTRUCTIONS These instructions apply to all YSLO FLEX RTS 2P drive, the different versions of which are available in the current catalogue. Field of application MVA drive are designed to drive all types of swinging shutters.
-
Page 5: Table Of Contents
Yslo Flex RTS 2P is equipped with a battery that allows it to function autonomously in the event of a power outage (20 operations or 5 days). In this case, Yslo Flex RTS 2P beeps during the movements for your information. -
Page 6: Contents
Smoove O/C RTS control point x 1 + faceplate x 1 Pop rivets x 4, for PVC or Aluminium shutters Stoppers x 2 M10 screws x 2 + Screw covers x 2 + Washers x 2 Copyright © 2013 - 2014 Somfy SAS. All rights reserved. - Page 7 Yslo Flex RTS 2P Copyright © 2013 - 2014 Somfy SAS. All rights reserved.
-
Page 8: Safety
Any use outside the sphere of application defined by Somfy is prohibited. This will invalidate the warranty and release Somfy from all liability, as will any failure to comply with the instructions given herein. Never begin installing before checking the compatibility of this product with the associated devices and accessories. -
Page 9: Installing Yslo Flex Rts 2P
You can watch the installation video on the website at www.somfypro.fr. 1. Preparing the shutter Yslo Flex RTS 2P must be installed in a location that is sheltered from inclement weather. Yslo Flex RTS 2P is designed only for lintel installation. -
Page 10: Positioning Yslo Flex Rts 2P
Yslo Flex RTS 2P Before installing Yslo Flex RTS 2P, the swing shutter must be capable of being opened or closed without difficulty and the lintel must be level in width and depth. 2. Positioning Yslo Flex RTS 2P 1) Close the shutter... -
Page 11: Choosing The Cable Exit
The cable guide x must be used to guarantee the electrical safety and integrity of the cable. The power cable must not be cut between the red label and Yslo Flex RTS 2P. Copyright © 2013 - 2014 Somfy SAS. All rights reserved. -
Page 12: Fixing Yslo Flex Rts 2P
3) Remove the electromechanical module d and drill the holes. 4) Slide the alignment rails f on the back of the electromechanical module d while engaging them in the angle brackets of the module. Copyright © 2013 - 2014 Somfy SAS. All rights reserved. - Page 13 7) Fit the mechanical module g on the second bracket while covering the alignment rails. 8) Mark holes for the mechanical module g on the motor side. Keep it as parallel as possible to the pencil line before making holes. Copyright © 2013 - 2014 Somfy SAS. All rights reserved.
-
Page 14: Wiring
2) Connect the red wire of the battery to the (+) terminal of the battery on the control board 3) Connect the black wire of the PCB to the (-) terminal of the battery: Yslo Flex RTS 2P will begin to beep. -
Page 15: Checking The Wiring
4) Press the ON/OFF button to turn on or turn off the control point. Do not press the sensitive side of the control point against your hand to avoid triggering accidental orders. BIP... BIP Copyright © 2013 - 2014 Somfy SAS. All rights reserved. -
Page 16: Checking And Adjusting The Rotation Direction
If the output shafts rotate in the closing direction, the rotation direction is not correct. 1) Press and hold the button no. 3 on the Yslo Flex RTS 2P board: - An output shaft moves back and forth with a beep: the rotation direction has been modified. -
Page 17: Fixing The Stoppers On The Side
Yslo Flex RTS 2P Yslo Flex RTS 2P is equipped with obstacle detection and stops against the stoppers. 10.2. Fixing the stoppers on the side • Fix the breakable stoppers on the wall or on the panel and then insert the buffer. -
Page 18: Fixing The Arms And Sliders
2) Measure the width ( ) of the internal panels with shutters Internal closed 3) Cut the sliders to the width of the panels ( ) minus 55 mm. - 5 5 m m Copyright © 2013 - 2014 Somfy SAS. All rights reserved. -
Page 19: Installing The Arms
In the case of wooden swing shutters, to avoid the risk of the sliders being pulled out, the choice of screws is under the sole responsibility of the installer. Copyright © 2013 - 2014 Somfy SAS. All rights reserved. -
Page 20: Checking And Resetting The Panels
Aluminium shutter Wooden shutter Resin shutter Max level Yslo Flex RTS 2P is factory set to level 2. To modify it, follow the steps below: 1) Place the panels in half-open position. 2) Briefly press the buttons on the RTS control... -
Page 21: Additional Settings
Refer to the corresponding guide. 16.4. Signalling movement Yslo Flex 2 RTS has a Buzzer to warn the user: Somfy recommends that you activate this function to signal the movement of the swing shutter (e.g. shutter on the ground floor and presence of children) and prevent accident risks. -
Page 22: Obstacle Detection
Frost protection functions in a similar way to obstacle detection: if the motor detects any resistance, it stops automatically. 18. Tips and recommendations 18.1. Do you have a question about Yslo Flex RTS 2P? Observations Possible causes Solutions The motor is supplied with The battery is not connected. -
Page 23: Maintenance Operation Requiring The Housing To Be Unclipped
Restoring the original configuration deletes the change in priority panel, all the control points as well as the saved sensors and favourite position, and the buzzer is deactivated. • Press and hold the button no. 4 on the Yslo Flex RTS 2P board: - The priority panel makes a first back-and-forth movement with a beep and then a second back-and- forth movement with 2 beeps a few moments later. - Page 24 Somfy SAS 50 avenue du Nouveau Monde F - 74300 CLUSES www.somfy.com...
