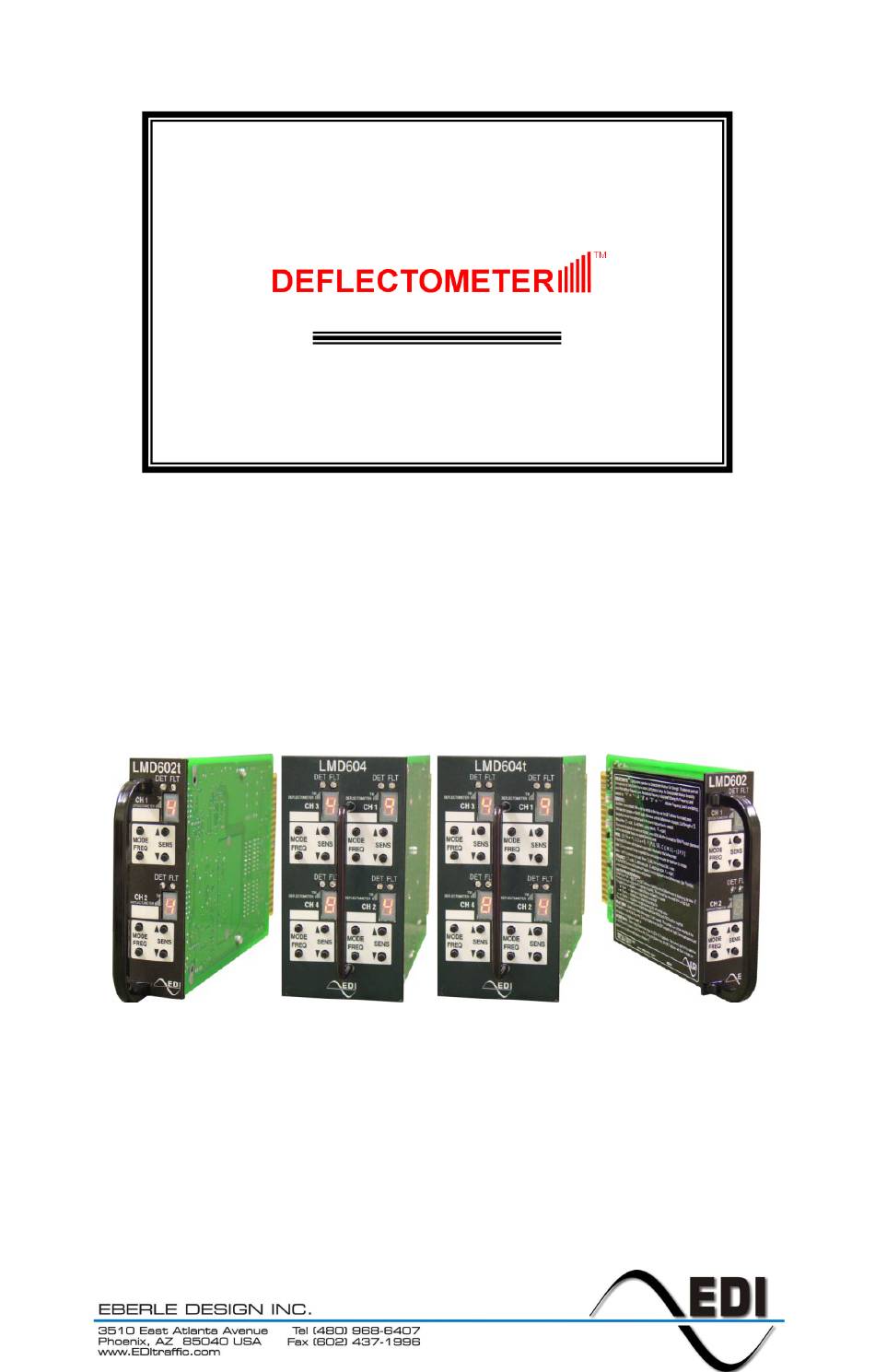

- Page 1 LMD602 and LMD604 Series Inductive Loop Monitor Operations Manual THIS MANUAL CONTAINS TECHNICAL INFORMATION FOR THE LMD602, LMD602T, LMD604, and LMD604T SERIES INDUCTIVE LOOP MONITOR. REVISION: MARCH 2012 pn 888-060X-001...
- Page 2 THE LMD602 AND LMD604 SERIES IS DESIGNED AND MANUFACTURED IN THE USA BY EBERLE DESIGN INC. PHOENIX, ARIZONA EDI IS CERTIFIED TO ISO 9001:2008 QUALITY SYSTEMS STANDARDS. INFORMATION CONTAINED HEREIN IS PROPRIETARY TECHNICAL INFORMATION OF EBERLE DESIGN INC. PUBLICATION, REPRODUCTION OR USE IN WHOLE OR PART IS NOT PERMITTED EXCEPT UNDER TERMS AGREED UPON IN WRITING.
-
Page 3: Table Of Contents
Table of Contents Section 1 GENERAL ....................... 1 1.1 Description........................1 1.2 Overview ........................1 1.3 DEFLECTOMETER® Feature ..................1 Section 2 Installation and Adjustments ................3 2.1 Set the Sensitivity Level ....................3 2.1.1 Adjusting Sensitivity Using the DEFLECTOMETER (Recommended) .... 3 2.1.2 Adjusting Sensitivity Directly ................ -
Page 4: Section 1 General
EDI Web Site; www.EDItraffic.com. 1.3 DEFLECTOMETER® FEATURE The LMD Series Loop Monitor introduces a concept to the inductive loop detector field that revolutionizes the process of installing and programming a loop detector. The new user interface of the LMD Series provides the feedback necessary to the signal technician to quickly and accurately program the parameters of the detector exactly to the loop plus lead- in system characteristics. - Page 5 LMD602 and LMD604 Series Operations Manual percent of the nominal inductance. Each type of fault is signified by the fault indicator emitting a different flash sequence. This information can greatly assist the user in the diagnosis of loop related problems. The unit will detect inductance changes as small as 0.010% ∆L/L.
-
Page 6: Section 2 Installation And Adjustments
Sensitivity Level setting. 2.1.2 ADJUSTING SENSITIVITY DIRECTLY The LMD Series offers nine levels of sensitivity (1 to 9). The Sensitivity Level can be manually set to any desired level by pressing the SENS or SENS front panel buttons Eberle Design Inc. -
Page 7: Dynamic Deflectometer Display Operation
2.1.1, with the DEFLECTOMETER display remaining in the Call Strength mode. Pressing the SENS or SENS button when the LMD Series is not in the Call state (DEFLECTOMETER = 0) will display and modify the Sensitivity Level directly as described in section 2.1.2. -
Page 8: Call Mode (C)
LMD602 and LMD604 Series Operations Manual 2.2.5 CALL MODE (C) The Call mode will set the channel output to the Call state (True). This mode can be used to provide a continuous Call state to the Controller Unit regardless of the state of the detection zone. -
Page 9: Extend Always (Default)
Frequency Level High 2.6 LOOP FAULT MONITORING The LMD Series Loop Monitor continuously checks the integrity of the loop. The system is able to detect open circuit loops, shorted loops, or sudden changes in inductance exceeding 25% of the nominal inductance. -
Page 10: Current Fault
LMD602 and LMD604 Series Operations Manual 2.6.1 CURRENT FAULT If a fault is detected, both the DET (Red) and FLT (Yellow) LEDs continuously emit a sequence of flashes and the DEFLECTOMETER will display the letter “F”. Each type of fault is identified by a different flash sequence followed by a one second pause: Flash Sequence Fault 1 flash... -
Page 11: Section 3 Loop Installation
LMD602 and LMD604 Series Operations Manual Section 3 Loop Installation The typical sensing height is 2/3 of the shortest leg of a loop (in feet). Therefore a 4’ x 8’ loop typically has a detection height of 2.6’. The inductance of a conventional four-sided loop can be estimated using the formula: L = P x (T + T) / 4 Where L = Loop Inductance in microHenries... - Page 12 LMD602 and LMD604 Series Operations Manual circumference to prevent the loop wire from rising up while the sealant is poured and curing. Many different types of loop sealant are now available. Single part types are the easiest to apply since no mixing is required, but they also tend to be more expensive in terms of linear feet of saw slot filled.
-
Page 13: Section 4 Specifications
LMD602 and LMD604 Series Operations Manual Section 4 Specifications 4.1 MECHANICAL Height ..................4.50 inches LMD602 (T) Width ..............1.14 inches LMD604 (T) Width ..............2.34 inches Depth (excluding handle) ............6.875 inches 4.2 ENVIRONMENTAL Storage Temperature Range ........... -45 to +85 Operating Temperature Range .......... -
Page 14: Response Timing
LMD602 and LMD604 Series Operations Manual withstand the discharge of a 10uF capacitor charged to 2,000V across the loop inputs or between a loop input and Earth Ground for each channel. The transformer isolation allows operation with a loop which is grounded at a single point. 4.6 RESPONSE TIMING These tables assume that all channels are set to the same Sensitivity Level. -
Page 15: Lmd604(T) Connector Pin Assignments
LMD602 and LMD604 Series Operations Manual Between M/11 and N/12 Between E/5 and F/6 4.8 LMD604(T) CONNECTOR PIN ASSIGNMENTS Function Function Logic Ground Channel 1 Timing Control (LMD604T) Detector Unit DC Supply Channel 2 Timing Control (LMD604T) External Reset Channel 3 Timing Control (LMD604T) Channel 1 Loop Input Channel 1 Redundant Loop Input Channel 1 Loop Input...
