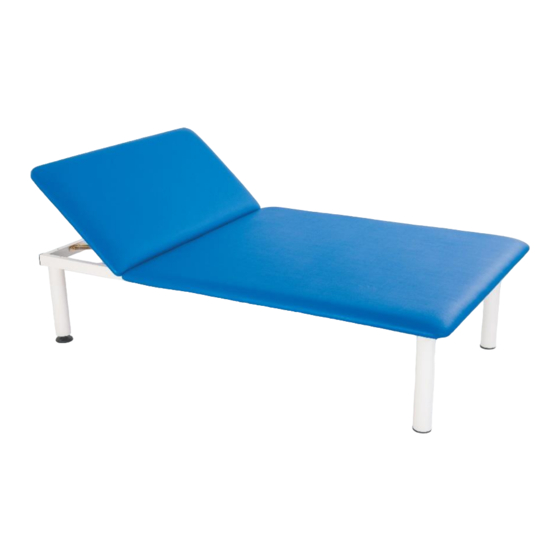

- Page 1 Rev.05 09/2020 USE AND MAINTENANCE MANUAL ADE.2 COUCH BOBATH SERIES ADE.2 COUCH MODELS Description Code ADE.2 116040...
- Page 2 Table of contents INTRODUCTION p. 3 SAFETY – WARNINGS – WARRANTY p. 4 PACKAGING – UNPACKING p. 5 PRODUCT LABEL AND SYMBOLS p. 6 TECHNICAL SPECIFICATIONS p. 7 WARNINGS – MAINTENANCE p. 8 CLEANING p. 9 SPARE PARTS p. 10 INSPECTION RECORD SHEET p.
- Page 3 90 % - temperature -10°C ÷ +50°C – Clean place. WARNING! Thoroughly read the manual before use. FISIOTECH SRL refuses any responsibility and is not liable in case any damage to people and/or goods caused by the improper use of the couch, by negligent or not-qualified staff or by non compliance with these instructions occurs.
- Page 4 WARNING! Do not use the couch: Beyond its declared maximum safe working load. On unstable floors or near inclined floors, steps, etc. If it has been tampered with or modified. In a potentially explosive atmosphere where a fire hazard or corrosion may occur, or exposed to the weather.
- Page 5 The packaging consists of a cardboard box, with a lid and a bottom. The box is closed with iron staples and placed on a pallet especially designed for this kind of box. The box is secured to the pallet with plastic straps. WARNING! The couch is heavy (about 90 kg) and, above all, bulky.
- Page 6 Manufacturer Product Code Serial Number Date of manufacture Max working load Warning Temperature limit Humidity limitation Keep away from sunlight and heat sources Keep away from rain Read the instructions This symbol on a product means that it should not be thrown with regular waste, but disposed of following the laws on recycling/disposal in force in your country/region.
- Page 7 Fixed height: 50 cm. Dimensions 200 X 120 X 50 cm. Headrest angle +60° adjustable with “rastofix”. Maximum static working load 200 kg, evenly distributed. Powder-coated steel frame. 4 cm-thick polyurethane foam fireproof padding. Density: 30 kg/m³. ...
-
Page 8: Maintenance
WARNING The professional should never leave the patient unattended to prevent falls. The manufacturer is not liable for any damage to people and/or goods caused by negligent and/or not-qualified personnel. The headrest can be adjusted with “rastofix” rack. Raise headrest until reach desired inclination. - Page 9 The use of disinfectants is advised in order to disinfect hands and other parts of the body that came into contact with the patient or other surfaces. Cleaning the upholstery: Clean with a damp soft cloth with a neutral detergent solution, rinse with clean water. WARNING! ...
- Page 10 CODE DESCRIPTION MIM1130301 Complete padding for ADE.2 couch OUR COLOURS Metal frame Textured RAL 9001 cream Upholstery Beige, yellow, orange, burgundy, green, blue, grey, and black 10 of 11...
- Page 11 INSPECTION RECORD SHEET DEVICE MODEL / CODE: INSTALLATION DATE SERIAL No. ……………………………………… ……………………… ……………………. Inspection Maintenance Name of the inspector Signature Date 11 of 11...
