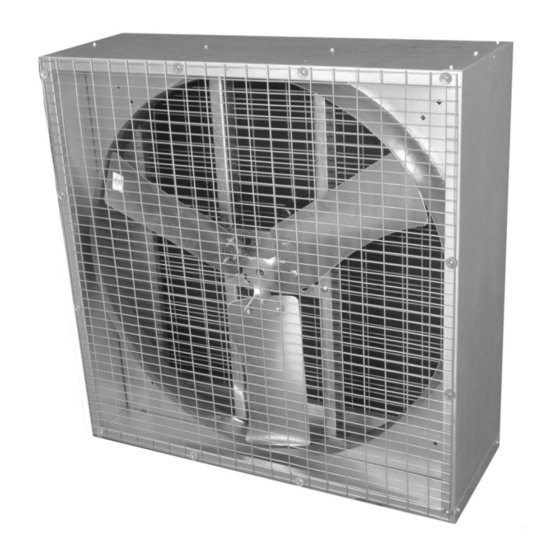

Galvanized Box Fans—Direct Drive
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain
the equipment described within this manual. Carefully follow all safety information.
Save this manual for future reference.
Model # _______________________________
Purchase Date: _________________________
Instruction Manual
Model Numbers Covered:
116192, 115237, 116189
Date: 04/27/18
Form: HV0022 Version 3
Advertisement
Table of Contents
Related Manuals for FarmTek 116192
Summary of Contents for FarmTek 116192
- Page 1 Galvanized Box Fans—Direct Drive Instruction Manual Model Numbers Covered: 116192, 115237, 116189 Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the equipment described within this manual. Carefully follow all safety information. Save this manual for future reference.
- Page 2 OSHA requires OSHA compliant guards when fan is installed within 7ft of the floor or working level. Specifications Dimension (In.) Rough-in Opening Model Prop Dia. Height Width Ship. Wt Ship. Dims. 116192 36” 40 1/8 40 3/4 40 3/4 44x18x47 116189 36” 40 1/8...
- Page 3 0.05" 0.10" 0.15" 0.00" 0.05" 0.10" 0.15" 0.00" Model HP F.L.A. Volt. Ph Hz 116192 1/2 5.2/2.8-2.6 115/208-230 1 11,077 10,217 9,381 8,557 21.1 18.6 16.4 14.5 116189 1/2 5.2/2.8-2.6 115/208-230 1 10,525 9,698 8,910 8,130 20.6 18.2 15.9 115237 11.0/5.5...
- Page 4 Repair Parts Illustration Note: Aluminum discharge shutter not shown. Ref No Description 116192 116189 115237 Intake & discharge screen 36SCREEN-N 36SCREEN-N 48SCREEN-N 2,1 Clip for screen CLIP-SC CLIP-SC CLIP-SC Motor B370-8E B370-8E A750-8VE Upright frame piece 6(A,B,C,D) Side panel piece...
