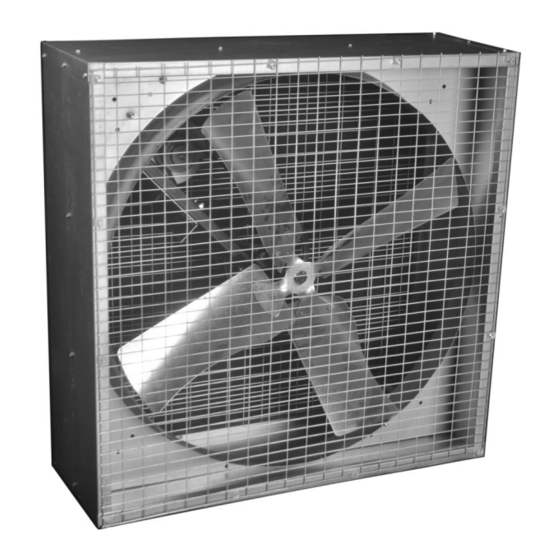

Galvanized Box Fans—Belt Drive
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain
the equipment described within this manual. Carefully follow all safety information.
Save this manual for future reference.
Model # _______________________________
Purchase Date: _________________________
Instruction Manual
Model Numbers Covered:
115236, 116188, 116193
Date: 04/27/18
Form: HV0021 Version 3
Advertisement
Table of Contents
Related Manuals for FarmTek 115236
Summary of Contents for FarmTek 115236
- Page 1 Galvanized Box Fans—Belt Drive Instruction Manual Model Numbers Covered: 115236, 116188, 116193 Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the equipment described within this manual. Carefully follow all safety information. Save this manual for future reference.
- Page 2 OSHA requires OSHA compliant guards when fan is installed within 7ft of the floor or working level. Specifications Dimension (In.) Rough-in Opening Model Prop Dia. Height Width Ship Wt Ship. Dims. 115236 36” 40 1/8 40 3/4 40 3/4 44x22x47 116188 48” 52 1/8...
- Page 3 Motor 0.00" 0.05" 0.10" 0.15" 0.00" 0.05" 0.10" 0.15" Model HP F.L.A. Volt. Ph Hz 0.00" 115236 1/2 4.8/2.4 115/230 1725 10,850 9,990 9,020 7,200 18.4 16.5 14.6 11.4 116188 9.4/4.5-4.7 115/208-230 1 1725 19,608 18,228 16,773 15,347 21.6 19.5 17.3...
- Page 4 Repair Parts Illustration Note: Aluminum discharge shutter not shown. Ref No Description 115236 116188 116193 Intake & Discharge screen 36SCREEN-N 48SCREEN-N 48SCREEN-N 2, 1 Motor A370-4CE A750-4CE(ID) A750-4CE(ID) Motor mounting plate 4(A,B,C,D) Side housing panels Large drive pulley AL94 AL94...
