Set-Up; Checking The Scope Of Delivery; Dimensions; Installation Site - Glowworm EASICOM 3 Installation And Maintenance Instructions Manual

6

Set-up

6.1

Checking the scope of delivery

▶
Check that the scope of delivery is complete and intact.
6.1.1 Scope of delivery
Number Designation
Heat generator
1
Unit mounting bracket
1
1 Flue adapter
1 Gas stopcock
1 Gas pipe
1 Condensate discharge hose
Mounting template
1
1 Enclosed documentation
10
6.2

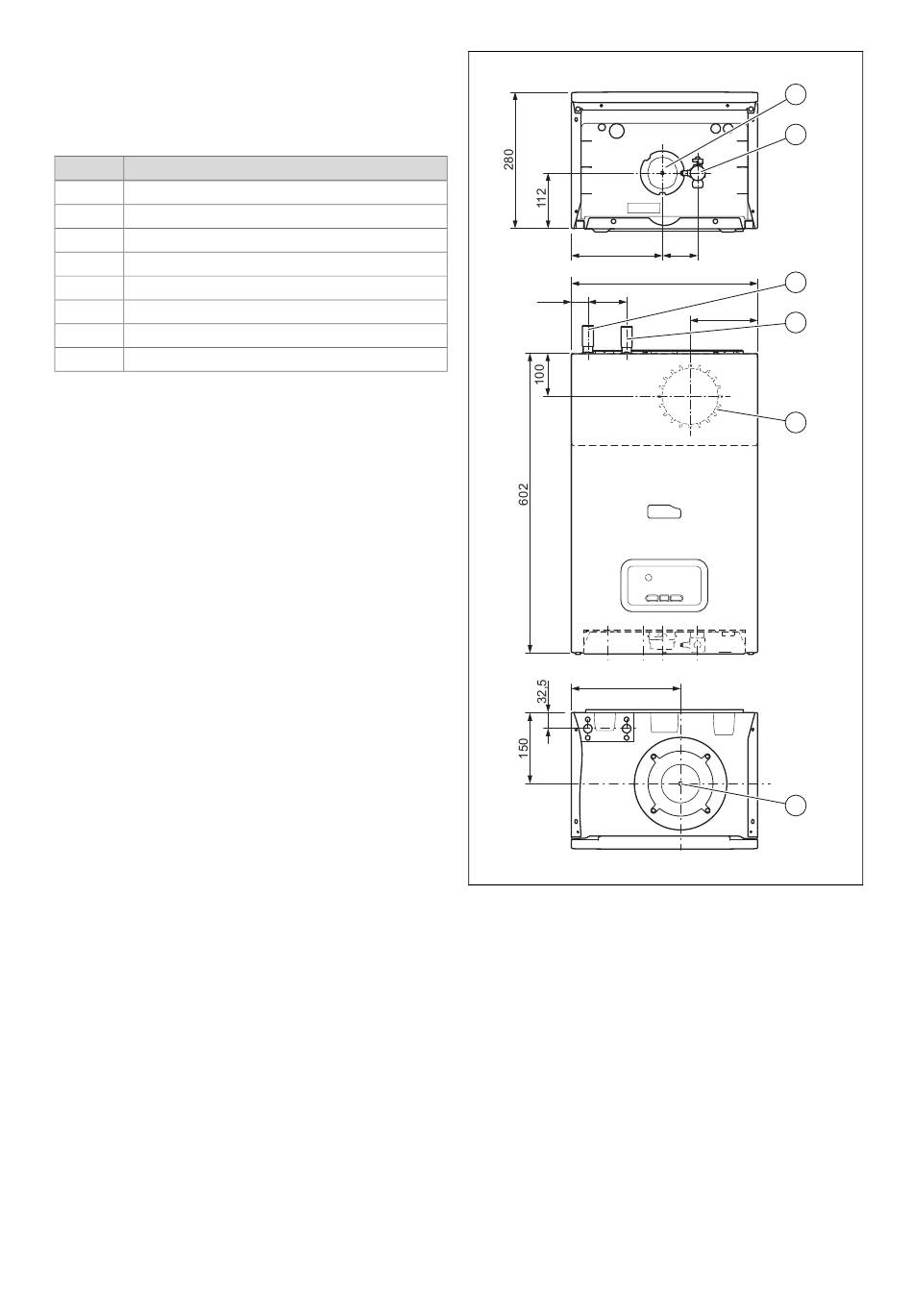

Dimensions

183,5
33,5 78
220
1 Condensate discharge
2 Gas connection
3 Heating return
6.3

Installation site

This boiler is not suitable for outdoor installation. This boiler
may be installed in any room. However if the boiler is being
installed in a room containing a bath or shower it must only
be installed in zones 2 or 3. In GB this is the current I.E.E.
WIRING REGULATIONS and BUILDING REGULATIONS. In
IE reference should be made to the current edition of I.S.813
"Domestic Gas Installations" and the current ETCI rules.
If the boiler is to be installed in a timber frame building it
should be fitted in accordance with the current version of the
Institute of Gas Engineers document IGE/UP/7. If in doubt
seek advice from local gas undertaking or the manufacturer.
Installation and maintenance instructions EASICOM 3 0020238431_03
1
2
71
375
3
133,5
4
5
6
4 Heating flow
5 Rear air/flue connection
6 Top air/flue connection
