Oil/air cooler
series
OPC
according to directive 2014/34/EU
Please observe protection
note ISO 16016.
Oil/air cooler
Series OPC
Operating/Assembly instructions
Drawn:
2019-10-23 Pz/Str
Verified:
2019-11-04 Pz

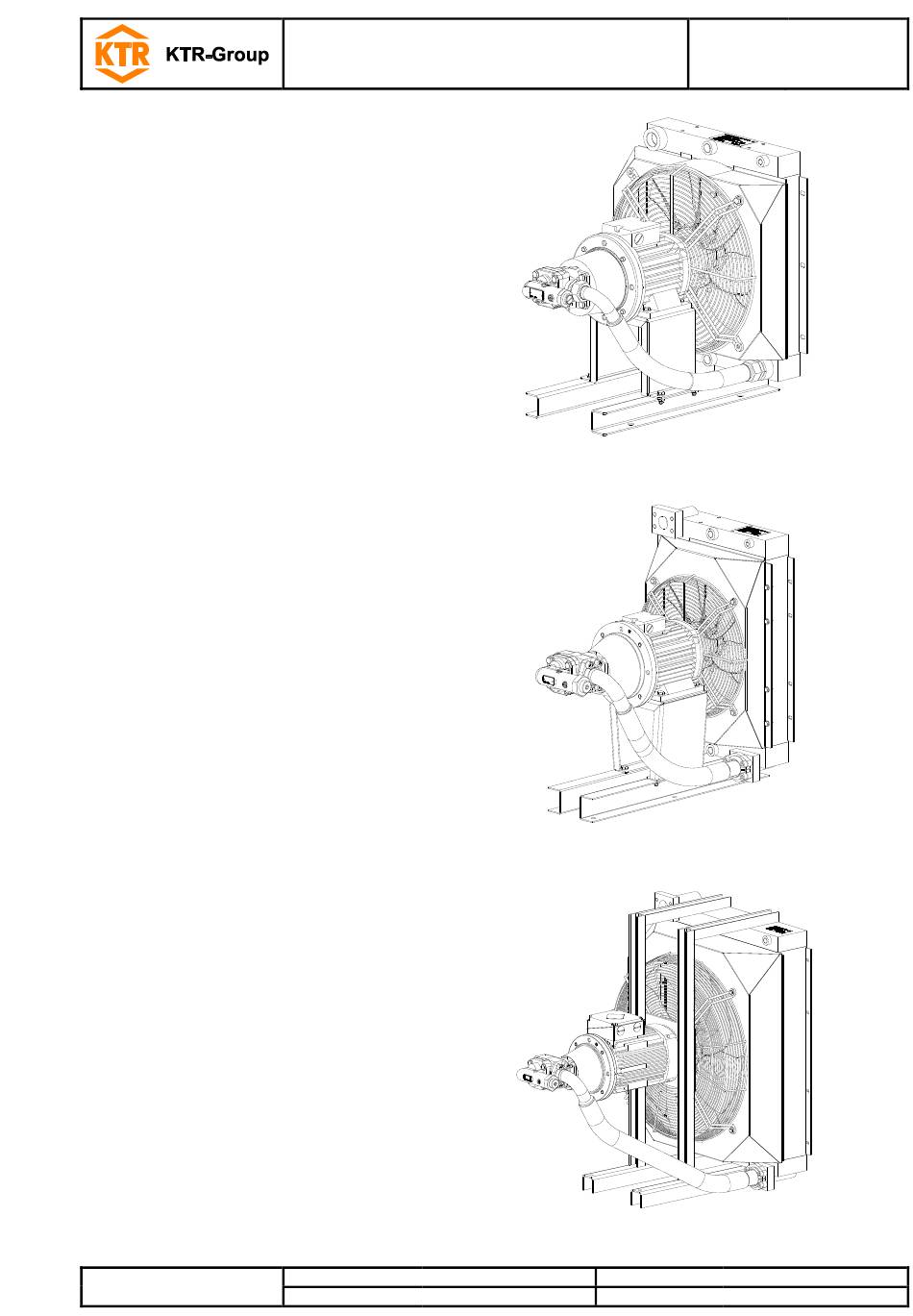

Oil/air cooler; example: OPC200 to 400
Oil/air cooler; example: OPC500 to 700
Oil/air cooler; example: OPC800 to 1000
Replacing:
Replaced by:
KTR-N
43211 EN
Sheet:
1 of 20
Edition:
5
KTR-N dated 2017-01-02
Advertisement
Table of Contents
Related Manuals for KTR-Group OPC Series
Summary of Contents for KTR-Group OPC Series
- Page 1 Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 1 of 20 Operating/Assembly instructions Edition: Oil/air cooler series according to directive 2014/34/EU Oil/air cooler; example: OPC200 to 400 Oil/air cooler; example: OPC500 to 700 Oil/air cooler; example: OPC800 to 1000 Drawn: 2019-10-23 Pz/Str Replacing: KTR-N dated 2017-01-02...
-
Page 2: Table Of Contents
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 2 of 20 Operating/Assembly instructions Edition: The oil/air cooler series OPC is an efficient high-performance cooler. It has a compact design and was developed for cooling hydraulic oil, gear oil and lubricating oil. Table of contents Technical data Advice... -
Page 3: Technical Data
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 3 of 20 Operating/Assembly instructions Edition: Technical data Type OPC200 to 400 Illustration 1: OPC200 to 400 Table 1: Dimensions - Type OPC200 to 400 Dimensions [mm] Current Speed Type of cooler Voltage l/min. - Page 4 Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 4 of 20 Operating/Assembly instructions Edition: Technical data Type OPC500 to 700 Illustration 2: OPC500 to 700 Table 2: Dimensions - Type OPC500 to 700 Dimensions [mm] Current Speed Type of cooler Voltage l/min.
- Page 5 Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 5 of 20 Operating/Assembly instructions Edition: Technical data Type OPC800 to 1000 Illustration 3: OPC800 to 1000 Table 3: Dimensions - Type OPC800 to 1000 Dimensions [mm] Current Speed Type of cooler Voltage l/min.
-
Page 6: Advice
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 6 of 20 Operating/Assembly instructions Edition: Advice General advice Please read through these operating/assembly instructions carefully before you assemble the oil/air cooler. Please pay special attention to the safety instructions! The oil/air cooler is suitable and approved for the use in potentially explosive atmospheres. With the use in potentially explosive atmospheres please observe the special notes and instructions regarding safety as per enclosure A. -
Page 7: Intended Use
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 7 of 20 Operating/Assembly instructions Edition: Advice 2.4 Intended use You may only assemble and disassemble the oil/air cooler if you • have carefully read through the operating/assembly instructions and understood them •... -
Page 8: Assembly
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 8 of 20 Operating/Assembly instructions Edition: Assembly The oil/air cooler series OPC is supplied ready for assembly. 4.1 Components of oil/air cooler Component Quantity Description Oil/air cooler „Type OPC“ Illustration 4: Oil/air cooler; example: OPC200 to 400 Illustration 5: Oil/air cooler;... -
Page 9: Place Of Installation
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 9 of 20 Operating/Assembly instructions Edition: Assembly 4.2 Place of installation Illustration 7: Oil/air cooler; example: OPC200 to 400 Illustration 8: Oil/air cooler; example: OPC500 to 1000 In order to achieve the optimum cooling capacity the distance to the nearest wall should not fall below the height of the cooling element (dimension A), since only in this way a proper air supply is ensured (see illustration 7 and ... -
Page 10: Assembly Of Oil/Air Cooler
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 10 of 20 Operating/Assembly instructions Edition: Assembly 4.3 Assembly of oil/air cooler The oil/air cooler can be assembled in various positions, while the vertical design should be preferred. Sufficient fastening has to be assured. ... -
Page 11: Electrical Connection
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 11 of 20 Operating/Assembly instructions Edition: Assembly 4.5 Electrical connection Before connecting the motor to the power supply compare the specifications in the type label (see illustration 11 or 12) of the motor to the voltage, fuse and frequency of the mains. -
Page 12: Cleaning
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 12 of 20 Operating/Assembly instructions Edition: Assembly 4.7 Cleaning Before cleaning make sure that the oil/air cooler has cooled down. STOP Touching the heated components causes burns. With cleaning processes, e. g. with water, disconnect the cooler from the main power supply. -
Page 13: Start-Up
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 13 of 20 Operating/Assembly instructions Edition: Start-up Please make sure that the oil/air cooler is properly connected and fastened. A grounding cable has to be connected to the oil/air cooler in the position marked (on the yellow grounding symbol). -
Page 14: Spares Inventory, Customer Service Addresses
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 14 of 20 Operating/Assembly instructions Edition: Maintenance and service • Inspect distances between fan and protective grid (see chapter 8.3). • Inspect the individual components of the device for electrically conductive connections (including the grounding cable connection). -
Page 15: Enclosure A
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 15 of 20 Operating/Assembly instructions Edition: Enclosure A Advice and instructions regarding the use in potentially explosive atmospheres Sizes: OPC200 to OPC1000 8.1 Intended use in potentially explosive atmospheres Conditions of operation in potentially explosive atmospheres The oil/air coolers are suitable for the use according to EU directive 2014/34/EU. - Page 16 Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 16 of 20 Operating/Assembly instructions Edition: Enclosure A Advice and instructions regarding the use in potentially explosive atmospheres Marking for potentially explosive atmospheres The ATEX marking of the oil/air coolers series OPC is made on one component. For the complete marking refer to the operating/assembly instructions.
-
Page 17: Start-Up For The Use In
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 17 of 20 Operating/Assembly instructions Edition: Enclosure A Advice and instructions regarding the use in potentially explosive atmospheres Marking for potentially explosive atmospheres Substance group - gases, mist and vapours: The marking with explosion group llC includes the explosion groups llA and llB. Substance group - dusts: The marking with explosion group lIlC includes the explosion groups lIlA and lIlB. -
Page 18: Permissible Accessories For The Use In
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 18 of 20 Operating/Assembly instructions Edition: Enclosure A Advice and instructions regarding the use in potentially explosive atmospheres 8.3 Start-up for the use in potentially explosive atmospheres • The oil/air cooler may be set up horizontally only and must be screwed to the base through all fastening holes. •... -
Page 19: Ec Certificate Of Incorporation
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 19 of 20 Operating/Assembly instructions Edition: Enclosure A Advice and instructions regarding the use in potentially explosive atmospheres 8.5 EC Certificate of incorporation EC Certificate of incorporation according to EC machinery directive 2006/42/EC dated May 17, 2006, annex II B The manufacturer - KTR Systems GmbH, D-48432 Rheine - states that the Oil/air cooler - OPC is an incomplete machine complying with the Machinery Directive 2006/42/EC. -
Page 20: Eu Certificate Of Conformity
Oil/air cooler KTR-N 43211 EN Series OPC Sheet: 20 of 20 Operating/Assembly instructions Edition: Enclosure A Advice and instructions regarding the use in potentially explosive atmospheres 8.6 EU Certificate of conformity EU Certificate of conformity corresponding to EU directive 2014/34/EU dated 26 February 2014 and to the legal regulations The manufacturer - KTR Systems GmbH, D-48432 Rheine - states that the Oil/air coolers - OPC in an explosion-proof design described in these operating/assembly instructions are devices...
