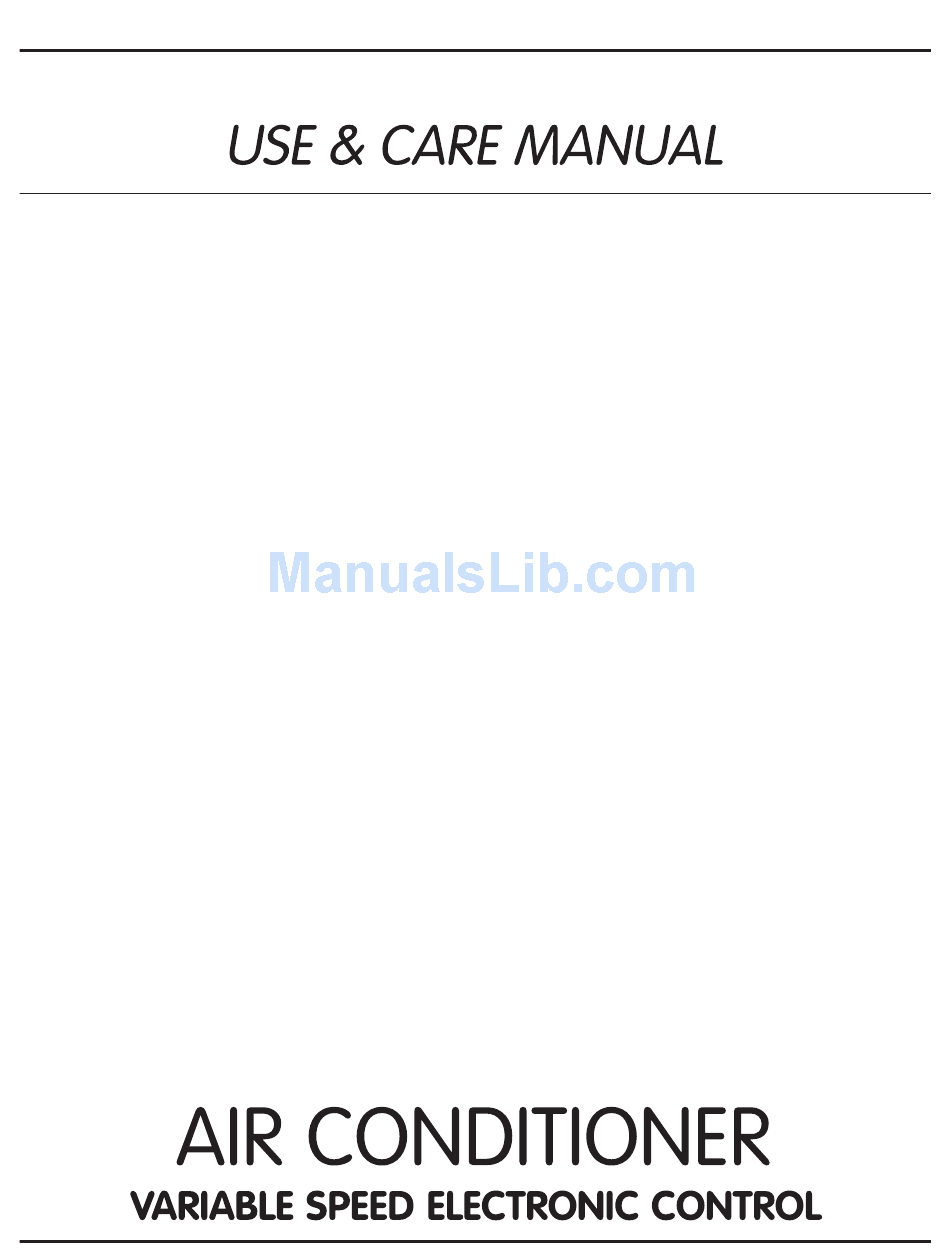

- Page 1 READ AND SAVE THESE INSTRUCTIONS AIR CONDITIONER ELECTRONIC CONTROL...
-
Page 2: Warranty
Your product is protected by this warranty Your appliance is warranted by Electrolux. Electrolux has authorized Frigidaire Consumer Services and their authorized servicers to perform service under this war- ranty. Electrolux authorizes no one else to change or add to any of these obligations under this warranty. Any obligations for service and parts under this war- ranty must be performed by Frigidaire Consumer Services or an authorized Frigidaire servicer. -
Page 3: Table Of Contents
On some models, remove the filter and look at the bottom edge of the air conditioner behind the front grille for the model and serial numbers. Reading these numbers may be easier by using a flashlight or by removing the cabinet front as instructed under “Care... -
Page 4: Important Safety Instructions
• If the air conditioner is to be installed in a window, you will probably want to clean both sides of the glass first. If the window is a triple-track type with a screen panel included, remove the screen completely before installation. -
Page 5: Using Air Conditioner
IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. To begin operating the air conditioner, follow these steps: 1. Plug in the air conditioner. (To prevent electrical hazards, do not use an extension cord or an adapter plug.) 2. Press “On/Off” button to turn unit on. - Page 6 Air Conditioner Features (continued) TO TURN UNIT ON: DO THIS: PRESS ON/OFF TO CHANGE TEMPERATURE SETTING: DO THIS: PRESS TO RAISE PRESS TO LOWER TO ADJUST FAN SPEEDS: DO THIS: PRESS TO SELECT: FASTER SLOWER NOTE: The following instruction represent the Touch Pad, the same instructions can be used for the Remote Control.
- Page 7 Air Conditioner Features (continued) TO USE AUTO COOL FEATURE: DO THIS: PRESS AUTO COOL TO OPERATE ON FAN ONLY: DO THIS: PRESS MODE BUTTON CHOOSE FAN ONLY TO USE THE ENERGY SAVER FEATURE: DO THIS: PRESS MODE BUTTON CHOOSE ENERGY SAVER...
- Page 8 Air Conditioner Features (continued) TIMER: DELAY STOP / START FEATURE DO THIS: PRESS TIMER BUTTON SLEEP FEATURE: DO THIS: PRESS SLEEP BUTTON YOU WILL SEE: TIMER SETTING LIGHT On Note: For Delay Stop, the unit must be in the On position.
- Page 9 Air Conditioner Features (continued) CHECK FILTER FEATURE: CLEAN AIR FEATURE (on some models) DO THIS: PRESS CLEAN AIR BUTTON REMOTE SENSING FEATURE (on some models) DO THIS: PRESS REMOTE SENSING BUTTON ON YOU WILL SEE: LIGHT On Note: This feature is a reminder to clean the Air Filter (See Care and Cleaning) for more efficient operation and cooling.
- Page 10 ) buttons together for 3 seconds. Fresh Air Vent Control (On some models) The Fresh Air Vent allows the air conditioner to: 1. Recirculate inside air — Vent Closed (see Fig. 1) 2. Draw fresh air into the room — Vent Open (see Fig. 2) 3.
-
Page 11: Care And Cleaning
• Or, instead of washing you may vacuum the filter clean. Cabinet Cleaning • Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwashing detergent. -
Page 12: Avoid Service Checklist
Air movement sound. This is normal. If too loud, set to a slower FAN setting. Window vibration — poor installation. Refer to installation instructions or check with installer. Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. Refer to installation instructions — check with installer.
