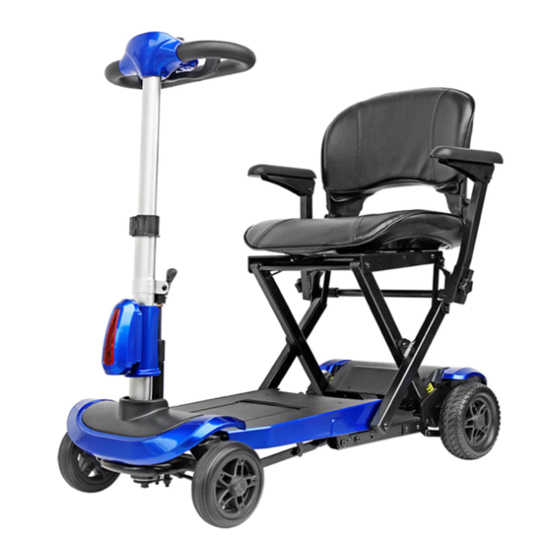

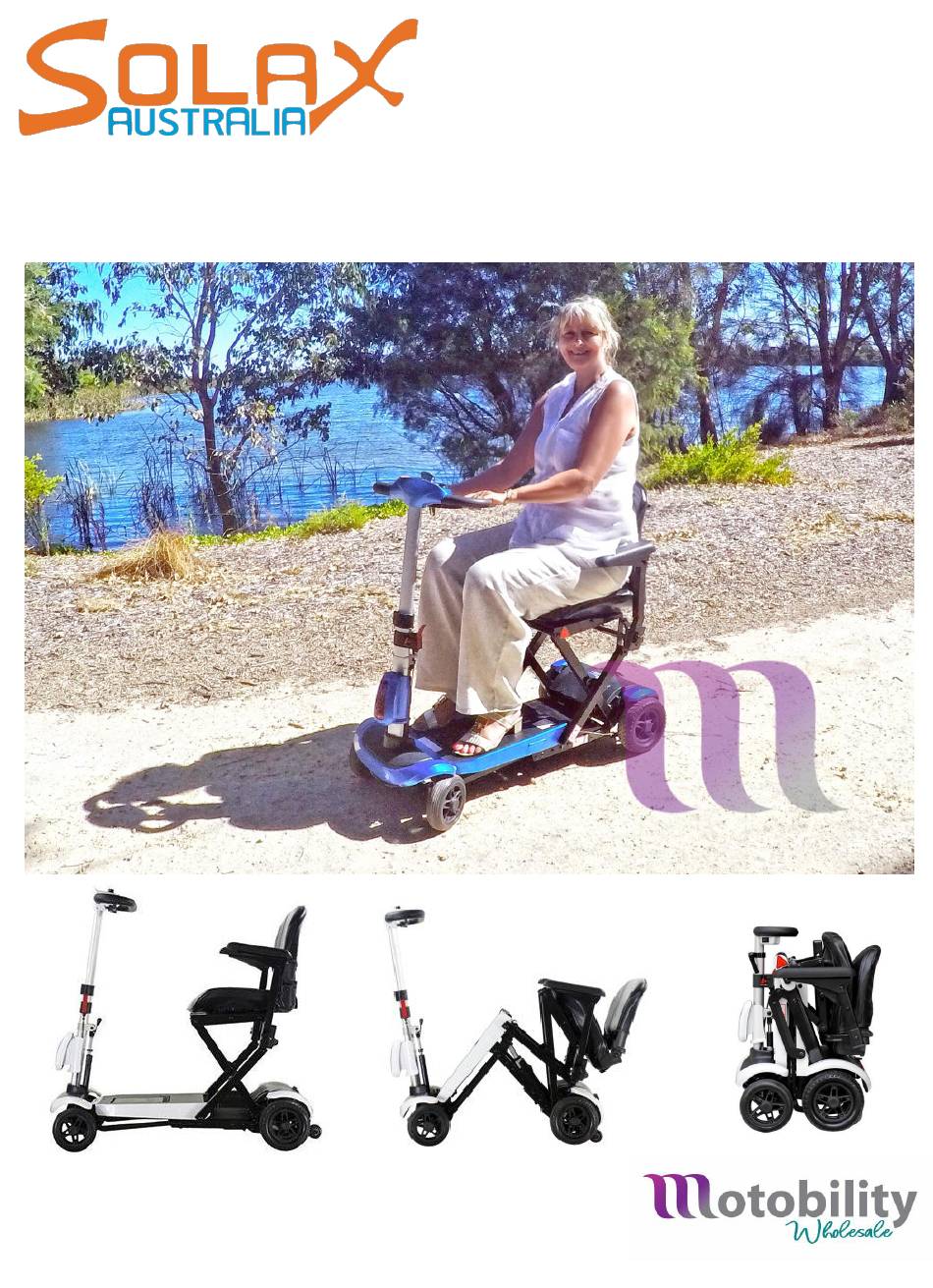

- Page 1 Solax Genie Plus User Manual Proudly brought to you by Proudly brought to you by...
- Page 2 Scooter maintenance. Finally, we hope that your new Solax Genie Plus will help you enjoy a more comfortable, convenient, and wonderful life. All the information and pictures contained in this manual are subject to the factory's products and are to be used only...
-
Page 3: Table Of Contents
Table of Content Table of Content ....................................2 1. Features......................................2 1.1 Main characteristics................................4 2. Product Specifications and Relevant Parameters........................5 3. Main Parts and Relevant Function............................6 Control panel/dash................................6 3.2 Key ignition ...................................6 3.3 Speed adjustment dial ................................. 6 3.4 Power indicator ..................................7 3.5 Direction control lever................................7 3.6 Horn button -.................................. -
Page 4: Features
1 Features Please refer to the diagram below to identify the different components of your scooter. Familiarise yourself with the terminology to better understand part references throughout the Owner’s Manual. Product images in the manual may very slightly from the product received. -
Page 5: Main Characteristics
In conclusion, The Solax Genie Plus is a unique scooter, that suits a large range of different users and will provide the user with the ability to access many places and enjoy more freedom in everyday life. -
Page 6: Product Specifications And Relevant Parameters
2 Product Specifications and Relevant Parameters Model Solax Genie Plus (S3031) Maximum Product Size 930mm (L) x 450mm (W) x 865mm (H) 450mm (L) x 450mm (W) x 570mm (H) Product Minimum Size Seat Above Ground 560mm Seat Width 430mm... -
Page 7: Main Parts And Relevant Function
3 Main Parts and Relevant Function 3.1 Control Panel/Dash - Fig.01 USB mobile phone charging port The Dash is the “control-center” of your Solax Genie. It offers access to all the features and controls. It features Horn Key Ignition ... -
Page 8: Power Indicator
3.4 Power Indicator (Fig.04) When the scooter is turned to the “on” position, your battery charge will show on the LCD display. As you use your scooter and your battery, the lights will snuff out, starting with the green bars on the right hand side. Fig.04 3.5 Direction Control Lever The direction control lever is used to drive the scooter and to... -
Page 9: Controller
3.9 Brake The Solax Genie Plus has an electromagnetic break. This means that it engages automatically as soon as you let go of the tiller. Please see 3.10 to see how to disengage the brake. -
Page 10: Automatic Folding And Unfolding Buttons On The Rear Of The Scooter
4.2 Automatic folding and unfolding buttons on the rear of the scooter Please follow the steps outlined in 4.1 but using the button located on the back of the scooter near the charging port. Notice: Ensure your scooter is on level ground, before using the fold/unfold function of your Solax Genie 5 Manual Folding &... -
Page 11: Safety Requirements
6 Safety Requirements 6.1 Driving Surface and Tips The Solax Travel scooter range has been designed to be used on paved surfaces, such as carpet, well maintained footpath, shopping centers etc. However, it may also be used on other surfaces, such as grass or walkways in parks etc. -
Page 12: Battery And Battery Charging
7 Battery and Battery Charging This scooter is designed with a maintenance free, high quality Li-polymer (Lithium) battery. Please follow the below instructions to ensure a long-lasting battery life. Charge the battery before the first operation. Avoid your battery to go flat/fully use its charge as this will damage the battery ... -
Page 13: Guide To A Safe And Long-Lasting Battery
7.2 Guide to a safe and long-lasting battery 7.2.1 How does the charger work? When the battery voltage is low, the battery charger outputs a large current to charge the battery. When battery voltage is close to full, the battery charger outputs a small current, this is known as a trickle feed. -
Page 14: How To Ensure The Battery Life
Please follow these steps to improve the battery performance 1. Fully charge the battery before first use 2. Use a low speed setting for the first use and don’t travel too far until you are familiar with the operation of your scooter. 3. -
Page 15: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
8. 2 Guidance and manufacturer's declaration - electromagnetic immunity The 4-Wheel Folding Scooter is intended for use in the electromagnetic environment specified below. The customer or the user of the 4-Wheel Folding Scooter should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level... -
Page 16: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
8.3 Guidance and manufacturer's declaration - electromagnetic immunity The 4-Wheel Folding Scooter is intended for use in the electromagnetic environment specified below.The customer or the user of the 4-Wheel Folding Scooter should assure that it is used in such an environment. Immunity test IEC 60601 Compliance... -
Page 17: Portable And Mobile Rf Communications Equipment And The 4-Wheel Folding Scooter
8.4 portable and mobile RF communications equipment and the 4-Wheel Folding Scooter Recommended separation distances between portable and mobile RF communications equipment and the 4-Wheel Folding Scooter The 4-Wheel Folding Scooter is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. -
Page 18: Basic Troubleshooting
Basic Troubleshooting 9.1 Scooter not turning on Please check the key is inserted into the switch and turned to the on position Check it if the battery is fully charged, if not charge the battery until the charger light turns green ... - Page 19 Name of re-seller / Purchasing Store Please complete your Warranty registration card and email through a copy to wholesale@motobility.com.au Warranty Statement Materials, manufacturing or assembling problems under the normal usage is responsibility of the dealer for the repair or replacement of parts.
- Page 20 The following symbols are found on the Scooter: Warning of Microwave Radiation Manufacturer Do not drive in rain or snowy weather Date ofManufacture keep loose clothing clear of the scooter Refer to The InstructionManual Do not operate cell phones while the [:r;::ill] scooter is poweredon.
