Summary of Contents for Motobility E-Traveller 180

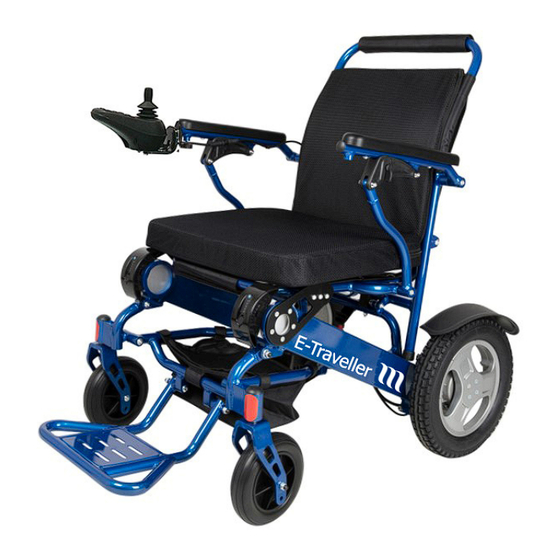

- Page 1 Instruction Manual Portable Electric Wheelchair Motobility E-Traveller 180...
-
Page 2: Table Of Contents
Catalogue Direction Safety sign Parameters Wheelchair Structure Electromagnetic Interference Information Safety Guidelines User Caregiver Notes when using joystick Notes of using in stationary state Operating environment Applicable road Road driving The motorized vehicle safety Balance of driving Attention when getting on/off the wheelchair Attention when body reclines and stretches Attention when dressing in the wheelchair Through the obstacles... - Page 3 The Motobility E-Traveler 180 you own now has a good quality in safety, comfort and portability, etc. The Motobility E-Traveler 180 will bring you free action. It will be one of the most worthy trusting and reliable friends. Before operating the Motobility E-Traveler 180 for the first time, please read this manual for users carefully.
-
Page 4: Direction
Caution User: Please don’t use and operate the Motobility E-Traveler 180 until you have known this wheelchair, read and understood the whole instructions. If you can’t understand this warning and directions, please contact the dealer for professional technical guidance and help. -
Page 5: Safety Sign
Safety Sign The signs below can help you identify some warnings, mandatory operation and prohibitive operation of the Motobility E-Traveler 180. Identifying and understanding them completely is very important. Read and follow the guidance of this manual. The safety warning sign: or a suggestion for a dangerous operation that may hurt you or others. -
Page 6: Parameters
Parameters Model MOTOBILITY E-TRAVELER 180 580 * 325 * 780 mm (L*W*H) Folded Size Weight Capacity 180 kg Motor Type brushless DC motor Rated Power 250 W*2pcs Input Power DC 24V Brake System intelligent electromagnetic brake Battery Type lithium battery... -
Page 7: Wheelchair Structure
Wheelchair Structure... -
Page 8: Electromagnetic Interference Information
This electromagnetic interference may cause the brakes out of control, and move, losing control; also, it could bring the control system of Motobility E-Traveler 180 permanent damage. So the ability of one product to resist electromagnetic interference is particularly important. Our... -
Page 9: Safety Guidelines
1. Health nursing staff should have been trained and have obtained the professional guidance of using. 2. Before you use this Motobility E-Traveler 180, please make sure you have learnt how to operate it. 3. Practice some operations with the help of nursing staff, such as turning, surmounting obstacles, and brake, until you are independent and skilled in performing these operations. -
Page 10: Notes When Using Joystick
4.4 When you are going to back tilting, you should remind the user to close the back. 5. The Motobility E-Traveler 180 should go downstairs slowly, in case of causing the damage to the user as well as the Motobility E-Traveler 180. -
Page 11: Operating Environment
• Please don't use this kind of Motobility E-Traveler 180 in the bath, sauna and during swimming. • Please don't use the Motobility E-Traveler 180 beside the water (such as rivers, lakes or ocean). • Please make sure that the battery cover is closed •... -
Page 12: Road Driving
3. If the user uses the Motobility E-Traveler 180 alone in public vehicles, he should look for a place where the wheelchair or the wheels can be fixed to, to avoid the harm that caused by... -
Page 13: Balance Of Driving
Avoid falling: When you are ready to seat yourself on the Motobility E-Traveler 180, you must turn off the power supply. Otherwise, when you touch the joystick, it may lead to an sudden movement. -
Page 14: Attention When Body Reclines And Stretches
Let others help you until you ensure that you can up and down the wheelchair safely by yourself. 1. Move your Motobility E-Traveler 180 as close as possible to the place where you can seat yourself stable. -
Page 15: Attention When Dressing In The Wheelchair
7. If you must extend or tilt, you must take your own risk. Remember ： 1. Move your Motobility E-Traveler 180 as close as possible to the object you want to reach. 2. Rotate the front castor as forward as possible, which will make the Motobility E-Traveler 180 more stable. -
Page 16: Driving Back
On the slope, the balance of the gravity of your Motobility E-Traveler 180 will change. Attention: “slope” may be a ramp or hillside. If you are not sure the safety when the Motobility E- Traveler 180 used on the slope, please use it under others’ help, do not use it alone. -
Page 17: Load Capacity
Load Capacity Caution 1. The maximum load of this Motobility E-Traveler 180 is 180 kg. When using it, the load should not exceed the maximum bearing. 2. The backrest’s load capacity is less than 75 kg; please do not press or raised the backrest. -
Page 18: Installation Instruction
Press the button of the plastic shell aside, pull out the plastic card. Caution Before each use, ensure that the safety belt is fixed in the Motobility E-Traveler 180 correctly and accurately, and adjust to the most comfortable state of the user. -
Page 19: Joystick Instruction
2. As shown in the figure of D2, aim at the socket, and insert the four-core plugs into the left sockets. The control panel controls Motobility E-Traveler 180. It consists of the following sections: Joystick Instruction 1. - Page 20 Light flickers intermittently to provide diagnostic information. About the detail, please refer to the following table: There are some diagnosis functions; the diagnosis codes showed can reflect the property of problems. Diagnostic Diagnosis Description Recommended solving methods code Flicker one Hall malfunction of the Check the welding situation of the connection device of the time slowly...
-
Page 21: Use The Joystick To Control The Wheelchair
Motobility E-Traveler 180. Drive the Motobility E-Traveler 180, please do as the followings: 1. Adjust the control panel to the appropriate settings. -
Page 22: Brake Instruction
Through the operation of the joystick to open the electromagnetic brake (Refers to the electromagnetic brake, lock the free rolling of the wheels) or close (Refers to the electromagnetic brake is released, the wheels are free to roll), the escort can easily push the Motobility E-Traveler 180 when power off. - Page 23 Don't close to flammable materials. Don't g e t close to or exposed to the heat source, such as fires or sparks, etc. Don’t transport the battery with flammable or combustible materials together. There are some corrosive chemicals in the battery box, disassembling the battery is prohibited.
-
Page 24: Install/Remove The Battery
5. Charge the battery often, as long as the Motobility E-Traveler 180 is used. Please charge the battery after using it until it’s full. If you do not use the Motobility E-Traveler 180 for a long time, please recharge it every two months, each time at about 80% of the electricity. It will damage the battery if there is no electricity for a long time, the battery will not be able to use, and it will damage the Motobility E-Traveler 180 seriously. -
Page 25: Over Discharge Protection Device
6. It is forbidden to use the battery in a hot or cold environment. Over Discharge Protection Device When the battery of the Motobility E-Traveler 180 is run out, the over discharge protection device will protect the charger for excessive discharge. Users should pay attention to when the over discharge protection device is activated;... -
Page 26: Fold And Unfold
Fold and Unfold Caution After any adjustment, repair or maintenance, please make sure that all accessories parts are installed tightly. Otherwise, it may cause harm or damage. The weight of the wheelchair (with battery) is 21 KGS (46lbs), please use the right way to lift (lift your legs) to avoid injury. -
Page 27: Unfold The Motobility E-Traveler 180
Unfold the Wheelchair Step: 1. One hand holds the scooter backrest frame, the other hand grabs at the battery tube to the outside, and at the same time presses the connecting rod to the largest extent, open the back parts of the electric scooter. (When you press the connecting rod group, make sure that fixed card in stuck range) 2. -
Page 28: Malfunction And Eliminating Methods
Malfunction and Eliminating Methods There is a diagnostic indicator in the control panel. When the light is green, it means this wheelchair has no problem. When there is something wrong with it, it will report by flickering. If the indicator light indicates, there is something wrong; the user should turn off the power supply and then turn on it again. - Page 29 2. Flashing Code Diagnostic Diagnosis Description Recommended solving methods code Flicker one Hall malfunction of the Check the welding situation of the connection device of the left time slowly left motor motor or check the internal hall component Flicker two Hall malfunction of the Check the welding situation of the connection device of the times slowly...
-
Page 30: The Warranty Instruction
Damage caused by the load capacity exceeding. 2. If the serial number of the Motobility E-Traveler 180 is not the original serial number, having been modified or not match with the serial number of the guarantee card, or the serial number of the guarantee card has been revised, no guarantee. -
Page 31: Guarantee Card
Guarantee Card The guarantee card must be handed over to the after-sales department of the manufacturer in 15 days after returned to the dealer. The user name ID number Address Contact number Model Product number Purchasing date Month Year Manufacturer Supplier (Stamp or signature) Supplier phone( address) 1.
