Instructions for Assembly and Operation for sprayer models:
2681022, 26810011, 2681201, 2681101, 26812101, 2851701,
2851801, 2681851, 2681852, 2287181, 2287182, 99916, 99917
Pressure Regulator + Agitation Kit:

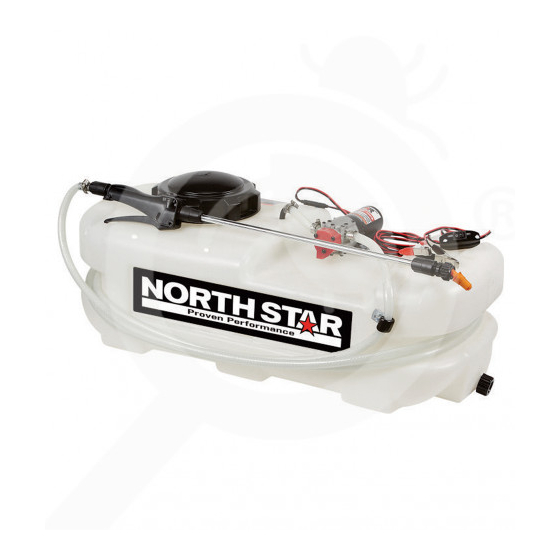

Outdoor agricultural sprayer attachment used to maintain constant pressure
while spraying, and to agitate the liquid** inside the tank and keep it well
READ and UNDERSTAND the Owner's Manual completely before using this item.
Assemble, test, and use only in accordance with the Owner's Manual instructions.
READ and FOLLOW chemical safety instructions. Pesticides are hazardous chemicals.
KNOW emergency procedures BEFORE handling chemicals. Sprayer leaks, bodily
chemical contact, poisoning, and spills require immediate response.
AVOID inhaling, ingesting, or coming into contact with any chemicals.
WEAR personal protective gear when operating, cleaning, and servicing the sprayer.
KEEP pump and spray materials away from children and pets. Pesticides are especially
toxic to them.
DO NOT TURN ON POWER to sprayer until ready to spray in order to avoid
unintentional spray release.
Improper use of the sprayer or handling of chemicals could result in serious injury or
illness to the operator or nearby persons/animals, or could cause damage to the
environment.
** This regulator is recommended for use in spraying non-flammable liquids such as pesticides,
water for plants/trees or dust control, ice control chemicals, or water-based non-flammable sealants
or stains for outdoor wood surfaces. However, WE RECOMMEND THAT THE REGULATOR
NOT BE USED FOR OTHER PURPOSES ONCE IT HAS BEEN USED FOR SPRAYING
PESTICIDES. Any chemical will leave some residual in the regulator, even after the regulator has
been properly cleaned. These residual chemicals can have unexpected effects on future uses. For
example, spraying water or other liquids that are contaminated with residual pesticide may result in
unforeseen hazards to plant or animal life.
Any Questions, Comments, Problems, or Parts Orders
Call NorthStar Product Support 1-800-270-0810
Owner's Manual
mixed.
WARNING
M2681032B.1
ITEM NUMBER: 2681032
