Summary of Contents for inDESIGN ZM Series
- Page 2 CONTENTS INTRODUCTION INTRODUCTION The inDESIGN ZM824 is a high-quality zone mixer for commercial and industrial audio applications. IMPORTANT SAFETY The ZM824 features 8 input channels with switchable balanced INSTRUCTIONS mic/line connectors and dual RCA connectors, including 2 priority channels, useful for paging announcements. Each...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. To prevent injury please refer to these instructions for electrical and safety information before installing or operating the apparatus. 6. No naked flame sources such as lighted candles should be placed on the apparatus. 7. -

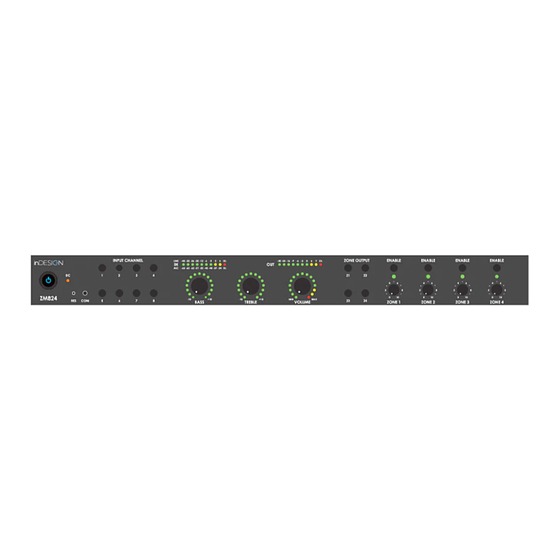

Page 4: Front Panel
FRONT PANEL 1. Power Switch: Turns mains power on and off. The 24V DC backup power bypasses the power switch and is always active while connected. 2. 24V DC Backup Power Indicator: Red Indicates if DC backup power is connected and available. Orange indicates DC backup power is currently being used. -
Page 5: Rear Panel
REAR PANEL 15. RS232: DB-9 connector for RS232 control. See page 6 for settings and a list of RS232 commands. 16. Tone generator connections: There are four alarm triggers: CHIME, ALERT, BELL and EVAC. These are connected via the rear panel Phoenix connector. Each alarm is triggered by a (normally open) switch/ relay contact joined between the trigger and the “COM”... - Page 6 RS232 Baud Rate: 115200 Data Bits: 8 Parity: None Stop Bits: 1 Handshaking: None PAGE 6 ZM824: INSTALLATION & OPERATION MANUAL...
-
Page 8: Specifications
SPECIFICATIONS Frequency response 20- 20000Hz (-3 dB) Gain 50dB- +13.5dBu Distortion (THD+N) <0.1%@ 1 kHz, 0dBu output Signal-to-noise ratio 95dB Dynamic range 103.5dB Balance input channel 1-8 Characteristics Electronically balanced Input impedance MIC 600 Ω / Line 47K Input level MIC -50dB / Line -10dB Phantom power 24V, switchable... - Page 9 NOTES ZM824: INSTALLATION & OPERATION MANUAL PAGE 9...
- Page 10 NOTES PAGE 10 ZM824: INSTALLATION & OPERATION MANUAL...
- Page 11 WARRANTY INFORMATION – Terms of Warranty – 5 Years Consumer Guarantees When you purchase a NAS Solutions distributed product, you have the peace of mind in knowing that your product is covered by the NAS warranty. The NAS warranty is provided by NAS Solutions (ABN 50 085 679 894), 127 Merrindale Drive, Croydon, Victoria 3136.
-
Page 12: Warranty Exclusions
The Warranty excludes accessories and consumable goods which have ceased working through normal wear and tear such as, but not limited to, batteries, lamps and other parts classifiable as a consumable part. This includes the CD mechanism and laser fitted to the inDESIGN iDCDP-110. These parts carry a 3 month warranty.
