Freedom9 freeConnect S100 Specifications

freeConnect Mod
SFP Transceiver
Module
freeConnect Mod S100 > SFP transceiver module

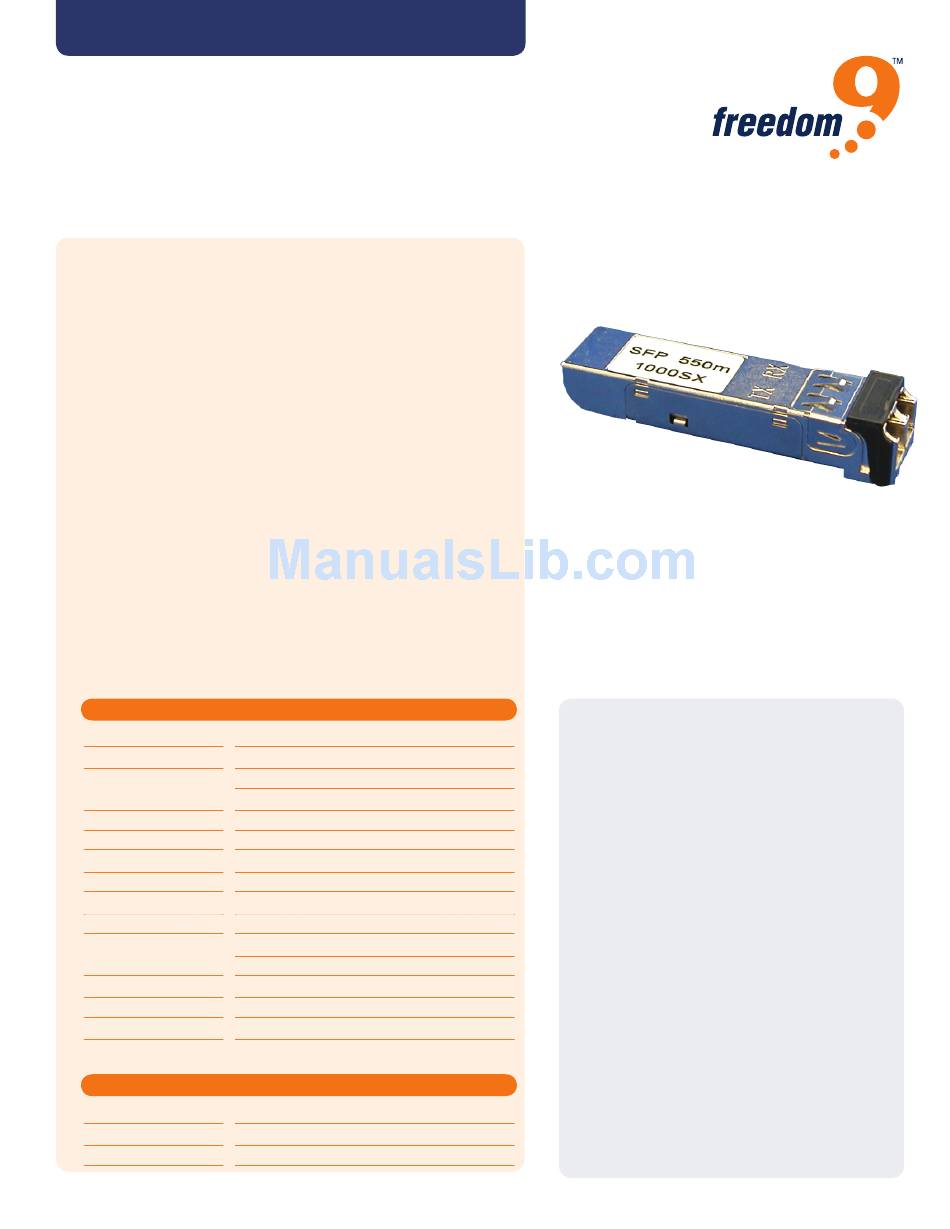

SFP/mini-GBIC SX Multimode fiber transceiver
The freeConnect Mod S100 is a high performance
850nm multimode SFP/mini-GBIC transceiver sup-
porting full-duplex, gigabit speeds for distances of
up to 275m / 550m on 62.5µ / 5µ multi-mode fiber
respectively. This hot pluggable unit has a metal
housing to reduce EMI and to increase durability.
Specifications
Standards
Interface
Transmission Range
Data Rate Gigabit
Data Rate Fiber Channel
Optical Receiver Sensitivity
Supply Voltage
Maximum Voltage
Maximum Current
Temperature
Humidity
Dimensions (h x w x d)
Certification
Model Numbers
Model Name
Description
Part Number
Revision 1.1 Specifications are subject to change without notice.
S100
IEEE 802.3z
LC Type Connector
Up to 550m on 50.0/125µ
Up to 275m on 62.5/125µ
1.250Gbps (Bi-directional)
1.062Gbps (Bi-directional)
-18dBm (max.)
3.1 - 3.5V
6.0V
300mA
Operating: 32° to 158° F (0° to 70° C)
Storage: -40° to 185° F (-40° to 85° C)
10% to 85%
2.2 x 1.2 x 0.5 in (57 x 30 x 12 mm)
FDA 21 1040.10 & 1040.11 / Class 1 Laser - EN 60825-1
freeConnect Mod S100
SFP/mini-GBIC SX Multi-Mode Fiber Transceiver
STS-S5
Features
• 850nm multimode transceiver
• Duplex LC connector
• Metal enclosure reduces EMI
• 3.3V power supply
• Hot pluggable
• Multi-vendor device support
• Up to 550m on 50/125µ multimode
• Up to 275m on 62.5/125µ multimode
• Up to 1.25Gbps bi-directional (Gigabit)
• Up to 1.0625Gbps bi-directional (Fiber
Channel)
