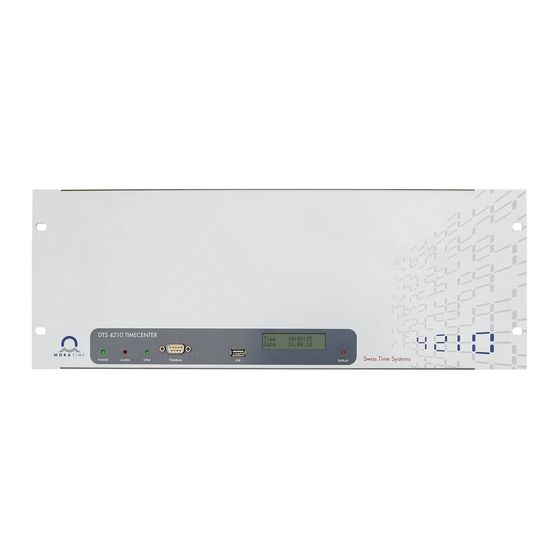

Network – time server and master clock
Hide thumbs Also See for DTS 4210.timecenter:
Table of Contents

Advertisement

Quick Links

Download this manual

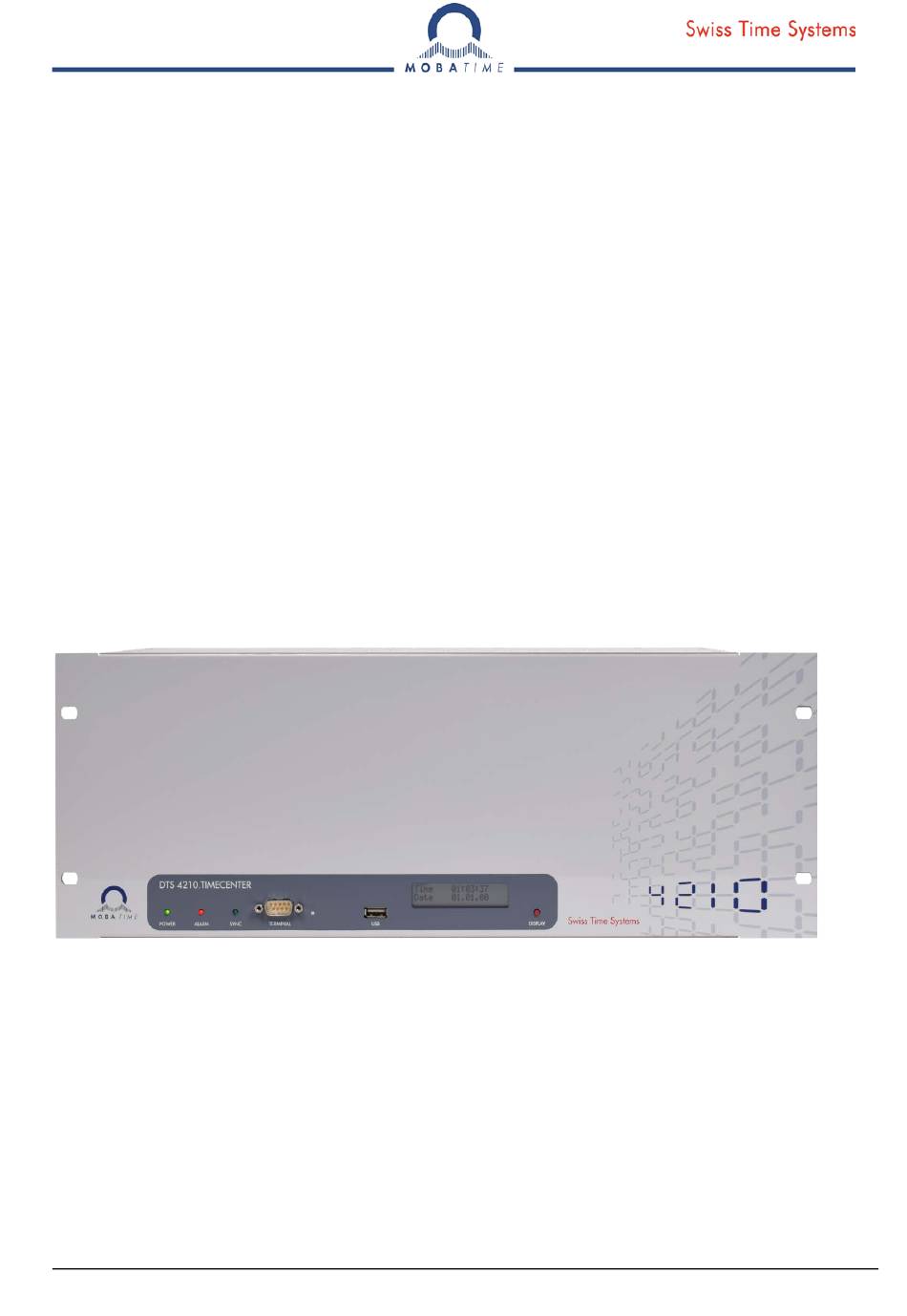

MOUNTING AND
INSTRUCTION MANUAL
DTS 4210.timecenter
Network – Time Server and Master Clock
Important Note:
This Manual is applicable for Firmware version 2018-11-27 and
newer. For older Firmware version please use the User-Manual BE-
801214.09
© MOBATIME
1 / 124
BE-801203.10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTS 4210.timecenter and is the answer not in the manual?

Questions and answers

Related Manuals for Mobatime DTS 4210.timecenter

Summary of Contents for Mobatime DTS 4210.timecenter

  • Page 1 MOUNTING AND INSTRUCTION MANUAL DTS 4210.timecenter Network – Time Server and Master Clock Important Note: This Manual is applicable for Firmware version 2018-11-27 and newer. For older Firmware version please use the User-Manual BE- 801214.09 © MOBATIME 1 / 124...
  • Page 2 It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.

  • Page 3: Table Of Contents

    Connection diagrams ....................... 94 Time zone table ......................104 Alarm list ........................106 Troubleshooting ......................108 Serial Telegrams......................109 Copyright Notice ......................114 Technical data ....................... 115 Index ..........................119 Connection table (to fill in) ..................... 121 © MOBATIME 3 / 124 801203.10...
  • Page 4 Connections ............15 Time acceptance ..........79 Chassis Ground ..........15 Stratum handling ..........80 Boot procedure of the DTS 4210.timecenter ..15 Source change example situation ..... 81 Initial configuration ..........15 Time server ............81 Firmware ............15 Time accuracy, time-keeping ......
  • Page 5 Plug-in spring terminals ........103 B Time zone table ..........104 C Alarm list ............106 D Troubleshooting ..........108 E Serial Telegrams .......... 109 General ............109 Syntax of the telegram configuration file ..110 © MOBATIME 5 / 124 801203.10...

  • Page 6: Safety

    Notice! Additional information for the use of the device. Intended Use The DTS 4210.timecenter is a primary reference clock (PRC), Grandmaster and Timeserver for the high accurate synchronization of various equipment’s and for the use in large network environments. It receives time information from GNSS. An intelligent time management ensures lasting high accuracy by continuously compensating oscillator drift and aging.

  • Page 7: Observe Operating Safety

    Please observe the electromagnetic compatibility! • This device complies with the requirements of the EMC and the Low-voltage Directive. Caution! © MOBATIME 7 / 124 801203.10...

  • Page 8: Maintenance

    Return your device to your supplier who will dispose of it correctly. Packaging Your device is packaged to protect it from damages during transport. Packaging is made of materials that can be disposed of in an environmentally friendly manner and properly recycled. © MOBATIME 8 / 124 801203.10...

  • Page 9: General Information: Introduction

    This instruction manual is for the time server DTS 4210.timecenter. Introduction The DTS 4210.timecenter is a primary reference clock (PRC), Grandmaster and Timeserver for high accurate synchronization of various equipment’s and for the use in large network environments. It can be synchronized over GNSS, PTP, High Precision DCF and E1.

  • Page 10: Device Types

    Device types Model: Features: Product no.: According to above description with DTS 4210.timecenter 121059 rubidium oscillator DTS Distributed Time System DTS (Distributed Time System) is a system developed by Moser-Baer AG to distribute time information to decentralized master clocks, slave clock lines and time servers or send synchronization signals to any other equipment.

  • Page 11: Moba-Nms - Network Management System

    MOBA-NMS is software used for central management and inquiry of state and alarm information. It supports DTS devices as well as all MOBATime analog and digital network clocks and can handle a network with more than 1000 devices. This software provides extensive functions for the configuration, installation, back-up / recovery etc.

  • Page 12: Displays

    DTS 4210 is synchronized to the time source No synchronization to the time source. No output signals available. LED indication back side Description Color Status Description DCF in Blinking Blinking when pos. edge received on the input. © MOBATIME 12 / 124 801203.10...
  • Page 13 Network activity No activity Lower Green Link 100 Mbit & 1 Gbit No Link LAN RJ45 control lamps: Left Green Link 100 Mbit & 1 Gbit No Link Right Yellow Blinking Network activity No activity © MOBATIME 13 / 124 801203.10...

  • Page 14: Display

    Scroll through all displays Press button longer (>3 sec): Change to default display (time and date) The display changes after approx. 3 min without pressing the button for the default display and the background light goes off. © MOBATIME 14 / 124 801203.10...

  • Page 15: Installation

    Firmware It is recommended to install the current firmware on your device prior to the definite commissioning. The current firmware can be found under www.mobatime.com  Customer Data  Product Resources  Time Server. Basic settings (factory settings) The basic settings can be found in the table in Appendix “G Parameters”.

  • Page 16: Operation

    Username: dts Password: dts Linux: Start console and enter “telnet [IP-address] 6.1.2 Windows XP, Vista, Windows 7, 8, 10: e.g. with Putty Username: dts Password: dts Linux: Start console and enter “ssh dts@[IP address]“ © MOBATIME 16 / 124 801203.10...

  • Page 17: Menu Structure

    6.1.3 Menu structure DTS 4210.timecenter Moser-Baer AG ==================================== TIME SOURCE menu title Source type Time zone of the source [0] UTC parameters Alarm delay for failure of the source 60min DTS stratum (0=auto, 1-15=fix) menu options Stratum limit for synchalarm...

  • Page 18: Moba-Nms Operation

    (called „tabs“). These tabs are connected to the terminal menu and designated accordingly. Example: The terminal menu „Configuration  Alarms“ can be found in MOBA-NMS under the tab „Alarms“. Configuration example of a DTS 4210.timecenter: configuration pages (tabs) For further details on the general MOBA-NMS operation, check the integrated online help (menu „Help ...

  • Page 19: Main Menu

    Main menu DTS 4210.timecenter Moser-Baer AG ==================================== MAIN SELECTION Status (Actual alarms and history, timesource state, version Configuration (Configuration of the lines, timesources, alarms ...) Maintenance (Update, backup ...) 99 Exit DTS menu Enter desired menu number> Menus: Status: Display of various information regarding operation and environment See chapter “6.4 Status menu“...
  • Page 20 DTS 4210 system information display (internal status, regulation voltage of the oszillator..). This information is for support purposes only. Product information like serial number, firmware version etc. All respective software versions of the DTS 4210 components. Status menu page 2: DTS 4210.timecenter Moser-Baer AG ==================================== CLOCK STATE Page 2/2...

  • Page 21: Time Status Information

    6.4.1 Time status information DTS 4210.timecenter Moser-Baer AG ==================================== TIME STATUS INFORMATION PAGE 1/2 Internal time of the DTS (local time) 10:11:47 26.01.15 Stratum and state of DTS MASTER TAI Offset Time source GNSS Last time information from source 09:11:44 26.01.15 UTC...
  • Page 22 MOBA-NMS: Tab: Overview, Frame; Time, time state © MOBATIME 22 / 124 801203.10...

  • Page 23: Time Source Information

    6.4.2 Time source information All sources overview DTS 4210.timecenter Moser-Baer AG ==================================== TIMESOURCE INFORMATION PAGE 1/8 Source GNSS RED. LINK DCF-HQ Configured Locked Priority Offset Offset [ns] Stability [ppb] Rating 99 Return Enter desired menu number> Path: 1 Status  4 Local source Source information (GNSS, RED.

  • Page 24: Network Diagnostic

    6.4.3 Network diagnostic DTS 4210.timecenter Moser-Baer AG ==================================== NETWORK DIAGNOSTIC Ping Routing table 99 Return Enter desired menu number> Path: 1 Status  14 Network diagnostic It is possible to configure a ping command and to show the routing table of the device Ping DTS 4210.timecenter...

  • Page 25: Ptp Information

    6.4.4 PTP information PTP instances DTS 4210.timecenter Moser-Baer AG ==================================== PTP INSTANCE LAN2 IP1 LAN2 IP2 LAN3 IP1 LAN3 IP2 LAN4 IP1 LAN4 IP2 99 Return Enter desired menu number> Path: 1 Status  15 Info PTP See the status of the running PTP instances. It is possible to configure two IP addresses per LAN interface.

  • Page 26: Configuration Menu

    Configuration menu DTS 4210.timecenter Moser-Baer AG ==================================== CONFIGURATION Outputs Time handling Alarms General Network VLAN configuration Services (FTP, telnet, SSH) SNMP 99 Return Enter desired menu number> Path: 2 Configuration Configuring the DTS 4210 through various submenus: Configuring the lines / outputs (DCF/pulse/frequency, serial interfaces, IRIG/AFNOR/DCF-FSK and NTP slave clock line) See chapter "6.5.1 Outputs"...

  • Page 27: Outputs

    6.5.1 Outputs Under “Outputs”, settings can be undertaken for the following functions: DTS 4210.timecenter Moser-Baer AG ==================================== CONFIGURATION LINES DCF outputs pulse / frequency outputs Serial lines IRIG outputs E1 signals NTP slave clock / time zone server 99 Return Enter desired menu number>...

  • Page 28: Dcf - Output

    6.5.2 DCF – output The DTS 4210 is equipped with 4 DCF output lines. These lines are available on the electrical current loop DCF outputs 1-4. DTS 4210.timecenter Moser-Baer AG ==================================== DCF OUTPUT Mode (0=off, 1=on) Time zone [0] UTC...

  • Page 29: Serial Interface

    6.5.4 Serial interface Serial telegram output via RS232, RS422 or RS485. DTS 4210.timecenter Moser-Baer AG ==================================== SERIAL OUTPUT Mode (0=off, 1=on) Time zone [0] UTC Com Mode Baudrate 19200 Databit Stopbit Parity none Telegram file MC482STD.TEL 98 Return and save 99 Return and discard changes Enter desired menu number>...
  • Page 30 Selection of the telegram file: DTS 4210.timecenter Moser-Baer AG ==================================== SELECTION OF FILE Page 1 00: MC482STD.TEL 01: MC482UTC.TEL Enter requested file number Press enter for next part, ESC to leave> Path: 2 Configuration  1 Outputs  3 Serial line  Serial out 1  8 Telegram file The copy procedure of telegram files is explained in chapter "7.10 Copying Telegram...

  • Page 31: Irig / Afnor / Dcf-Fsk Output

    6.5.5 IRIG / AFNOR / DCF-FSK Output DTS 4210.timecenter Moser-Baer AG ==================================== IRIG OUTPUT Mode Time zone [0] UTC Level (~Upp @ Ri=Rl=50Ohm) 2000mV 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  1 Outputs  4 IRIG outputs  1 IRIG out 1 1.

  • Page 32: E1 Signals

    = Send an empty time zone table and return to previous mode. 2. Multicast adress for NTP and time zone server: 239.192.54.x Group address: x = 1-15 for MOBATIME devices, e.g. NMI, SEN 40. © MOBATIME 32 / 124...
  • Page 33 Path: 2 Configuration  1 Outputs  5 NTP slave clocks / time zone server  8 Configure time zone table Display of all time zone entries (15) of time zone servers for NTP slave clock lines. Choose a zone number to change selected zone. © MOBATIME 33 / 124 801203.10...
  • Page 34 2. Click on “Time zones…” to define the list of time zones, sent to slave clocks. 3. In the list of time zones you can define up to 15 different time zones for slave clocks, e.g. for a World Time Clock. © MOBATIME 34 / 124 801203.10...

  • Page 35: Time Handling

    • For setting the time manually  see chapter “6.5.13 Manual time set / Leap second“ • PTP Configuration  see chapter "6.5.14 PTP Configuration " • GNSS setting  see chapter “6.5.15 GNSS settings " MOBA-NMS: Tab: Time handling © MOBATIME 35 / 124 801203.10...

  • Page 36: Time Source

    6.5.9 Time source Time source configuration. DTS 4210.timecenter Moser-Baer AG ==================================== TIME SOURCE Source configuration Alarm delay for failure of the source 1min DTS stratum (0=auto, 1-15=fix) Stratum limit for synchalarm Stratum TO (1-16) source fail 999h Stratum change source fail default Max.
  • Page 37 Time Source Priority configuration DTS 4210.timecenter Moser-Baer AG ==================================== TIME SOURCE PRIORITY Source Priority1 GNSS Source Priority2 NONE Source Priority3 NONE Source Priority4 NONE Source Priority5 NONE Source Priority6 NONE Priority Mode manual 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 38: Time Adjustment / Time-Keeping

    6.5.10 Time adjustment / Time-keeping DTS 4210.timecenter Moser-Baer AG ==================================== TIME ADJUSTMENT CONFIGURATION Adjust mode (0=follow, 1=set) Max. catch up speed 1ns/s Time core type (0-255, default 0) Synch. only offset RTC mode 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 39: Redundant Operation Settings

    6.5.11 Redundant operation settings DTS 4210.timecenter Moser-Baer AG ==================================== REDUNDANT OPERATION Max. offset to slave source 1000ns Set master manually 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  2 Time handling  3 Redundant operation Max.
  • Page 40 Configuration of the NTP authentication: The NTP authentication is described in chapter "8.10 NTP Authentication“. DTS 4210.timecenter Moser-Baer AG ==================================== NTP AUTHENTICATION Import keys (from /ram) Export keys (to /ram) Trusted (active) keys Request keys (ntpq) Control keys (ntpdc) Autokey password...
  • Page 41 NTP Multicast Configuration Configuration of the Multi- / Broadcast address is as follows: DTS 4210.timecenter Moser-Baer AG ==================================== NTP MULTI- / BROADCAST-ENTRY Multi- or broadcast IP address 254.192.1.1 Interval 4sec TTL (only for multicast) 1hops Authentication key 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 42: Ptp Configuration

    1. LAN interface for the PTP time source, PTP slave (LAN2 – LAN4) 2. Max offset to PTP Master to trigger the alarm “Time source big offset“ (100ns – 5’000’000ns) PTP configuration page 1: DTS 4210.timecenter Moser-Baer AG ==================================== PTP CONFIGURATION...
  • Page 43 1..15, default 15 (0xE) 6. Priority 1 0-255, default 128 7. Priority 2 0-255, default 128 Press ENTER to change to page 2. PTP configuration page 2: DTS 4210.timecenter Moser-Baer AG ==================================== PTP CONFIGURATION config 1 PAGE 2/3 Domain LOG Announce interval...
  • Page 44 PTP configuration page 3: DTS 4210.timecenter Moser-Baer AG ==================================== PTP CONFIGURATION config 1 PAGE 3/3 Master Only False Request duration 3600 Local Priority 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  2 Time handling  5 PTP function  1 PTP config 1 [Enter] [Enter] 15.

  • Page 45: Gnss Settings

    6.5.14 GNSS settings DTS 4210.timecenter Moser-Baer AG ==================================== GNSS SETTINGS Total Antenna delay (ns) Fixed Position Mode (FPM) (0=off, 1=on) FPM minimum observation time (sec) 86400sec FPM minimum position accuracy (mm) 1000mm Min. number of satellites Min. signal level of satellites (dbHz)

  • Page 46: Dcf Settings

    6.5.15 DCF settings DTS 4210.timecenter Moser-Baer AG ==================================== DCF SETTINGS Offset correction value Max offset to source 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  2 Time handling  7 DCF settings 1.

  • Page 47: Manual Time Set / Leap Second

    6.5.17 Manual time set / Leap second DTS 4210.timecenter Moser-Baer AG ==================================== MANUAL TIME SET Set time (UTC) Adjust time Leap second mode Leap second date (UTC) 00:00:00 01.07.15 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 48: Alarms

    Alarm relay  see chapter 6.5.19 • E-mail  see chapter 6.5.21 • SNMP traps  see chapter 6.5.22 6.5.19 Alarm relay DTS 4210.timecenter Moser-Baer AG ==================================== ALARM CONFIGURATION 2 Alarmmask for relay 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 49: Alarm Mask

    6.5.20 Alarm mask DTS 4210.timecenter Moser-Baer AG ==================================== ALARMMASK Page 1 [ ]=error disabled, [*]=error enabled [*] Bit00: DTS restart [*] Bit01: System warning [*] Bit02: Supply voltage too low [*] Bit03: Failure supply 1 [*] Bit04: Internal voltage to low [*] Bit05: Error bit5...

  • Page 50: E-Mail

    6.5.21 E-mail DTS 4210.timecenter Moser-Baer AG ==================================== MAIL CONFIGURATION Page 1 Mailmode Alarmmask for mail ff ff ff ff ff ff ff ff Mailserver Mailport (default 25) Destination mail address1 Destination mail address2 Reply mail address From mail address 98 Return and save 99 Return and discard changes Enter desired menu number>...
  • Page 51 E-mail configuration page 2: DTS 4210.timecenter Moser-Baer AG ==================================== MAIL CONFIGURATION Page 2 11 Authentication mode 12 User name 13 Password 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  3 Alarms  2 E-Mail [Enter] 11.

  • Page 52: Snmp Traps

    6.5.22 SNMP traps For a description of SNMP functionality, see also chapter “9 SNMP“. Traps are also designated as notifications (from SNMP V2) DTS 4210.timecenter Moser-Baer AG ==================================== SNMP-TRAP CONFIGURATION Trap mode Alarmmask for trap ff ff ff ff ff ff ff ff...
  • Page 53 Configuration of the receiving systems DTS 4210.timecenter Moser-Baer AG ==================================== SNMP-TRAP DESTINATION CONFIGURATION Address trap destination Port trap destination (default 162) SNMP version 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  3 Alarms  3 Traps  4 Configuration of destination 1 1.

  • Page 54: General Settings

    6.5.23 General settings DTS 4210.timecenter Moser-Baer AG ==================================== GENERAL SETTINGS Language (info only) English Timezone displayed times [+1] Brussel Power (0=single, 1=red.) Password (menu) 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  4 General Device/Display language Setting the time zone for the display, and also all alarm logs, e-mail and SNMP.

  • Page 55: Network

    6.5.24 Network DTS 4210.timecenter Moser-Baer AG ==================================== NETWORK INTERFACES LAN 1 LAN 2 LAN 3 LAN 4 LAN 5 LAN 6 LAN 7 LAN 8 LAN 9 10 LAN 10 11 LAN 11 12 LAN 12 13 LAN 13 14 LAN 14...
  • Page 56 Network Interface 1 – Page 1 DTS 4210.timecenter Moser-Baer AG ==================================== NETWORK GENERAL LAN 1 PAGE 1/2 IPV4 configuration IPV6 configuration Network interface config auto Host name (Device name) dts4210 Domain name IPv4 static routing 98 Return and save, ENTER for next part 99 Return and discard changes Enter desired menu number>...
  • Page 57 Network Interface 1 – Page 2 DTS 4210.timecenter Moser-Baer AG ==================================== NETWORK GENERAL LAN 1 PAGE 2/2 11 Link aggregation 12 VLAN config for IP1 13 VLAN config for IP2 14 PTP config 15 SyncE ESMC config 98 Return and save, ENTER for next part 99 Return and discard changes Enter desired menu number>...
  • Page 58 Network configuration IPv4: DTS 4210.timecenter Moser-Baer AG ==================================== NETWORK IPV4 LAN 1 DHCP IP address 1 192.168.0.10 Subnet mask 1 255.255.255.0 Gateway 1 192.168.0.1 IP address 2 192.168.1.10 Subnet mask 2 255.255.255.0 Gateway 2 192.168.1.1 DNS server 192.168.0.7 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 59: Link Aggregation Lag

    This device supports aggregation of two physical Ethernet ports to one logical high- bandwidth data path (LAG) compatible to IEEE 802.3ad. LAG can be used for fault tolerance (redundancy) and/or load balancing. DTS 4210.timecenter Moser-Baer AG ==================================== NETWORK LINK AGGREGATION...

  • Page 60: Ipv4 Static Routing

    (e.g. LAN2 for LAG1, LAN6 for LAG2,…) Activate LAG LAG configuration 6.5.26 IPv4 static routing For each LAN port up to 2 static routing destinations for IP1 and IP2 can be defined: DTS 4210.timecenter Moser-Baer AG ==================================== NETWORK IPV4 STATIC ROUTING LAN 1 IP1 network destination 1 / Prefix 0.0.0.0/24...

  • Page 61: Vlan Configuration

    6.5.27 VLAN configuration This device supports tagged VLAN (virtual LANs) configuration options compatible to IEEE 802.1p/1q. You can define up to 16 different VLAN configurations. DTS 4210.timecenter Moser-Baer AG ==================================== VLAN CONFIGURATION VLAN 1 Name 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 62: Services (Network Services Ftp, Telnet, Ssh

    6.5.28 Services (network services FTP, telnet, SSH...) Network services configuration: DTS 4210.timecenter Moser-Baer AG ==================================== NETWORK SERVICES telnet ssh, scp, sftp 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  7 Services (FTP, telnet, SSH) 1.-3.

  • Page 63: Snmp

    6.5.29 SNMP For a description of SNMP functionality, see also chapter “9 SNMP“. DTS 4210.timecenter Moser-Baer AG ==================================== SNMP CONFIGURATION SNMP mode Alarmmask for SNMP ff ff ff ff ff ff ff ff DTS location Contact information SNMP V1/V2c security configuration...

  • Page 64: Snmp V1 / V2C

    6.5.30 SNMP V1 / V2c DTS 4210.timecenter Moser-Baer AG ==================================== SNMP V1/V2c CONFIGURATION Readonly community string romobatime Read/write community string rwmobatime 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  8 SNMP  5 SNMP V1/V2c security configuration Community string for read only (Group membership for GET).
  • Page 65 User configuration SNMP V3: DTS 4210.timecenter Moser-Baer AG ==================================== SNMP V3 USER CONFIGURATION dtsUser1 Password for authent. and privacy mobatime Min security level auth Read access (read view) _all_ Write access (write view) viewDTS1 98 Return and save 99 Return and discard changes Enter desired menu number>...
  • Page 66 Access configuration SNMP V3: DTS 4210.timecenter Moser-Baer AG ==================================== SNMP V3 ACCESS CONFIGURATION viewDTS1 Include OID 1 .1.3.6.1.4.1.8072 Include OID 2 .1.3.6.1.4.1.2021 Include OID 3 .1.3.6.1.4.1.13842.4 Exclude OID 1 Exclude OID 2 Exclude OID 3 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 67: Time Zone Selection

    6.5.32 Time zone selection DTS 4210.timecenter Moser-Baer AG ==================================== SELECTION TIME ZONE Page 1 00: [0] UTC 01: [0] London * 02: [+1] Brussel 03: [+2] Athens 04: [+2] Bucharest 05: [+2] Cairo 06: [+2] Amman 07: [0] UTC 08: [+3] Kuwait...

  • Page 68: Maintenance Menu

    Maintenance menu DTS 4210.timecenter Moser-Baer AG ==================================== MAINTENANCE Update software (FTP) Update software (USB) Backup configuration and log to USB Backup configuration (local backup) Restore configuration (local backup) Restore configuration (default MOBA) Restart device Copy telegram files 99 Return Enter desired menu number>...
  • Page 69 The “Commands” menu can be also opened by clicking on “Command Icon”. The following functions can be started via Menu “Edit”: - Backup / Restore / Transfer configuration - Reset to factory settings - Export log files and configuration for support © MOBATIME 69 / 124 801203.10...

  • Page 70: Updates

    Starting up after an update can also take some minutes (<10 min), or it can result in an additional restart, as the file systems have to be checked first. To eliminate any mistakes during update procedure, the versions should be verified after the update. © MOBATIME 70 / 124 801203.10...

  • Page 71: Updating Applications Or Configurations With Ftp

    Starting up after an update can also take some minutes (<10 min), or it can result in an additional restart, as the file systems have to be checked first . To eliminate any mistakes during update procedure, the versions should be verified after the update. © MOBATIME 71 / 124 801203.10...

  • Page 72: Updating Applications Or Configurations Via Usb

    In case of an interruption, the software on the DTS 4210 is destroyed and can only be repaired in the factory. To eliminate any mistakes during the update procedure, the versions should be verified after the update. © MOBATIME 72 / 124 801203.10...

  • Page 73: Ftp Connection

    Programs (examples) CuteFTP Kbear SFTP connection SFTP = SSH File Transfer Protocol SFTP tools Vista, Windows 7, 8, 10 Linux (Suse, Redhat) Integrated in the system Konqueror / Dolphin (file manager): Programs (examples) WinSCP © MOBATIME 73 / 124 801203.10...

  • Page 74: Scp Connection

    Change to the DTS 4210 directory /etc. Save the file dts4210.conf (configuration) to the user PC (e.g. copy the file to the Desktop or to the directory My Documents). Additionally also save possible telegram files from the directory /var/local/dts. © MOBATIME 74 / 124 801203.10...

  • Page 75: Copying Telegram Files To The Dts

    Notice: After the file copy procedure, the output of the telegram files are re-started (take over of the files). Notice: The file name is limited to 8 characters before the dot, e.g. IF482Std.tel © MOBATIME 75 / 124 801203.10...

  • Page 76: Time Administration

    NTP slave clocks / time zone server chapter 6.5.23 General settings NTP is always UTC GPS is always UTC PTP is always TAI (PTP timescale) **** SyncE and E1 contains no local time information © MOBATIME 76 / 124 801203.10...

  • Page 77: Synchronization Process & Diagram

    6. If for some reason no source is available, the device goes into holdover mode (based on internal oscillator). 7. The DTS regularly updates its synchronization status based only on the active source. Such contains stratum calculation and synchronization alarms (e.g. Big offset to time source). © MOBATIME 77 / 124 801203.10...
  • Page 78 © MOBATIME 78 / 124 801203.10...

  • Page 79: Time Acceptance

    Adjust immediately (Adjust Mode = set):  this mode is currently not implemented! Manual time set: The time is always set immediately. The stratum is set to 1. Notice: Manual time setting is intended to use only for testing purposes. © MOBATIME 79 / 124 801203.10...

  • Page 80: Stratum Handling

    Max Stratum value: 1..16, configurable stratum limit current time [s]: current time (can be found in the overview => time state) last synch time [s]: time of the last synchronization (can be found in the overview => time state) © MOBATIME 80 / 124 801203.10...

  • Page 81: Source Change Example Situation

    • SNTP (UDP), RFC 4330 (port 123) • PTP (UDP), IEEE 1588-2008 (V2) (ports 319 and 320) • TIME (TCP/UDP), RFC 868 (port 37) • DAYTIME (TCP/UDP), RFC 867 (port 13) Time accuracy, time-keeping See appendix H Technical data. © MOBATIME 81 / 124 801203.10...

  • Page 82: Leap Second

    In this case the leap second adjustment will be executed at the exact date and time even if the GPS reception is not sufficient.  This procedure is recommended by Mobatime! GNSS Receiver: The GNSS satellite system transmits the information of a Leap Second adjustment at an arbitrary number of months in advance.

  • Page 83: Leap Second Alert Notification On Dts 4210 Outputs

    Time & date of last implemented Leap second (since the last reboot) A Leap Second implementation is also logged in the dts log file (/var/log/dts.log) on the device.  Please see chapter 7.6 how to make a ftp connection to the device. Implementation in MOBA-NMS © MOBATIME 83 / 124 801203.10...

  • Page 84: Ntp Authentication

    The keys are located in the ntp.keys file defined with keys. This has the following format: TestTest df2ab658 I_see! 498 M NTPv4.98 © MOBATIME 84 / 124 801203.10...

  • Page 85: Ntp Autokey

    IEC/IEEE 61850-9-3, IEEE 802.1AS,ITU-T G8265.1, ITU-T G8275.1, ITU-T G8275.2 SNMP: no specific PTP SNMP MIB Every PTP Interface can operate as a master in a different Ethernet network. Only one PTP interface can be slave. © MOBATIME 85 / 124 801203.10...

  • Page 86: Synchronous Ethernet (Synce)

    This takes normally up to 10 minutes. In the worst case this can take up to 2 hours, but this is really rare. For operation with E1 line, the rubidium oscillator is the recommended option. © MOBATIME 86 / 124 801203.10...

  • Page 87: Redundant Operation Of 2 Dts 4210.Timecenter

    8.14 Redundant operation of 2 DTS 4210.timecenter For redundant operation two DTS 4210 devices are synchronized via optical fibers. For this purpose, a mini GBIC module is plugged into both devices and connected via optical fibres (see Appendix H Technical data): mini GBIC module In this scenario both devices have a GPS receiver (GNSS source priority 1).

  • Page 88: Logfile Synchronization Status

    0 ( ) 104 (+) 0 ( ) 0 ( ) 96 (*) 0 ( ) (*) = active source  Please see chapter 7.6 how to make a ftp connection to the device. © MOBATIME 88 / 124 801203.10...

  • Page 89: Snmp

    (DTS4210-MIB.TXT) Device-specific DTS definitions MIB-Files copy from DTS device: The MIB files can be copied from the DTS 4210 with FTP (For FTP use, see chapter “7.6 FTP connection“): DTS-MIB: /etc/snmp/mibs/ Standard MIBS: /usr/share/snmp/mibs/ © MOBATIME 89 / 124 801203.10...

  • Page 90: Device Configuration With Snmp

    9.3.2 Shutdown [dts4210Shutdown] Sent out when the subagent for the DTS is stopped. This Notification is always sent out, as soon as SNMP is activated and a destination address is configured. © MOBATIME 90 / 124 801203.10...

  • Page 91: Status Changed [Dts4210Statuschanged]

    TimeTicks 4 Bytes dts4210OutLineIRIG dts4210OutLineE1ConfigChangedTime TimeTicks 4 Bytes dts4210OutputLinesE1 dts4210OutLineTZServerConfigChangedTime TimeTicks 4 Bytes dts4210OutLineTZServer dts4210RelayConfigChangedTime TimeTicks 4 Bytes dts4210AlarmRelayConfig dts4210MailConfigChangedTime TimeTicks 4 Bytes dts4210AlarmMailConfig dts4210SnmpConfigChangedTime TimeTicks 4 Bytes dts4210SnmpConfig dts4210SnmpV3ConfigChangedTime TimeTicks 4 Bytes dts4210SnmpV3 © MOBATIME 91 / 124 801203.10...

  • Page 92: Alive Notification [Dts4210Alive]

    1 Byte 0 = alarm bit was deleted 1 = alarm bit was set 946684805 dts4210TrapAlMsgErrorTime Unsigned 4 Bytes PC-time in seconds since 01.01.1970 00:00:00 Failure supply 1 dts4210TrapAlMsgErrorText Text 59 Bytes Error text © MOBATIME 92 / 124 801203.10...

  • Page 93: Redundant Power Supply

    In the menu: ‘2 Configuration’  ‘4 General’  ‘3 Power’ must be set to Notice: '1=redundant'. Notice: All power supply inputs are working and can be used regardless off the configuration. The configuration advises the DTS to supervise both power supplies and generate a possible alarm. © MOBATIME 93 / 124 801203.10...

  • Page 94: A Connection Diagrams

    Data Terminal Ready Request to Send Clear to Send Clear to Send Request to Send * At least needed connections. USB connection: Plug: USB host Notice: Only permitted for operations with a USB stick! © MOBATIME 94 / 124 801203.10...

  • Page 95: Connections (Rear View)

    Max. load: 30 W (30 VDC or 1A) Alarm relay or 60 VA (60 VAC or 1A) Chassis ground Ground lug The DTS 4210 must be connected to an earth ground via the chassis ground lug © MOBATIME 95 / 124 801203.10...
  • Page 96 √ √ √ √ √ LAN13 √ √ √ √ √ √ √ √ LAN14 √ √ √ √ √ √ √ √ √ LAN15 √ √ √ √ √ √ √ √ LAN16 © MOBATIME 96 / 124 801203.10...
  • Page 97 Pulse output, “current loop” passive, = 30VDC, I = 10..15mA, I < 1mA @20VDC Puls Out CL- IRIG Digital OUT+ AFNOR-A/C, IRIG-B1xx and DCF-FSK output for IRIG line (digital, 50 Ohms) IRIG Digital GND © MOBATIME 97 / 124 801203.10...
  • Page 98 DCF current loop input for the connection of a GPS4500 Sup + DC output 28 VDC, max. 100mA (or according to the DC in Sup - voltage) Antenna N-Female connector (see chapter A.3 Installation instruction GPS antenna) © MOBATIME 98 / 124 801203.10...

  • Page 99: Installation Instruction Gps Antenna

    With a viewing angle of less than 90°, it is to be expected that the device will not be able to receive a signal at all times of day. The antenna should only be mounted using the mounting fixtures provided. A.3.2 Installation of the lightning protection All dimensions in millimeters (mm). © MOBATIME 99 / 124 801203.10...

  • Page 100: Distance Between Antenna And Dts 4210

    The length of Cable A plus Cable B shouldn’t exceed the maximum length from the table. Notice: Every additional cable adapter attenuates the signal. A typical attenuation of a SMA to N jack adapter is about 0.1 dB © MOBATIME 100 / 124 801203.10...

  • Page 101: Inline Amplifier

    In the end Cable A + Cable B + Cable C can use the 36dB from the antenna and the 21 bB from the inline amplifiere, but we do not recommend, that Cable A and Cable B use the whole 36 dB from the antenna. © MOBATIME 101 / 124 801203.10...
  • Page 102 (see drawing =>) Environmental Temperature range -40°C to +85°C Specifications Protection IP65 (according to IEC 60529, data refer to the coupled state) For complete Lightning Protector data sheet and more mounting instructions see: http://www.hubersuhner.com/ProdDet/3019289 © MOBATIME 102 / 124 801203.10...

  • Page 103: Plug-In Spring Terminals

    Rated voltage: EN 250 V Rated surge voltage: 2,5 kV Nominal current: 10 A Strip length: 7 mm (0,28 in) Pulled off spring terminal with operation tool: 2 operation tools are delivered with the accessory bag. © MOBATIME 103 / 124 801203.10...

  • Page 104: B Time Zone Table

    -3.5 Sun. Mar. (02:00) Sun. Nov. (02:00) Atlantic Time (Canada) Sun. Mar. (02:00) Sun. Nov. (02:00) La Paz Bogota, Lima, Quito New York, Eastern Time (US & Canada) Sun. Mar. (02:00) Sun. Nov. (02:00) © MOBATIME 104 / 124 801203.10...
  • Page 105 The Time Zone Table is usually updated as needed. The current table is available for download under the following address: www.mobatime.com  Customer Area  Customer Support  Support Resources  Time Zone Table. In case your device is equipped with a newer version than shown in this manual, the current time zone settings should be checked.

  • Page 106: C Alarm List

     Check redundant link No connection via optical link in No DTS link (optical) redundant operation. connection.  Optionally, check the time Change Switch over slave -> master has Slave->Master occurred. source of current slave. © MOBATIME 106 / 124 801203.10...
  • Page 107 Internal Warning for board 2 dts_ext1.log file For more information check the Extension 2 Warning Internal Warning for board 3 dts_ext2.log file For more information check the Extension 3 Warning Internal Warning for board 4 dts_ext3.log file © MOBATIME 107 / 124 801203.10...

  • Page 108: D Troubleshooting

    The system software can be updated using FTP update client software or a USB stick (s. chapter 7 Updates). Your MOBATIME service informs you of use and necessity of a software update. If necessary, they can provide the needed firmware file. Needed information to...

  • Page 109: E Serial Telegrams

    2.08 2.29 2.29 2.50 9600 bit/s 0.94 1.04 1.04 1.15 1.04 1.15 1.15 1.25 19200 bit/s 0.47 0.52 0.52 0.57 0.52 0.57 0.57 0.63 38400 bit/s 0.23 0.26 0.26 0.29 0.26 0.29 0.29 0.31 © MOBATIME 109 / 124 801203.10...

  • Page 110: Syntax Of The Telegram Configuration File

    (0..999) ;HSE (Hundredth of a second) (0..99) ;ZSE (Tenth of a second) (0..9) ;SEK (Second) (0..59) ;MIN (Minute) (0..59) ;STD (12h or 24h format) (0..12) or(0..24) 1B (see !PM!) ;JAR (Year) (0..99) or (1990..2089) © MOBATIME 110 / 124 801203.10...
  • Page 111 ('00..59') ;ss = second ('00..59') ;e.g.1 telegram output every second !TI!s! ;e.g.2 telegram output daily at 13:00:00 hours !TI!d!13:00:00! ;e.g.3: the interval of the periodic time output should be 5 seconds: !TI!p!00:00:05! ;-------------------------------------------------------------------- © MOBATIME 111 / 124 801203.10...
  • Page 112 ;aa = first character considered (telegram start position: 0) ;bb = last character considered + 1 ;Missing !CK! in this case the check sum is formed via the whole telegram up to the ;check sum position. ;-------------------------------------------------------------------- © MOBATIME 112 / 124 801203.10...
  • Page 113 2) If a file with the same name is loaded on to the CTC, such as one stored on the CTC, the stored one will be OVERWRITTEN. ;e.g. !EE! @TELEDEF.TEL ;last line ;-------------------------------------------------------------------- ;last line (guarantees a <CR> after the file name) © MOBATIME 113 / 124 801203.10...

  • Page 114: F Copyright Notice

    Licence text GPL, BSD and MIT: GPL version 2: http://www.gnu.org/licenses/gpl-2.0.html BSD: http://www.opensource.org/licenses/bsd-license.php http://www.opensource.org/licenses/with-license.php The source code of the open source projects running under GPL can be requested from Moser-Baer AG (support@mobatime.com). Handling costs will be charged! © MOBATIME 114 / 124 801203.10...

  • Page 115: G Technical Data

    (TCP/UDP), RFC 868 (Port 37) DAYTIME (TCP/UDP), RFC 867 (Port 13) Max. number of NTP and SNTP client requests: > 5’000 requests / sec. per port (e.g. client request every 60 sec.  300’000 clients) © MOBATIME 115 / 124 801203.10...
  • Page 116 TCP, Port selectable (25) alarm mail see E-Mail DHCP UDP, Port 68 dyn. address allocation (client) TCP/UDP, Port 53 address resolution (client) DHCPv6 only IPV6 ECHO ICMP “Ping“ SNMP V1, V2c, V3 with MD5 for authentication and DES for encryption (privacy). © MOBATIME 116 / 124 801203.10...
  • Page 117 Stop bit: 1 or 2, no flow control The description of the telegram function is provided in Appendix E. E1 signal outputs (4x) 4 lines for E1 signals BNC (RX/TX) 75 Ohms and RJ48 120 Ohms © MOBATIME 117 / 124 801203.10...
  • Page 118 Mains power supply 2 redundant mains power supplies: 90 – 240 VAC / +/- 10% / 50 – 60 Hz / <40VA Power supply output DC out 24 V, max. 100 mA (Sup+ / Sup-) © MOBATIME 118 / 124 801203.10...

  • Page 119: H Index

    11, 16, 18, 70, 105 DTS (Distributed Time System) Multicast 32, 116 DTS Link 87, 118 Multicast address Multicast NTP E1 outputs 86, 117 E1 settings Network configuration E1 signals Network ports E-mail 50, 117 © MOBATIME 119 / 124 801203.10...
  • Page 120 Serial telegram file upload Serial telegrams Version SFTP 73, 116 VLAN SMTP VLAN configuration SNMP 11, 89, 116 VLAN ID SNMP – alarm notification SNMP – alive notification SNMP – notification SNMP – operation World time © MOBATIME 120 / 124 801203.10...

  • Page 121: I Connection Table (To Fill In)

    Connection table (to fill in) Line Type Description Example: Line Type Description DCF DCF out DCF for master clock ETC1 © MOBATIME 121 / 124 801203.10...
  • Page 122 © MOBATIME 122 / 124 801203.10...
  • Page 123 © MOBATIME 123 / 124 801203.10...
  • Page 124 19 ch. du Champ-des-Filles, CH-1228 Plan-les-Ouates Tel. +41 34 432 46 46 / Fax +41 34 432 46 99 Tel. +41 22 884 96 11 / Fax + 41 22 884 96 90 moserbaer@mobatime.com / www.mobatime.com export@mobatime.com / www.mobatime.com SALES SWITZERLAND...
