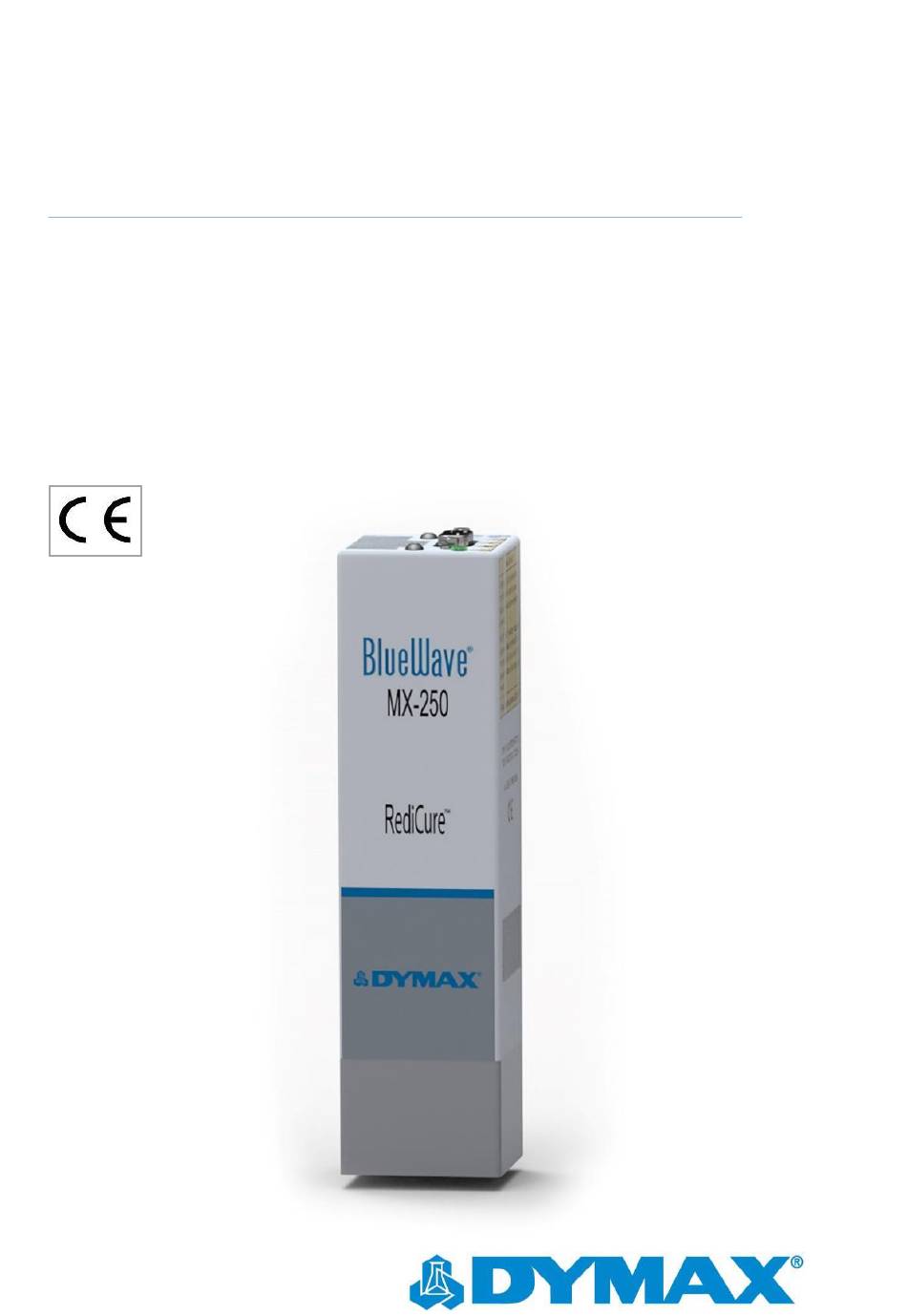

- Page 1 BlueWave MX-250 Emitter User ® Guide LED Flood-Curing Emitters ▪ Instructions for Safe Use ▪ Setup and Operation ▪ Maintenance ▪ Ordering Spare Parts and Accessories...
- Page 2 Dymax standard Conditions of Sale. Dymax recommends that any intended application be evaluated and tested by the user to ensure that desired performance criteria are satisfied. Dymax is willing to assist users in their performance testing and evaluation by offering equipment trial rental and leasing programs to assist in such testing and...
-
Page 3: Table Of Contents
BlueWave® MX-250 Emitter User Guide Contents Introduction ......................... 4 Introduction to the User Guide ..................4 Where to Get Help ......................4 Safety ........................... 4 Product Overview......................... 5 ® Description of BlueWave MX-250 Emitters ..............5 Unpacking ..........................6 Parts Included ........................6 Installation ........................... -
Page 4: Introduction
Customer Support and Applications Engineering teams are available by phone and email in Germany, Monday through Friday, from 8:00 a.m. to 5:00 p.m. Central European Time. You can also email Dymax Europe GmbH at info_de@dymax.com. Please see the back cover for worldwide contact information. For more information about this product, visit dymax.com. -
Page 5: Product Overview
BlueWave® MX-250 Emitter User Guide Product Overview Description of BlueWave MX-250 Emitters ® ▪ When paired with a MX-series controller, BlueWave® MX-250 emitters function as a mini- flood-curing system with a 50 mm x 50 mm (2 in x 2 in) asserted curing area. They provide manufacturers with curing flexibility and expansion capabilities. -
Page 6: Unpacking
Upon arrival, inspect all boxes for damage and notify the shipper of box damage immediately. Open each box and check for equipment damage. If parts are damaged, notify the shipper and submit a claim for the damaged parts. Contact Dymax so that new parts can be shipped to you immediately. -
Page 7: Mounting/Connections
BlueWave® MX-250 Emitter User Guide Mounting/Connections ▪ Each emitter has two sets of M3 x 0.5 mm holes (Figure 2) that align with Dymax stands and holders. ▪ When connecting the emitter to the controller, ensure proper strain relief to prevent pinching or kinking of the interconnect cable. - Page 8 BlueWave® MX-250 Emitter User Guide Figure 3. Example of Installation Using Array Stand...
-
Page 9: Troubleshooting & Maintenance
BlueWave® MX-250 Emitter User Guide Troubleshooting & Maintenance Problem Possible Cause Corrective Action LED intensity adjustment Increase LED intensity setting. set to 0% or too low LED cycle time is set to 0 0 Seconds sets manual mode and seconds requires a trigger. -
Page 10: Product Cleaning And Care
BlueWave® MX-250 Emitter User Guide Product Cleaning and Care ▪ Product cleaning is limited to wiping the product with a damp cloth. Do not soak. Isopropanol Alcohol or household cleaners may be used for cleaning the product. ▪ Always inspect the quartz window for cleanliness before use. Foreign material can cause permanent damage to the window. -
Page 11: Compatible Devices
BlueWave® MX-250 Emitter User Guide Figure 6. Slide Glass Cover Out Figure 7. Insert New Glass Cover 6. Reinstall the side cover removed in Step 3. 7. Insert the two screws removed in Step 2 and tighten. Spare Parts Item Part Number BlueWave®... - Page 12 BlueWave® MX-250 Emitter User Guide Compatible Devices Item Part Number Controllers 43184 BlueWave® MX Series 2-Channel Controller/Power Supply* 43181 BlueWave® MX Series 4-Channel Controller/Power Supply* Emitters BlueWave® MX-250, VisiCure® (405 nm) 42808 BlueWave® MX-250, PrimeCure® (385 nm) 42807 BlueWave® MX-250, RediCure® (365 nm) 42806 System Components Interconnect Cable Assembly - 2 Meter...
-
Page 13: Specifications
1.64 lbs. [0.74 kg] Weight Unit Warranty 1 year from purchase date Operating Environment 10°C to 40°C (50°F to 104°F) * Measured using Dymax ACCU-CAL™ 50-LED radiometer in flood mode. Figure 8. BlueWave® MX Series Spectral Output RediCure® PrimeCure® VisiCure®... -
Page 14: Declaration Of Conformity
BlueWave® MX-250 Emitter User Guide Declaration of Conformity... -
Page 15: Warranty
Unauthorized repair, modification, or improper use of equipment may void your warranty benefits. The use of aftermarket replacement parts not supplied or approved by Dymax Corporation, will void any effective warranties and may result in damage to the equipment. - Page 16 © 2019 Dymax Corporation. All rights reserved. All trademarks in this guide, except where noted, are the property of, or used under license by Dymax Corporation, U.S.A. The data contained in this bulletin is of a general nature and is based on laboratory test conditions. Dymax Europe GmbH does not warrant the data contained in this bulletin. Any warranty applicable to products, its application and use is strictly limited to that contained in Dymax Europe GmbH’s General Terms and Conditions of Sale published on our website at...
