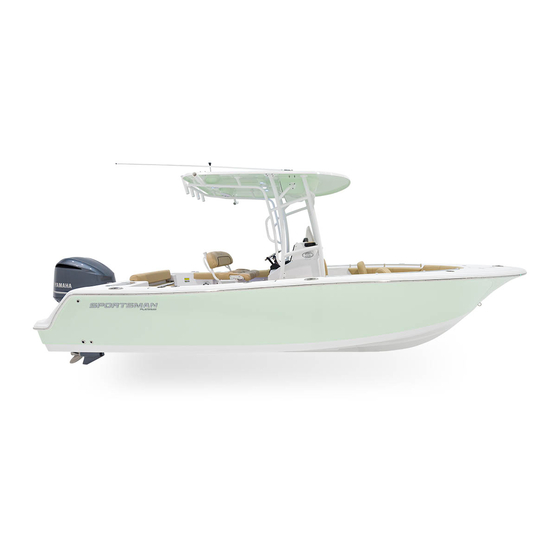

Summary of Contents for Sportsman OPEN 232

  • Page 1 Owner’s Manual and Quick-Reference Guide...

  • Page 2: Table Of Contents

    Table of Contents Topic Page Introduction Important Information Specifications Overall Dimensions & Terminology Features & Performance Certifications & Registrations Boating Safety Electrical & Plumbing Systems Fuel System Boating Navigation Rules Warranty & Services Contact Information...

  • Page 3: Introduction

    Introduction WELCOME TO THE SPORTSMAN TEAM! Here at Sportsman Boats, we take great pride in producing the finest, most well designed saltwater fishing and pleasure boats on the market today. Our designs incorporate the most modern technology while applying good old “Common Sense”...

  • Page 4: Important Information

    This MAKE: MODEL: information will be SERIAL #: GVRM: important should you ADDITIONAL INFORMATION: DEALER SPORTSMAN need to contact your NAME: PHONE: dealer or Sportsman PHONE: REPRESENTATIVE: Boats Manufacturing SALES PERSON: ADDRESS: SERVICE MANGER: for technical assistance ADDRESS: and/or service.

  • Page 5: Specifications

    Specifications Length Overall 22’6” Beam 8’6” Draft 14” Deadrise at Bow 55° Deadrise at Entry 18° Approximate Usable Fuel Capacity 98 gal. Approximate Dry Weight 2750 lbs. People Capacity 10 persons Maximum Engine Horse Power 250 HP (4 Stroke)

  • Page 6: Overall Dimensions & Terminology

    Overall Dimensions & Terminology 22’6” Stern Forward Port Side 8’6” Starboard Side Note: If your boat has a T-Top, Transom Helm we recommend measuring the trailered height of your boat for towing safety purposes. This height may depend on the specific trailer being used.

  • Page 7: Features & Performance

    Features & Performance Standard Package • Built-In Swim Platform w/ 3 • Stainless Steel Rub SportTech™ Advanced Fabrication Process Step Ladder Lockable Console Storage Rail • • Stainless Steel • Steering Wheel w/ • SportLink™ Electronics Integration System • Cockpit Bolsters •...
  • Page 8 Features & Performance Options • Second Garmin GPSMAP® 942xs MFD 9" • Under Leaning Post Tackle Storage • Gunwale Rod Holders / Each • Garmin VHF 110 Radio w/ Antenna • Helm Pad • Underwater Lights • Garmin GMR™ Fantom 18 Radome •...
  • Page 9 Features & Performance Major Features Storage Compartment Swim Platform Bow Storage / Fish Boxes Livewell Console Seat Anchor Fold-down Seat Stainless Wheel Storage Flip-up Bolsters Deluxe Leaning Post Rod Holders...
  • Page 10 Features & Performance 200 HP 250 HP Note: The 250 HP bulletin is for the Heritage 231, but the 232 has the same performance. These are posted on our website at http://sportsmanboatsmfg.com/open-232-center-console/...

  • Page 11: Certifications & Registrations

    Hull Identification Number & Registration Sportsman has a permanent record of your boat. This record is documented during the manufacturing process. It is identified by its “Hull Identification Number” (HIN). The HIN is a 12-digit code located on the starboard side of the transom, just under the Rub Rail.

  • Page 12: Boating Safety

    Boating Safety FIRE EXTINGUISHER LIGHTING Your Sportsman boat is equipped with At least one Type-1 hand held portable navigation lights which comply with fire extinguisher must be carried on both Inland and International rules. board. For boats over 20’ two are required.
  • Page 13 Boating Safety Being on the water is a great experience, but it can become a bad experience very quickly if safety and maintenance instructions of your boat are not followed. Therefore, warnings and notices have been included in order to help you operate and maintain your boat safely.
  • Page 14 You must also take your own necessary precautions and practice proper maintenance procedures in order to enjoy the optimal safe operation of your boat. If your label is damaged. Please call Sportsman’s parts department for replacement stickers.
  • Page 15 Boating Safety Your boat produces carbon monoxide and uses flammable fuel. Carbon monoxide can cause brain damage or death. Carbon monoxide is colorless, odorless and extremely dangerous.
  • Page 16 Boating Safety Label Locations...
  • Page 17 Boating Safety The Sportsman Open 232 has a 10 Person Capacity. Seating locations are shown below.

  • Page 18: Electrical & Plumbing Systems

    Electrical & Plumbing Systems...
  • Page 19 Electrical & Plumbing Systems Wire Harness Fuse Panel The fuse panel is located under the console. It is clearly labeled for easy identification. The bilge pump’s 6 amp fuse is also located here. There is also a 30 amp breaker branching off the main battery switch.
  • Page 20 Electrical & Plumbing Systems SportLink® Electronics Integration System Take control of your electronics with SportLink® Electronics Integration System, equipped standard on every Sportsman Boat. The Garmin & JL Audio powered electronics packages have been carefully designed around each model to meet and exceed your needs out on the water.
  • Page 21 Electrical & Plumbing Systems Garmin 9” Package...
  • Page 22 - Off is in the center position. labeled “Accessory 1.” Sidelights: The Open 232 has integrated rub rail navigational lights installed at the bow (see figure to the If your boat has a T- right). A green light is located on the starboard (right) side Top, the anchor light is and a red light on the port (left) side of the vessel.
  • Page 23 Electrical & Plumbing Systems Stereo If your boat has a Fibergalss T-Top, the aft pair of With the upgrade your boat is equipped with a JL speakers (the left two speakers in the figure to the left) Audio MM50 Stereo and 4 M3 Speakers. The stereo is will not be located here.
  • Page 24 Electrical & Plumbing Systems Stereo Diagram 6 and 4 Chanel DSP AMPS...
  • Page 25 Electrical & Plumbing Systems 6 + 4 Channel Amp Diagram The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
  • Page 26 Electrical & Plumbing Systems Trim Tabs Your Open 232 has trim tabs installed as a standard feature. They are attached to the bottom edge of the transom, as shown in the image below. When the trim tabs control at the helm (pictured to the right) is pressed, the trim tabs automatically move into position.
  • Page 27 Electrical & Plumbing Systems Trim Tabs If you keep your boat in a wet slip/marina environment. Here is a list of different anodes recommended for various water types to prolong the life and shine of your stainless steel tab. Never use a wire brush to clean your tab! Zinc Alloy Anodes = Salt water only Not recommended for use in fresh water Alloy is manufactured to meet or exceed US Military Specification (MIL-A-18001K)
  • Page 28 Electrical & Plumbing Systems Bilge Pump A small bilge pump is located on the hull Bilge Pump bottom at the stern of your boat. Water is pumped out of a thru- hull fitting located on the starboard side of the boat near the transom.
  • Page 29 Electrical & Plumbing Systems Livewells The Sportsman Open 232 comes with a 25 gallon livewell at the starboard stern of the boat. For easy access to the pump and plumbing system, open the total access hatch forward of the transom. The livewell...
  • Page 30 Electrical & Plumbing Systems Raw Water Wash-down Supply Hose Your Open 232 has the raw water wash- down installed as an standard feature. Rinsing your boat immediately after use with a powerful water jet helps to maintain the boat’s condition and value.
  • Page 31 Electrical & Plumbing Systems Fresh Water Wash-down Your Open 232 may have the freshwater wash-down installed as an option. The freshwater fill fitting and outlet are marked and located on the starboard side of the console. The tank is located under the console.

  • Page 32: Fuel System

    Fuel System Fuel Tank The Sportsman Open 232 comes with a fuel tank installed (98 approximate usable gallon capacity). The gasoline fuel system consists of a fuel tank (located underneath the helm seat as shown in the figure), anti-siphon valve, engine fuel supply line, and fill cap.
  • Page 33 Fuel System Diurnal Fuel System...
  • Page 34 Fuel System Diurnal Fuel System (cont’d)
  • Page 35 Fuel System Tank Vapor Space & Fluid Management Ullage (Vapor Space) Level Attainment Spit-back/Well-back Control This fill valve ball is set lower than This vent valve shuts off the vent valve ball but does not the refueling vapors and close until the refueling vapors creates back pressure to are shut off by the vent valve.
  • Page 36 Fuel System Diurnal Fuel System: Refueling...

  • Page 37: Boating Navigation Rules

    Boating Navigation Rules There are three main situations that you may encounter with other vessels which could lead to a collision unless the Steering Rules are followed: -Meeting: you are approaching another vessel head-on -Crossing: you are travelling across the path of another vessel -Overtaking: you are passing or being passed by another vessel When Meeting Port-to-port: Continue on course.
  • Page 38 Warranty and Services Product Changes Sportsman is committed the development of our product line. As a result, equipment described in this manual may have changed or no longer may be available. All information, illustrations and specifications contained in this manual reflect the latest product information available at the time of publication. Sportsman reserves the right to make changes to its boats at any time, without notice.
  • Page 39 This Limited Warranty applies to any Nonstructural Defect (as that term is defined below) if such is due to a failure in material or workmanship and the same was reported to Sportsman according to the terms of this Limited Warranty within one (1) year from the date of the sale to the original purchaser of the Sportsman Boat by a Sportsman authorized dealer.
  • Page 40 Limited Warranty. In addition, this Limited Warranty does not apply to the following “Exclusions:” 1) A Hull, component, or other product that has been repaired without authorization of Sportsman or that has been altered in any way that affects its use and operation;...
  • Page 41 Thank you for your purchase of your Sportsman Boat. Sportsman Boats Manufacturing, Inc. 113 Sportsman Way ∙ Summerville, South Carolina 29483 Telephone (843) 376-2628 ∙ Fax (843) 376-2636 Email Website www.sportsmanboatsmfg.com sales@sportsmanboatsmfg.com P.O. Box 2100 Summerville, SC 29484...
