User manual Filex SB

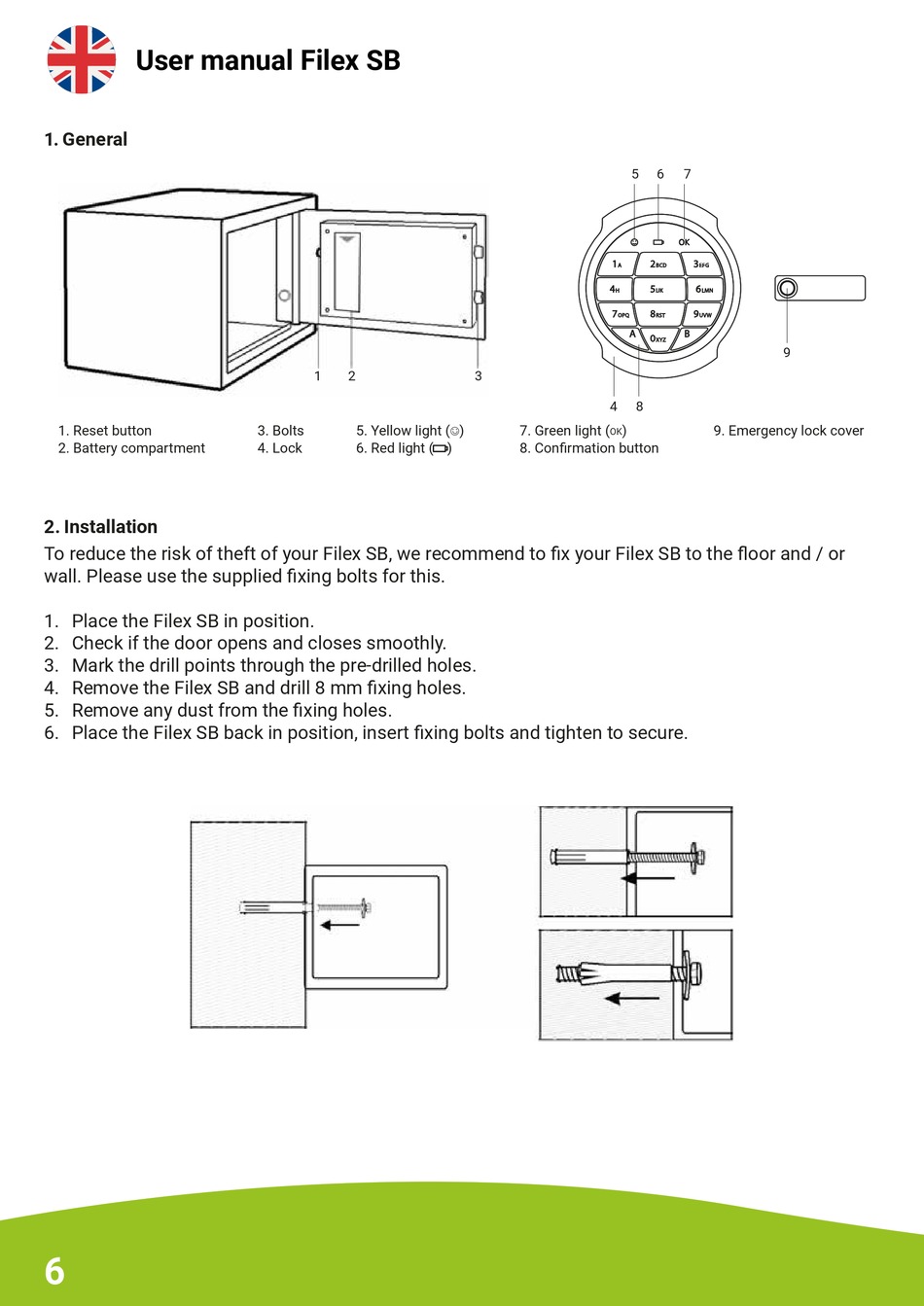

1. General
1. Reset button
2. Battery compartment
2. Installation
To reduce the risk of theft of your Filex SB, we recommend to fix your Filex SB to the floor and / or
wall. Please use the supplied fixing bolts for this.
1. Place the Filex SB in position.
2. Check if the door opens and closes smoothly.
3. Mark the drill points through the pre-drilled holes.
4. Remove the Filex SB and drill 8 mm fixing holes.
5. Remove any dust from the fixing holes.
6. Place the Filex SB back in position, insert fixing bolts and tighten to secure.
6
6
1 2
1 2
3. Bolts 5. Yellow light (
4. Lock 6. Red light ( )
3
3
4
) 7. Green light ( )
OK
J
8. Confirmation button
5 6 7
9
8
9. Emergency lock cover
