Fastcabling PoE Powered Switch Manual

Thank you for picking us over the competition. For years we have been a leading provider of PoE over cat5

and Power Fiber System. Please take a few minutes to read through this guide before you get start. Not

only there are some helpful tips, but also we have some guides to help you plan and install your switch.

Installation Requirements

This product is designed for indoor application, pick the cat5e (or higher category) UTP cable. We recommend you to

choose pure copper UTP cable. Pure copper not only can guarantee a maximum of transmission distance, but also

the bandwidth.

NOTE: Do not expose this switch to rain or moisture environment which may cause electric shock or fire.

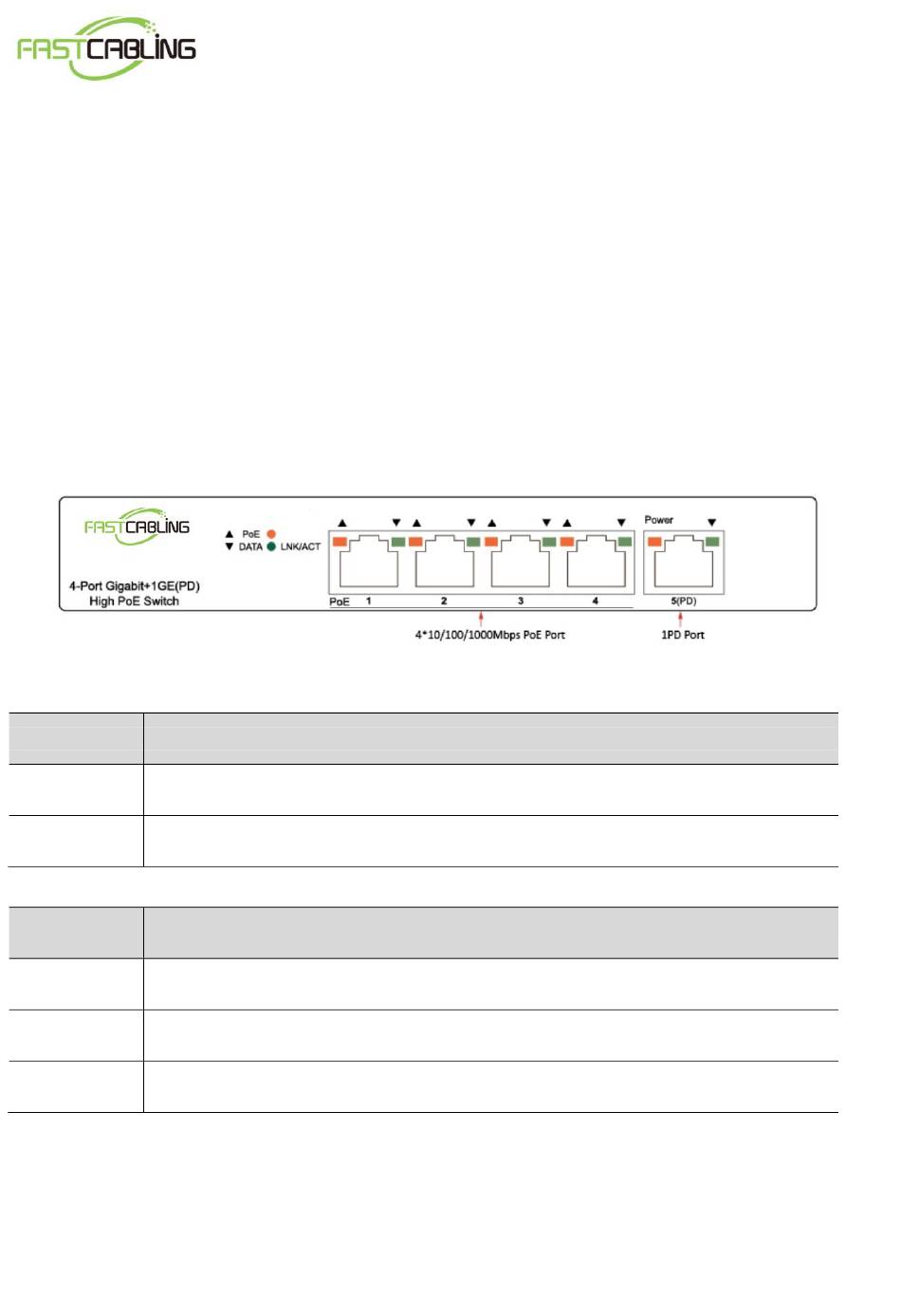

Port

Description

1S-4S

RJ45 port – 10/100/1000 Ethernet with PoE, support IEEE802.3af/at.

RJ45 port – Powered by IEEE802.3af/at/bt PoE &10/100/1000 Ethernet for uplink.

LEDs

Status

OFF – power off

Power

Yellow- Power ON

1-5

OFF-No Link

(Link/ACT)

Red-10/100/1000mbps link flashing indicates data exchanging.

1-4

OFF-No POE

PoE

Yellow - 48V standard PoE.

PoE Powered Switch Guide EN

Table of Contents

Do you have a question about the PoE Powered Switch and is the answer not in the manual?

Page 1 PoE Powered Switch Guide EN Thank you for picking us over the competition. For years we have been a leading provider of PoE over cat5 and Power Fiber System. Please take a few minutes to read through this guide before you get start. Not only there are some helpful tips, but also we have some guides to help you plan and install your switch.
Page 2 3. Now Plug PoE IP device to one of ports in PoE Powered Switch. Once the PoE Powered Switch has been connected to the another PoE switch or PoE injector, the power LEDs will be turned on. In a short while, you can connect your IP device to one of the PoE port, the corresponding LINK/ACT LEDs will be turned on in Red, then start flashing.
Page 3 7. Protective bonding must be installed in accordance with local national wiring rules and regulations. Need More Help? If you require more help setting up your PoE Powered Switch, please head to our help site where you will be able to find the corresponding help guides and video tourist.
