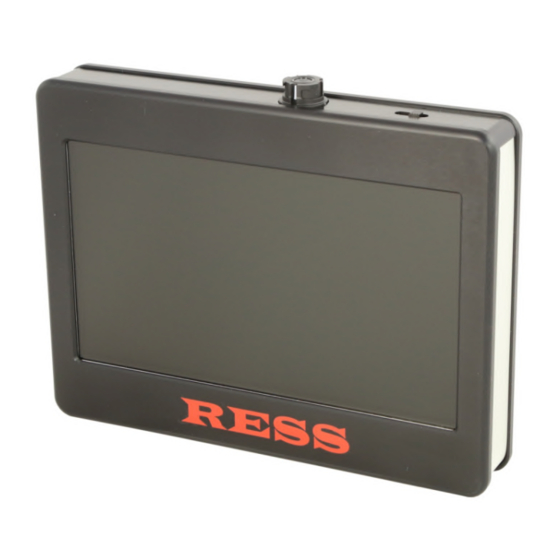

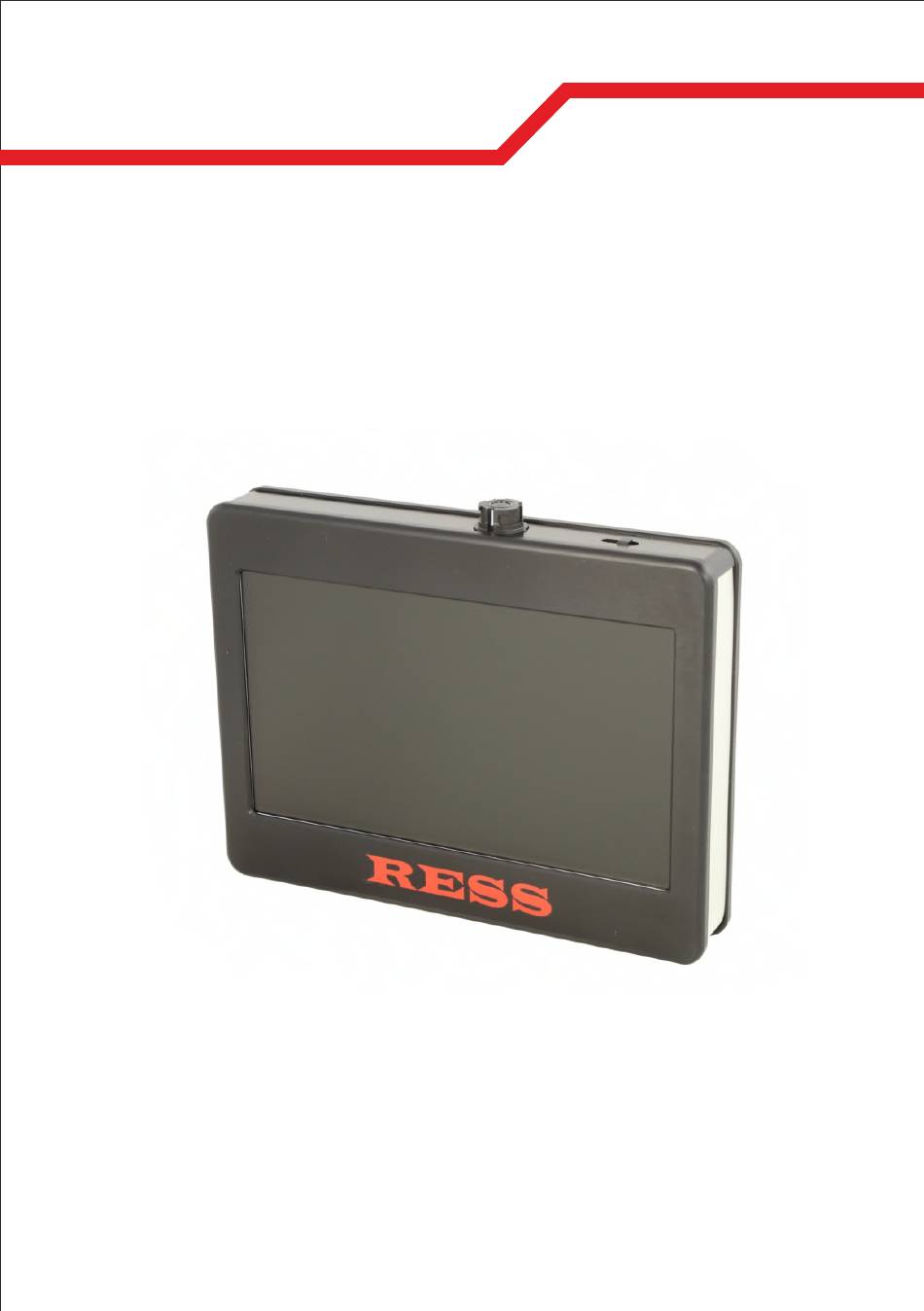

- Page 1 RESS Visual Inspection Sweep Instruments Measuring Instruments The Producer Manual Monitor FM7...
- Page 2 Summary of the contents Monitor FM7 - Commissioning / Safety Notes page 4 - Start-up page 5 - Working with the device page 7 - Power supply - Specifications Troubleshooting / maintenance / service page 8 RESS...
- Page 3 - The video inspection system is not for use in the medical field! - Any kind of reparations on inside of the unit, must be carried out, exclusively by qualified staff! (If required, contact the RESS-customer service) - The connection and disconnection, the respective components of the system, must always...
- Page 4 3. Start-up 1 monitor 2 cable socket / charging socket 3 on/off slide switches 3 on/off-switch RESS...
- Page 5 When charging is completed, the LED light will blink green and orange. After a while the charger will turn into a standby mode. Then the LED light will turn green. 6 RESS...
- Page 6 750 g Casing: Synthetic material Monitor: 5" LCD-TFT-color screen (102 x 73 mm) Power supply: Lead acid battery 12V/2100mAh Operating time: Approx. 4 hours (depending on the camera head that is being used) Charging time: Approx. 2 hours RESS...
- Page 7 - Please clean on a regular base. Do not use aggressive cleanser of any kind! - Please avoid contact with water at all times and of any kind! Attention: Warranty is void when monitor has been open manually. SERVICE-Hotline: +49 5208/9127-0 RESS...
- Page 8 RESS Visual Inspection Sweep Instruments Measuring Instruments The Producer RESS GmbH & Co. KG Am Hasselbruch 28 D-32107 Bad Salzuflen Tel. ++ 49 52 08 / 91 27 0 Fax ++49 52 08 / 80 30 info@ress.de 12.03.2018 Internet-Shop: www.ress.de...
