Summary of Contents for Radic8 VK MEDI

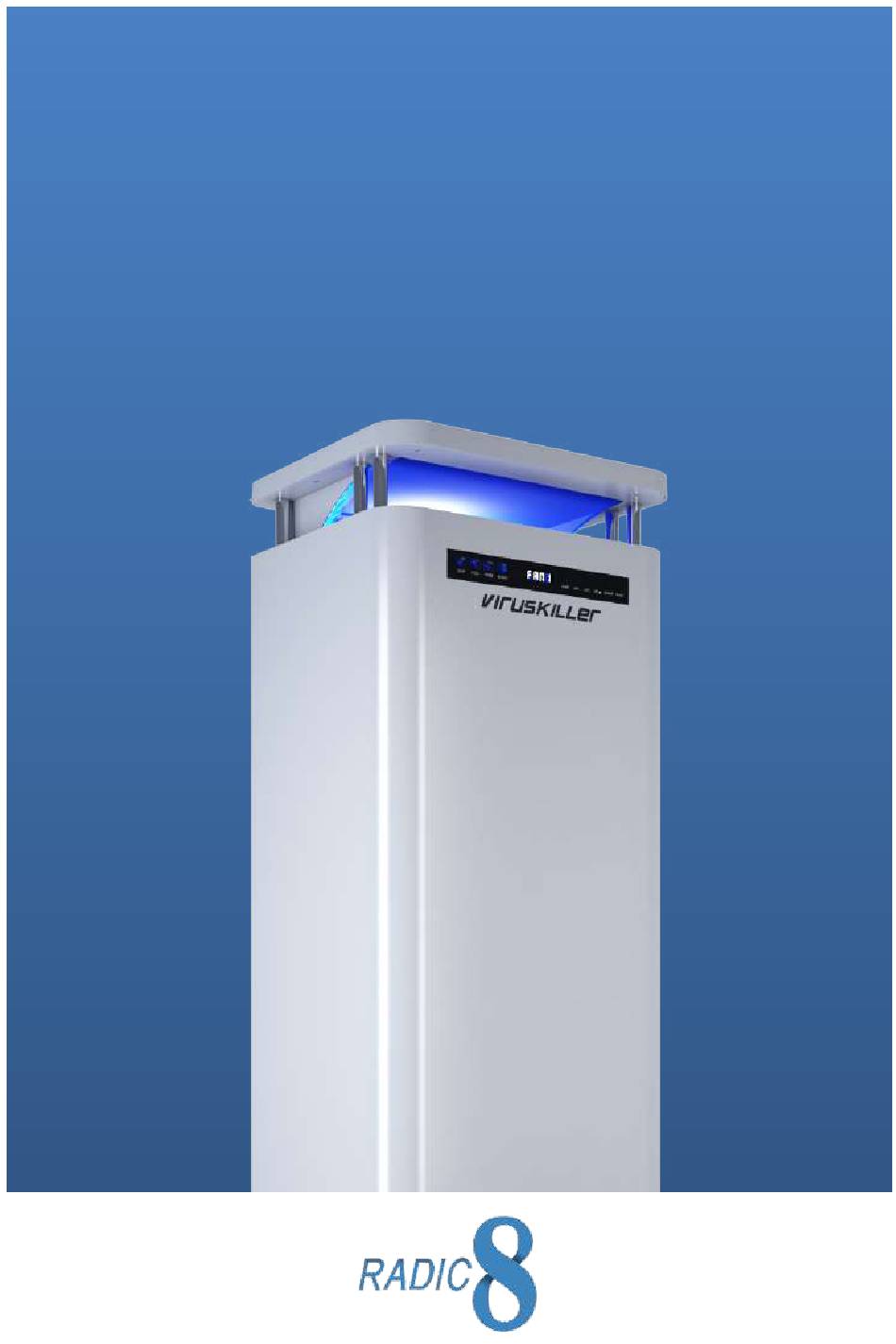

- Page 1 VK MEDI AIR STERILISER USER GUIDE AND INSTRUCTIONS...
-
Page 3: Important Safety Instructions
Dear Customer Thank you for purchasing the VK Medi Air Steriliser, this is “clean air technology” at its best. This product is packed with power and technology to provide fast and efficient clean air. We hope that you enjoy using your new unit! -
Page 4: Table Of Contents
USER GUIDE AND INSTRUCTIONS SUMMARY IMPORTANT SAFETY INSTRUCTIONS ..............3 SYMBOLS USED IN THIS MANUAL ..............4 INSTALLATION SAFETY ..................5 KEY PARTS AND COMPONENTS ................7 THE UNIT ....................7 DISPLAY MONITORING ................8 REMOTE CONTROL ................9 CLEANING AND MAINTENANCE ................10 CLEANING THE PRE- FILTER .............. -
Page 5: Installation Safety
INSTALLATION SAFETY Should the unit emit smoke, No form of water or liquid Do not place any heavy unusual odors or make any should enter the unit. Should objects on the power cord as strange noises, immediately this occur, immediately switch this may cause a fire and/or switch off the unit unplug it. - Page 6 Do not alter or modify the plug Use the proper power cable Keep the product away from or cord of this unit as it could and outlet, do not over-load inflammable gases, liquids, or cause a fire or an electric the outlets with several cords other combustible substances, shock.
-
Page 7: Key Parts And Components
Four Way Air Outlet Display and monitoring Reactor Cell Sirocco Fan Carbon Filter HEPA Filter Pre Filter Four Way Air Inlet The VK Medi has an extra “back filter tray”, which allows it to integrated into a positive pressure system. -
Page 8: Display Monitoring
DISPLAY AND MONITORING Display Remote control TIMER sensor LED ON/OFF Reactor Replacement Alarm UVC ON/OFF Filter Replacement Fan speed UP Alarm Fan speed DOWN VOC’ s Static Display Dust Static Display (LED) Power button ON/OFF Name Function Display and Changes the information displayed on the LED in the following order: UV Monitoring Lamp Time, Current Temp, Fan Speed. -
Page 9: Remote Control
REMOTE CONTROL 5) LED Lamp On/Off 1) Power On/Off 3) Mode 2) Fan Speed 4) Timer Name Function Power ON/OFF To switch the unit ON/Off. You will hear a beep sound. Fan Speed Increase the fan speed. Fan speeds: FAN 1 (Quiet), FAN 2 (Normal), FAN 3 (High Speed). -
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE CLEANING THE PRE-FILTER The plastic pre-filter is reusable. To clean it, follow this procedure: 1. Pull out the bottom filter case ① 2. Remove pre-filter ② from filter case ① and separate from carbon filter ③ and HEPA filter ④. 3. -
Page 11: Replacing The Reactor Chamber
Replacing the Reactor Cell In order for the VK Medi to remain functional, the reactor chamber must be replaced every 8000 hours. Your unit will indicate that a change is required by displaying a “-0001” code on the LED Display . -
Page 12: Error Messages
Cleaning the Air Quality Sensor (IAQ Sensor) Cleaning the Indoor Air Quality (IAQ) Sensor The IAQ sensor is a very delicate instrument that uses light scattering to detect pollution. It therefore needs a clean lens to work effectively. Regular maintenance (every 6 months) should be carried out to keep the lens clean. -
Page 13: Troubleshooting
TROUBLESHOOTING Before you call for service, review this list. It may save you time and expense. This list includes co- mmon occurrences that are not the result of defect in workmanship or materials. Problem Possible cause Solution The product The plug is not properly insert- Plug the device into a working grounded will not turn on ed in the grounded outlet. -
Page 14: Customer Services
The company reserves the right to make changes to the design and specifications of the product without prior notice. Description Air Sterilizer Brand VIRUSKILLER Model No VK Medi Max. Elec. 280 watt Consumption Net Weight 58 Kg Dimensions (mm) H1590 x D400 x L510 Noise (dB) 41 –... - Page 16 World Leading Air Sterilization Equipment Sales & Design: First Floor, Columbia Mill, Bedford Street, Bolton, BL1 4BA Tel : +44 (0) 1204 238823, E-mail: info@radic8.com, Manufacturer: INBair Korea LTD 3~4F, 72, Jomaru-ro 411 Beon-gil, Bucheon-si, Gyeonggi-do, South Korea E-mail: inbair01@naver.com, www.inbair.com...
