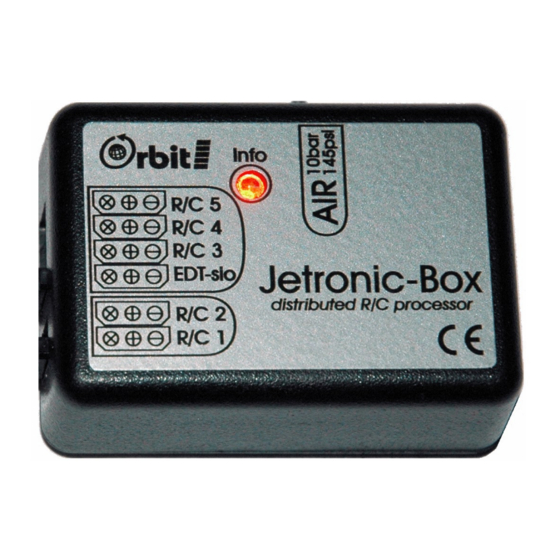

Jetronic-BOX HV
[0288]
R/C Controller – Doorsequencer
with Air Failsave
©
2013 evoJet GmbH ● Am Parir 4A ● D-52379 Langerwehe/Germany ● www.evojet.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jetronic-BOX HV and is the answer not in the manual?

Questions and answers

Related Manuals for EvoJet Jetronic-BOX HV

Summary of Contents for EvoJet Jetronic-BOX HV

  • Page 1 Jetronic-BOX HV [0288] R/C Controller – Doorsequencer with Air Failsave © 2013 evoJet GmbH ● Am Parir 4A ● D-52379 Langerwehe/Germany ● www.evojet.de...

  • Page 2: Table Of Contents

    Jetronic-BOX HV Instructions 2.1 Contents Introduction .........................3 Schematic Overview 'Doorsequencer'................4 Factory Setting 'Doorsequencer'..................5 Jetronic Display EDT (Engine Data Terminal)..............6 JETRONIC-BOX – Setup......................7 1:BOX-SETUP Menu......................8 2:RC-CONTROL Menu......................11 3/4/5: RC-3/4/5-CONTROL Menu..................14 6:TEST-DEVICES Menu ....................17 CE - Konformitätserklärung / Conformity Declaration / Déclaration de conformitè ..22...

  • Page 3: Introduction

    Jetronic-BOX HV Instructions 2.1 Introduction The Jetronic-BOX HV is a universal R/C controller for use in medium-sized and large model aircraft. Two R/C inputs can be programmed to control up to four R/C outputs, for example to implement a landing gear with door control or a cockpit with open/close and lock functions, where even an R/C transmitter with microprocessor control is not sufficient.

  • Page 4: Schematic Overview 'Doorsequencer

    Jetronic-BOX HV Instructions 2.1 Schematic Overview 'Doorsequencer'...

  • Page 5: Factory Setting 'Doorsequencer

    Jetronic-BOX HV Instructions 2.1 Factory Setting 'Doorsequencer' Landing Gear with different Door Controls RC4 / RC5 RC3: The landing gear waits 1 second before retraction/extension. RC4: The door type-1 closes always automatically after a delay of 8 seconds (gear extended) and after a delay of 6 seconds (gear retracted).

  • Page 6: Jetronic Display Edt (Engine Data Terminal)

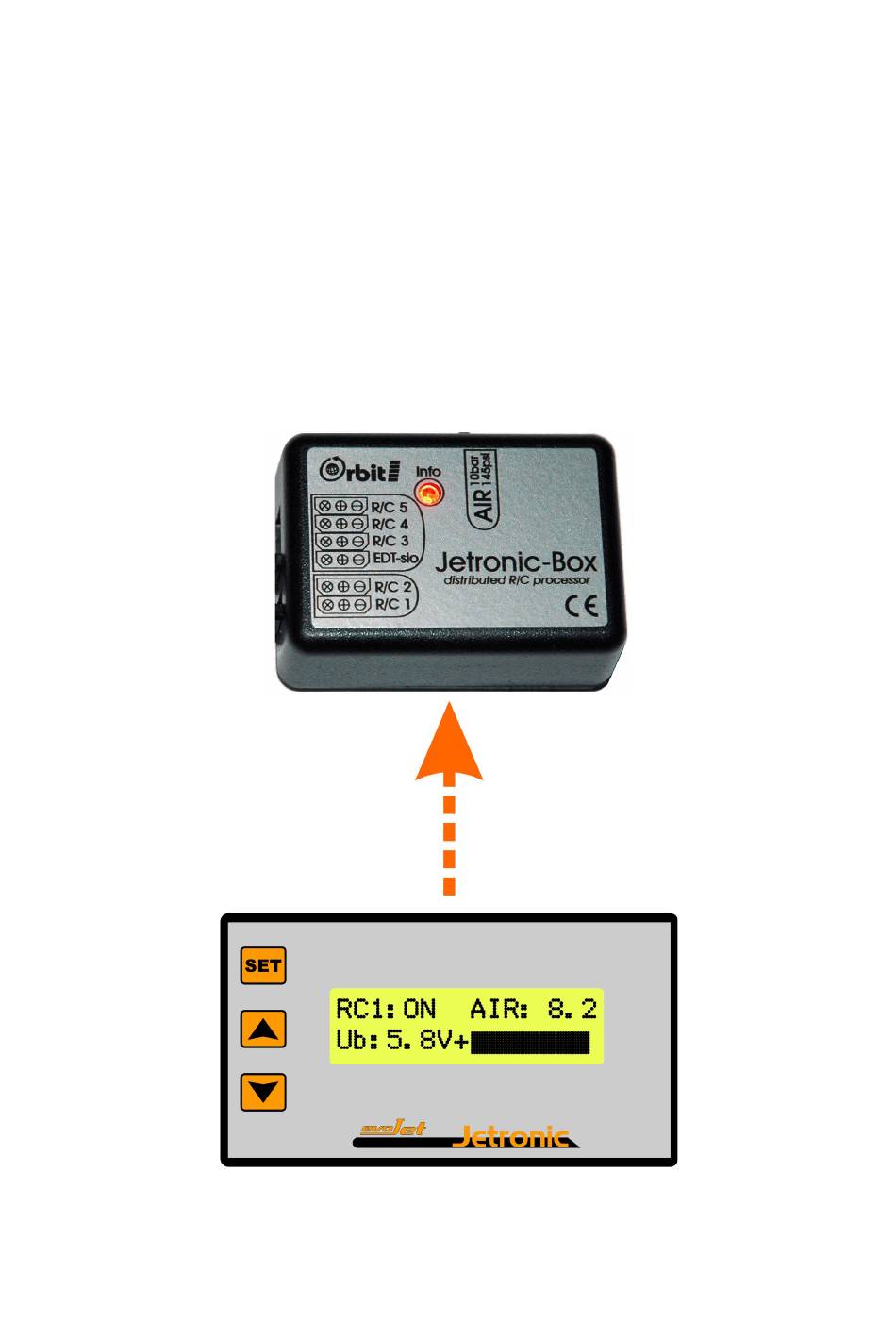

    Jetronic-BOX HV Instructions 2.1 Jetronic Display EDT (Engine Data Terminal) EDT-LEFT and EDT-RIGHT are configurable function displays for operating parameters. In the BOX-SETUP menu, you can choose what should be displayed in the LEFT and RIGHT areas. In the BOX-SETUP menu under 12:EDT →...

  • Page 7: Jetronic-Box - Setup

    Jetronic-BOX HV Instructions 2.1 JETRONIC-BOX – Setup SETUP Menu To activate the SETUP menu for changing the firmware configuration, first press the SET key, then use the Up/Down keys to switch between the available items. To leave the SETUP menu and to return to the BOX status display, press the SET key for more than 2 seconds (ESC).

  • Page 8: 1:Box-Setup Menu

    Jetronic-BOX HV Instructions 2.1 1:BOX-SETUP Menu To activate the 1:BOX-SETUP menu, first press the SET key, then use the Up/Down keys to switch between the available items. To leave the 1:BOX-SETUP menu and to return to the SETUP menu, press the SET key for more than 2 seconds (ESC).
  • Page 9 Jetronic-BOX HV Instructions 2.1 1:BOX-SETUP – Basic Settings for the Box 10:R/C-BATTERY Specifies the type of battery used (required for a correct voltage display). Ni = NiCd or NiMh, Li = lithium ion Default setting: Ni4 (4.8V) 11:INFO-LED Specifies the display function for the info LED on the top side of the device.
  • Page 10 Jetronic-BOX HV Instructions 2.1 17:AIR-NOMINAL Specifies the nominal air pressure for the LED display (11:INFO-LED). This parameter should be set to the pressure value nominally required for the model to take off. Range: 14:AIR-FAIL – 10 bar Default setting: 8.0 bar 18:SET-DOORSEQ.

  • Page 11: 2:Rc-Control Menu

    Jetronic-BOX HV Instructions 2.1 2:RC-CONTROL Menu To activate the 2:RC-CONTROL menu, first press the SET key, then use the Up/Down keys to switch between the available items. To leave the 2:RC2-CONTROL menu and to return to the SETUP menu, press the SET key for more than 2 seconds (ESC).
  • Page 12 Jetronic-BOX HV Instructions 2.1 2:RC-CONTROL – Settings for the Inputs RC1 and RC2 20:RC1-MODE Specifies the input function for the remote control input RC1. NORMAL: Standard remote control input, ON ≥ 1.65 ms, OFF ≤ 1.25 ms REVERSE: Inverted remote control input, OFF 1.65 ms, ON...
  • Page 13 Jetronic-BOX HV Instructions 2.1 24:@AIR~FAIL Specifies the failsafe function that is activated when the air pressure falls below the minimum value specified with 14:AIR-FAIL. Typically, the failsafe function activates an ON-signal-OUT at RC1 (=> extend gear). On the dis- play, this is indicated by a -! at the RC1 or RC2 status.

  • Page 14: 3/4/5: Rc-3/4/5-Control Menu

    Jetronic-BOX HV Instructions 2.1 3/4/5: RC-3/4/5-CONTROL Menu To activate the 3/4/5:RC3/4/5-CONTROL menu, first press the SET key, then use the Up/Down keys to switch between the available parameters. To change a parameter, first press the SET key, then use the Up/Down keys to switch between the available values.
  • Page 15 Jetronic-BOX HV Instructions 2.1 3/4/5:RC3/4/5-CONTROL – Settings for the Outputs RC3, RC4 and RC5 30:RC3-MODE Specifies the basic function for the remote control output RC3. OFF: The output is switched off and disabled. RC1-DIRECT for gears and doors that remain open (bistable function)
  • Page 16 Jetronic-BOX HV Instructions 2.1 31:RC3-WAIT~OUT Specifies the OUT delaytime (extend gear). Range: 0 – 20 seconds Default setting: 0.0 sec 32:RC3-WAIT~IN Specifies the IN delaytime (retract gear). Range: 0 – 20 seconds Default setting: 0.0 sec 33:RC3-DIRECTION Specifies the direction of rotation: NORMAL or REVERSE.

  • Page 17: 6:Test-Devices Menu

    Jetronic-BOX HV Instructions 2.1 6:TEST-DEVICES Menu To activate the 6:TEST-DEVICES menu, first press the SET key, then use the Up/Down keys to switch between the available test functions. To activate a test function, first press the SET key, then use the Up/Down keys to test the respective system setting.
  • Page 18 Jetronic-BOX HV Instructions 2.1 6:TEST-DEVICES – Testing the System Settings without Remote Control 60:RC1-SIM Simulates an ON/OFF signal at the RC1 input, as if you would use the switch on the transmitter. Range: ON (high) / OFF (low) Default setting: value of 21:RC1-PRESET 61:RC2-SIM Simulates an ON/OFF signal at the RC2 input, as if you would use the switch on the transmitter.
  • Page 19 Jetronic-BOX HV Instructions 2.1...
  • Page 20 Jetronic-BOX HV Instructions 2.1...
  • Page 21 Jetronic-BOX HV Instructions 2.1...

  • Page 22: Ce - Konformitätserklärung / Conformity Declaration / Déclaration De Conformitè

    EMV: EN 61000-6-1 / EN 61000-6-3 EN 55014-1 / EN 55014-2 LVD: EN 60950-1 This declaration is declared by: evoJet GmbH, Am Parir 4A, 52379 Langerwehe / Germany, and is valid for the manufacturer of the products Arno Hausmann, Managing Director 52379 Jüngersdorf / Germany, den 31.06.11 Déclaration de conformité...
  • Page 23 Jetronic-BOX HV Instructions 2.1 Notes...
