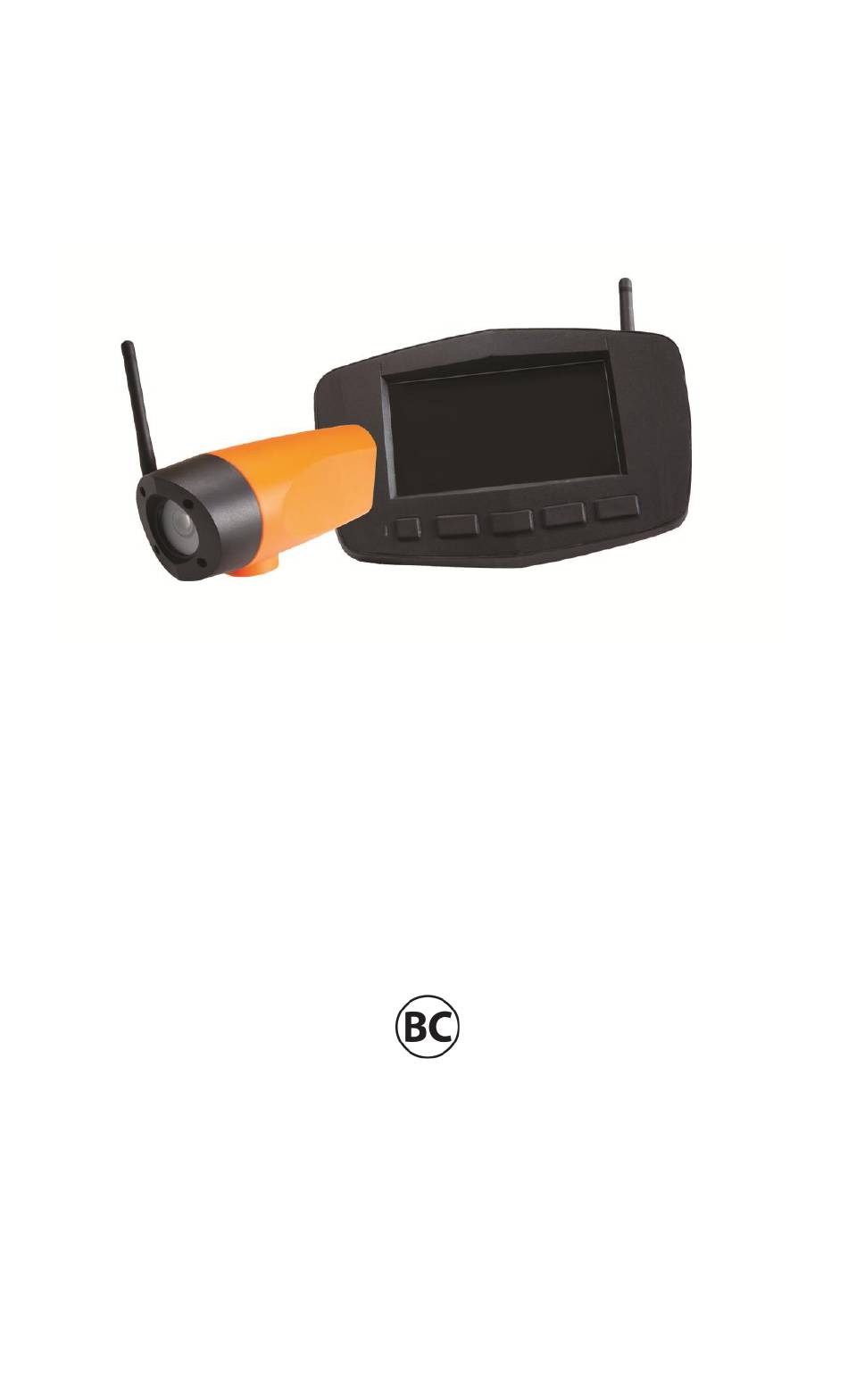

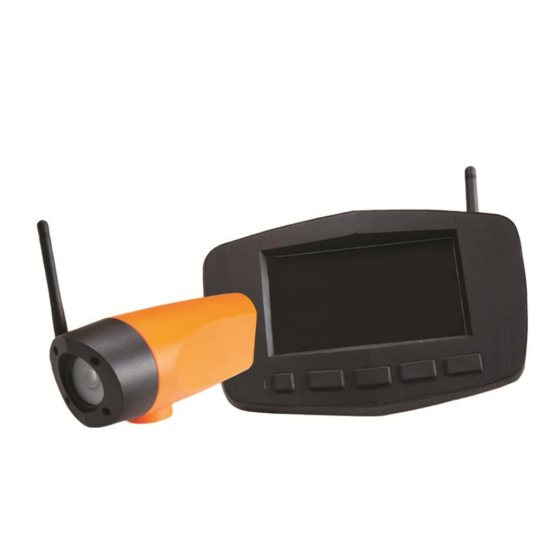

Hyndsight Vision Systems, Inc.
Instructions for Use
Operating instructions for the CRUZ and JOURNEY product
lines by Hyndsight Vision Systems, Inc.
Applies to HVS-001C camera and HVS-001M monitor
2014 Manufactured in China for Hyndsight Vision Systems, Inc.
59 Pine Street | Peterborough, NH 03458 | USA
1-844-SEE-SAFE (733-7233)
www.hyndsightvision.com
Advertisement
Table of Contents
Related Manuals for Hyndsight Vision Systems CRUZ
Summary of Contents for Hyndsight Vision Systems CRUZ
- Page 1 Hyndsight Vision Systems, Inc. Instructions for Use Operating instructions for the CRUZ and JOURNEY product lines by Hyndsight Vision Systems, Inc. Applies to HVS-001C camera and HVS-001M monitor 2014 Manufactured in China for Hyndsight Vision Systems, Inc. 59 Pine Street | Peterborough, NH 03458 | USA 1-844-SEE-SAFE (733-7233) www.hyndsightvision.com...
-
Page 2: Table Of Contents
1-844-SEE-SAFE TABLE OF CONTENTS INTENDED USE ................3 IMPORTANT SAFETY NOTICE ............ 3 CAUTION ..................3 CARE INSTRUCTIONS ..............3 KIT CONTENTS ................3 OVERVIEW ..................4 CHARGING ..................5 SINGLE CAMERA SET-UP ............5 MULTI-CAMERA SET-UP ............. 7 FLUSH BRACKET MOUNTING ............ 9 TROUBLESHOOTING .............. -
Page 3: Intended Use
INTENDED USE Hyndsight Vision Systems, Inc. wireless cameras and monitors are to be used as an aid for visualizing blind spot conditions or for monitoring locations not always in clear sight. Use of your own common sense and best judgment is always necessary both before and during use of this product. -
Page 4: Overview
1-844-SEE-SAFE OVERVIEW Scan mode View (Mirror or Forward) Camera in use Monitor and Signal Camera power Strength levels, respectively Indicator light Power Menu Enter Down/Brightness Up/Brightness... -
Page 5: Charging
www.hyndsightvision.com CHARGING Fully charge both devices before using. To Charge Your Hyndsight System Connect the USB cable to the Wall Charger. Firmly insert the straight jack into the Camera/Monitor. Plug in the Wall Charger. Red light appears when charging. Red light turns off when charge is complete (4-5 hours). SINGLE CAMERA SET-UP HVS recommends pairing Camera before mounting it to desired surface. - Page 6 1-844-SEE-SAFE Forward-facing View Displays a view consistent with what you would see if you were viewing an object head-on. To Switch to Forward-facing View Press the Menu button. Scroll to Mirror using Select Mirror by hitting the Enter button.
-
Page 7: Multi-Camera Set-Up
www.hyndsightvision.com MULTI-CAMERA SET-UP This product can accept up to 4 cameras. To order an additional camera (HVS-045J), please contact our Customer Service Department by phone at 1-844-SEE-SAFE or visit www.hyndsightvision.com. To pair additional Cameras, you will need to enable Multi-Camera mode by following the instructions below. - Page 8 1-844-SEE-SAFE To view the image from one specific Camera when multiple Cameras are paired, use the Select setting. A blue camera icon means the camera is already paired, a red camera icon means the camera is selected, and a gray camera icon means the camera is unpaired. ...
-
Page 9: Flush Bracket Mounting
www.hyndsightvision.com Toggle using until the next desired corresponding Camera icon is colored red. Press Enter to Unpair the image from the Selected Camera. Note: Never leave Camera 1 unpaired before shutting down the unit - it will complicate Pairing the next time you Power On. -
Page 10: Troubleshooting
Styles and colors may vary. WARRANTY This Limited Product Warranty shall apply to Hyndsight Vision Systems, Inc. products including all accessories as contained within the original package. Hyndsight Vision Systems, Inc. warrants that products from its authorized distributors and retailers will meet the applicable product specifications and be free from all defects in material and workmanship during the Limited Product Warranty Period, one year starting from the date of original purchase, assuming the products are used in accordance with the user manual and other documentation provided at the time of purchase. - Page 11 5. This Limited Product Warranty covers expenses for inspecting and repairing the product during the Limited Product Warranty Period if the defect is found to be the fault of Hyndsight Vision Systems, Inc . The defective product shall be delivered by the purchaser at his/her own expense to the designated premises together with the proof of purchase and RMA number.
- Page 12 1-844-SEE-SAFE Register your product at www.hyndsightvision.com/Register.html 59 Pine Street | Peterborough, NH 03458 | USA Toll free: 1-844-SEE-SAFE (733-7233) www.hyndsightvision.com...
