Summary of Contents for LG UN72 Series

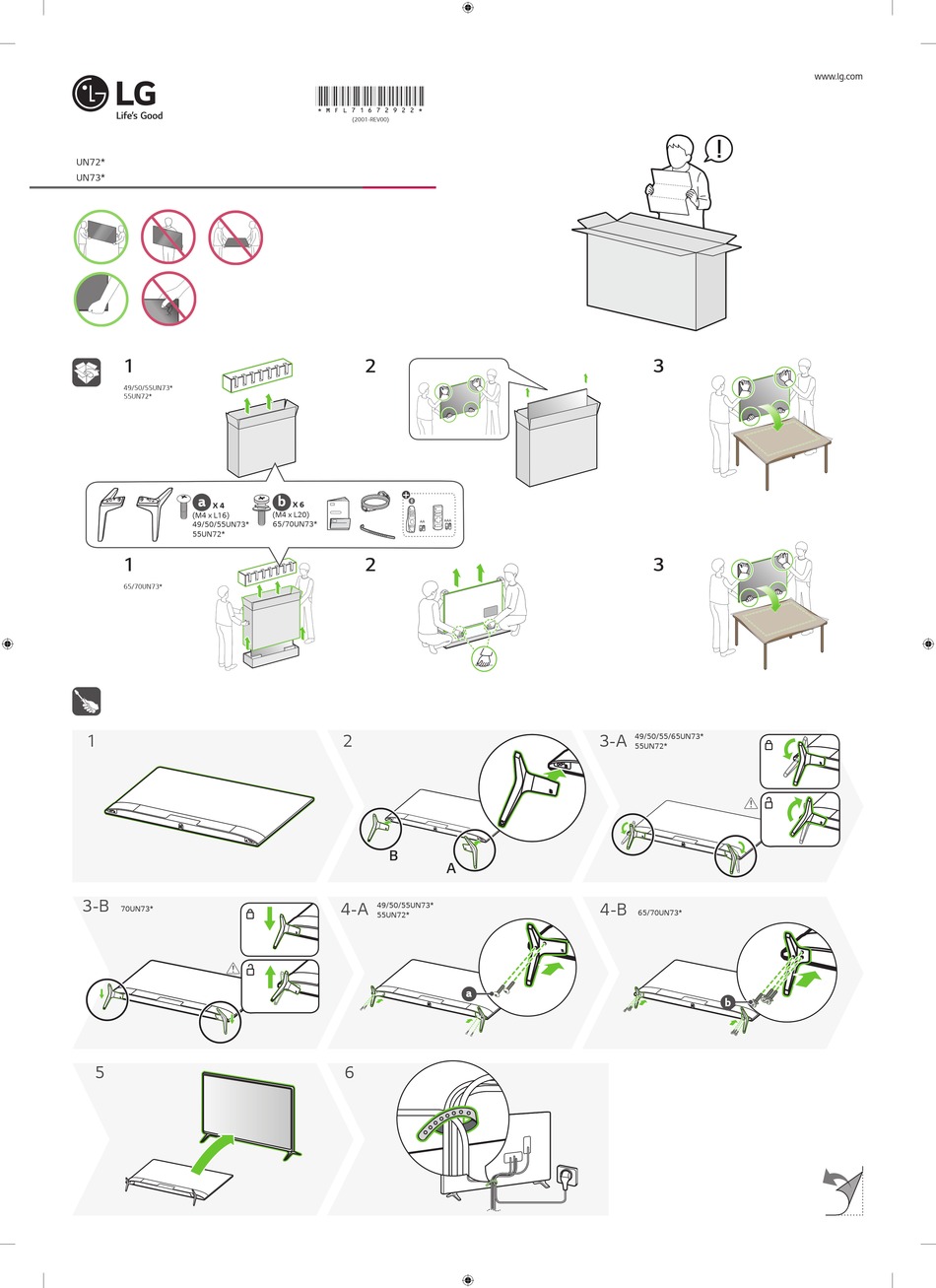

- Page 1 *MFL71672922* (2001-REV00) UN72* UN73* 49/50/55UN73* 55UN72* (M4 x L20) (M4 x L16) 49/50/55UN73* 65/70UN73* 55UN72* 65/70UN73* 49/50/55/65UN73* 55UN72* 49/50/55UN73* 70UN73* 65/70UN73* 55UN72*...
- Page 2 90° (mm) (kg) 49UN7300PPC 1110 81.1 11.3 11.1 49UN7350PPD 50UN7300PPC 1130 86.3 11.5 11.3 55UN7200PPF 1244 87.1 14.4 14.3 55UN7300PPC 1244 87.1 14.5 14.3 65UN7300PPC 1463 87.8 21.6 21.3 70UN7300PPC 1578 91.1 31.4 30.7 Power requirement AC 100-240 V ~ 50 / 60 Hz...
- Page 3 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. *MFL71437822* www.lg.com (2001-REV00) Copyright ⓒ 2020 LG Electronics Inc. All Rights Reserved.
- Page 4 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
- Page 5 • Use only an authorized attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in fire or electric shock.
-
Page 6: Separate Purchase
Preparing Separate Purchase • If the TV is turned on for the first time after it was shipped from the Separate purchase items can be changed or modified for quality factory, initialization of the TV may take a few minutes. improvement without any notification. -
Page 7: Wall Mounting Bracket
Wall Mounting Bracket Lifting and moving the TV (Depending on model) Make sure to use screws and wall mount bracket that meet the VESA Please note the following advice to prevent the TV from being scratched standard. Standard dimensions for the wall mount kits are described in or damaged and for safe transportation regardless of its type and size. -
Page 8: Mounting On The Table
• Avoid touching the screen at all times, as this may result in • Do not apply foreign substances (oils, lubricants, etc.) to damage to the screen. the screw parts when assembling the product. • When attaching the stand to the TV set, place the screen (Doing so may damage the product.) facing down on a cushioned table or flat surface to protect • ... -
Page 9: Mounting To The Wall
LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please... -
Page 10: Other Connections
Connections • When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust and insects. (Depending on model) Connect various external devices to the TV and switch input modes to select an external device. -
Page 11: Using Button
Using Button Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it to the USB port on the TV directly. You can simply operate the TV functions, using the button. External Devices Available external devices are: Blu-ray player, HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and... -
Page 12: Using Remote Control
Using Remote Control ** To use the button, press and hold for more than 1 second. (POWER) Turns the TV on or off. (Depending on model) Returns to the last TV channel. The descriptions in this manual are based on the buttons on the remote (SEARCH) Check for recommended content. - Page 13 Using Magic Remote Control ** To use the button, press and hold for more than 1 second. (POWER) Turns the TV on or off. (Depending on model) (STB POWER) You can turn your set-top box on or off by adding The descriptions in this manual are based on the buttons on the remote the set-top box to the universal remote control for your TV.
-
Page 14: Registering Magic Remote Control
Registering Magic Remote Control User Guide How to register the Magic Remote Control For more information about this TV, read the USER GUIDE embedded in To use the Magic Remote, first pair it with your TV. the product. (Depending on model) 1 Put batteries into the Magic Remote and turn the TV on. -
Page 15: Abnormal Display
Abnormal Display Generated Sound • If the product feels cold to the touch, there may be a small “flicker” • “Cracking” noise: A cracking noise that occurs when watching or when it is turned on. This is normal, there is nothing wrong with turning off the TV is generated by plastic thermal contraction due product. -
Page 16: Specifications
Specifications Broadcasting specifications Digital TV Analogue TV Television system ISDB-T NTSC-M Program coverage VHF, UHF, CATV Maximum number of ISDB-T & Analogue TV : 3,000 storable programs External antenna 75 Ω impedance (For 86UN80*) Wireless module(LGSBWAC92) Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2400 to 2483.5 MHz... -
Page 17: Operating Temperature
Environment condition Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % • The energy information provided with the product is indicated in accordance with the regulations of each country. (Depending on Country) - The Energy consumption is measured in accordance with IEC 62087. -
Page 18: Open Source Software Notice Information
LG Electronics will also provide open source code to you on CD-ROM • Only using furniture that can safely support the television set. for a charge covering the cost of performing such distribution (such • ... - Page 22 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model Serial No.
