- Page 1 MANUAL ENGLISH Fast-Setup Screen Pro Ordercode: 100430/100431/100432 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Fast-Setup Screen Pro Table of contents Warning ....................................2 Safety Instructions ................................. 2 Return Procedure ................................3 Claims ....................................3 Description of the device ..............................4 Overview ..................................5 Installation ................................... 5 Accessories ..................................5 Set Up and Operation ............................... 6 Main Frame Installation .............................. -
Page 3: Warning
If device was dropped or struck, have a qualified engineer inspect for safety before operating. ● If your DMT device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your DMT dealer for service. -
Page 4: Return Procedure
Fast-Setup Screen Pro ● The user is responsible for correct positioning and operating of the Fast-Setup Screen Pro. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. ● For adult use only. Device must be installed out of the reach of children. Never leave the unit running unattended. -
Page 5: Description Of The Device

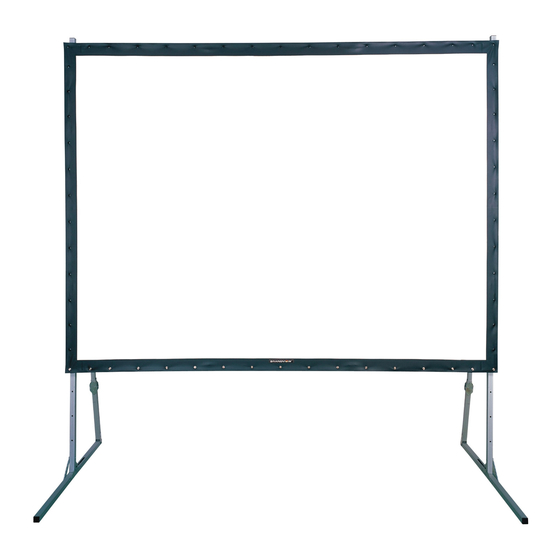

Description of the device Features DMT Fast-Setup Screens have an easy and sturdy design. There are no parts to install and no tools are needed because the frame and the support use their own connectors and come with the built-in turning knobs. -
Page 6: Overview
07) Fabric black border 04) Leg screw 08) Fabric button Installation Remove all packing materials from the Fast-Setup Screen Pro. Check if all foam and plastic padding is removed. Damages caused by non-observance are not subject to warranty. Accessories Fig. 02... -
Page 7: Set Up And Operation
Fast-Setup Screen Pro Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Main Frame Installation 01) Open the flight case, press the corner link rod and remove the accessories from the flight case. - Page 8 Fast-Setup Screen Pro 04) Extend the vertical sides of the frame and click the hinges into position. Fig. 06 05) Ensure that the corners are 90°. Stabilize them with the link rods. Fig. 07 Ordercode: 100430/100431/100432...
-
Page 9: Fabric Installation
Fast-Setup Screen Pro Fabric Installation 01) Unfold the screen fabric and place it on the frame. Fig. 08 02) Snap the screen buttons to the frame. Start with the frame corners and finish with the frame sides. Fig. 09 Ordercode: 100430/100431/100432... -
Page 10: Leg Installation
Fast-Setup Screen Pro Leg Installation 01) Unpack left and right frame legs and extend them. Put all the joints in position and fully outspread the corner link rods. Fig. 10 02) It is recommended to install the main frame on a flat surface. Put the assembled legs beside the main frame’s short side and fit them to the main frame’s short side, in order to set the desired screen... - Page 11 Fast-Setup Screen Pro 03) Loosen the locknuts on the legs and pull out the tubes. Insert the M8 x 90 mm locknuts into the previously reserved empty holes and tighten them. By doing so, you will connect the leg tubes with the legs and the main frame.
-
Page 12: Disassembly
Fast-Setup Screen Pro Disassembly 01) Place the screen on a flat surface, with the screen facing up. Fig. 14 02) Take the fabric off the frame, by releasing the buttons (Fig. 15). Clean the fabric, if necessary. Double up the fabric along the short sides (Fig. 16) and double it up again (Fig. 17). The 100” fabric should be doubled up 3 times, while the 120”... - Page 13 Fast-Setup Screen Pro 04) Remove the locknuts on both legs and take off the legs (Fig. 20). Pull up the leg’s corner link rod and remove the screws. Retract the leg tubes and fasten the screws again. Loosen the turning joint locks and fold the frame legs (Fig.
- Page 14 Fast-Setup Screen Pro 07) Unfasten the horizontal sides of the main frame so that the frame is fully folded. Fig. 26 08) Put the legs and the main frame in the flight case and fasten them (Fig. 27). Put the accessory bag inside.
-
Page 15: Maintenance
Fast-Setup Screen Pro Maintenance Fabric Cleaning Screen fabric: washable with soft cloth and lukewarm water. Please do not use alcohol or other liquids to wash the screen, as this will degenerate the fabric. Precautions ● Only use the device in locations shielded from the elements, especially wind. Strong wind may cause the screen to fall. -
Page 16: Dimensions
Fast-Setup Screen Pro Dimensions Viewing area Screen dimensions Specification Format Ordercode E (mm) B (mm) C (mm) weight (Inches) (kg) (mm) (mm) (mm) (mm) (mm) 100430 100” 2015 1524 2170 2273 1670 17,8 100431 120” 2438 1828 2618 2700 2000... -
Page 17: Notes
Fast-Setup Screen Pro Notes Ordercode: 100430/100431/100432... - Page 18 Fast-Setup Screen Pro Ordercode: 100430/100431/100432...
- Page 19 Fast-Setup Screen Pro Ordercode: 100430/100431/100432...
- Page 20 ©2018 D.M.T.
