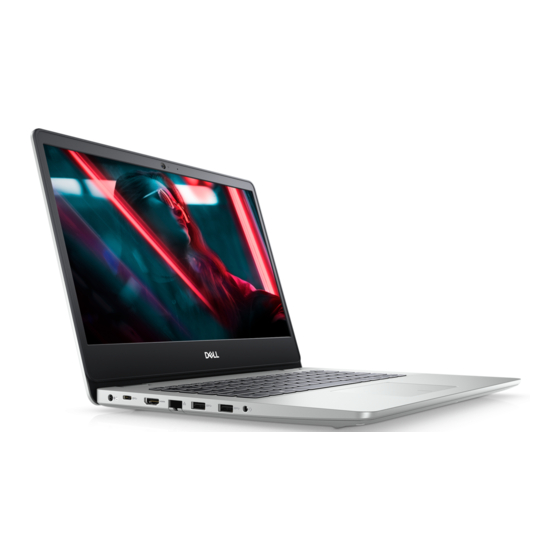

- Page 1 Inspiron 5494 Setup and Specifications Regulatory Model: P120G Regulatory Type: P120G001...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents 1 Set up your Inspiron 5494......................4 2 Views of Inspiron 5494......................... 6 Right......................................6 Left......................................6 Base......................................7 Display..................................... 8 Bottom....................................9 3 Specifications of Inspiron 5494....................10 Dimensions and weight................................10 Processors.................................... 10 Chipset....................................10 Operating system..................................11 Memory....................................11 Ports and connectors................................ -
Page 4: Set Up Your Inspiron 5494
SLN151664 SLN151748 at www.dell.com/support. For Windows: Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: • Connect to a network for Windows updates. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. - Page 5 Dell Update, see the knowledge base article SLN305843 at www.dell.com/support. Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 www.dell.com/ support. Set up your Inspiron 5494...
-
Page 6: Views Of Inspiron 5494
Views of Inspiron 5494 Right 1. SD-card slot Reads from and writes to the SD card. 2. USB 2.0 port Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 480 Mbps. 3. Security-cable slot (wedge-shaped) Connect a security cable to prevent unauthorized movement of your computer. -
Page 7: Base
If the power button has a fingerprint reader, place your finger on the power button to log in. Me and My Dell at NOTE: You can customize power-button behavior in Windows. For more information, see www.dell.com/support/manuals. -
Page 8: Display
1. Camera Enables you to video chat, capture photos, and record videos. 2. Camera-status light Turns on when the camera is in use. 3. Microphone Provides digital sound input for audio recording, voice calls, and so on. Views of Inspiron 5494... -
Page 9: Bottom
Provides audio output. 2. Right speaker Provides audio output. 3. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. Views of Inspiron 5494... -
Page 10: Specifications Of Inspiron 5494
Specifications of Inspiron 5494 Dimensions and weight Table 2. Dimensions and weight Description Values Height: Front 18 mm (0.71 in.) Rear 21 mm (0.83 in.) Width 328.7 mm (12.94 in.) Depth 239.50 mm (9.43 in.) Weight (maximum) 1.79 kg (3.95 lb) -
Page 11: Operating System
Table 6. External ports and connectors Description Values External: Network One RJ-45 port • One USB 2.0 port • Two USB 3.1 Gen 1 ports Audio One headset port Video One HDMI 1.4b port Media card reader One SD card slot Specifications of Inspiron 5494... -
Page 12: Communications
Wi-Fi 5 (WiFi 802.11ac) • Wi-Fi 5 (WiFi 802.11ac) Encryption • 64-bit/128-bit WEP • 64-bit/128-bit WEP • 64-bit/128-bit WEP • AES-CCMP • AES-CCMP • AES-CCMP • TKIP • TKIP • TKIP Bluetooth Bluetooth 4.0 Bluetooth 4.2 Bluetooth 5 Specifications of Inspiron 5494... -
Page 13: Audio
Intel Optane technology utilizes 3D XPoint memory technology and functions as a non-volatile storage cache/accelerator and/or storage device depending on the Intel Optane memory installed in your computer. Your computer supports the following Intel Optane Memory devices: • Intel Optane Memory M10 • Intel Optane Memory M15 Specifications of Inspiron 5494... -
Page 14: Media-Card Reader
Intel Rapid Storage Technology driver version 17 or higher Media-card reader Table 14. Media-card reader specifications Description Values Type One SD card slot Cards supported • Secure Digital (SD) • Secure Digital High Capacity (SDHC) • SD Extended Capacity (SDXC) Specifications of Inspiron 5494... -
Page 15: Keyboard
Front camera Sensor type CMOS sensor technology Resolution: Still image 0.92 megapixel (HD) Video 1280 x 720 (HD) at 30 fps Diagonal viewing angle 78.6 degrees Touchpad Table 17. Touchpad specifications Description Values Resolution: Horizontal 1230 Specifications of Inspiron 5494... -
Page 16: Touchpad Gestures
–40°C to 70°C (–40°F to 158°F) Battery Table 19. Battery specifications Description Values Type 3-cell polymer (42 WHr) Voltage 11.40 VDC Weight (maximum) 0.2 kg (0.44 lb) Dimensions: Height 5.90 mm (0.23 in.) Width 175.37 mm (6.90 in.) Specifications of Inspiron 5494... -
Page 17: Display
4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manger application. For more information on the Dell Power Manger see, and My Dell on https://www.dell.com/. -
Page 18: Video
0 m to 10,668 m (0 ft to 35,000 ft) * Measured using a random vibration spectrum that simulates user environment. † Measured using a 2 ms half-sine pulse when the hard drive is in use. Specifications of Inspiron 5494... -
Page 19: Keyboard Shortcuts
Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. - Page 20 Function key Behavior Pause/Break Sleep Toggle scroll lock Toggle between power and battery-status light/hard-drive activity light System request Open application menu Toggle Fn-key lock Page up Page down Home Keyboard shortcuts...
-
Page 21: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 26. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell Tips Contact Support In Windows search, type Contact Support, and press Enter.
