  • Page 1 AEROSCOPE Directional Antenna G-16 指向性アンテナ G-16 Product Information 製品情報 V1.4 2018.05...
  • Page 2: Disclaimer And Warning

    DJI product, or damage to other objects in the vicinity. This document and all other collateral documents are subject to change at the sole discretion of DJI.
  • Page 3 In the Box 2.4 GHz High-gain Antenna × 4 5.8 GHz High-gain Antenna × 4 High-gain Antenna Mounting Bracket × 8 Antenna Cable (1.8 m) × 4 Antenna Cable (1 m) × 4 M4×13 Screw × 64 Overview G-16 2.4 GHz Antenna Connection to the 5.8 GHz antenna IN port G-16 5.8 GHz Antenna...
  • Page 4: Antenna Installation

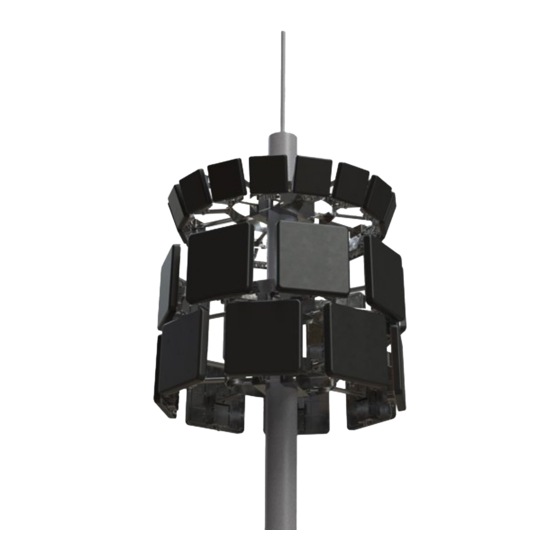

    G-16 Antenna Installation The figure below illustrates the G-16 antenna installation when attached to a pole. High-gain Antenna Mounting Bracket The figure below illustrates the connections between antennas. Note that the 2.4 GHz antenna connects to the 5.8 GHz antenna IN port via the antenna cable and the antenna cable from the OUT port connects to the Aeroscope stationary unit (the stationary unit is not shown in the figure).
  • Page 5 G-16 Antenna Basic Features The figures below show the 2.4 GHz and 5.8 GHz vertical and azimuth plane patterns. 0deg 0deg 90deg 270deg 90deg 270deg 180deg 180deg G-16 2.4 GHz antenna G-16 2.4 GHz antenna azimuth plane pattern vertical plane pattern 0deg 0deg 90deg...
  • Page 6: Specifications

    本製品の使用により直接または間接的に発生する損害、 傷害に対して、 DJI は一切責任を負い ません。 ユーザーは、 この文書の規定をはじめとする (ただしこれに限定しない) 、 安全で合法 的な使用方法を順守するものとします。 上記に関わらず、 該当する国の規制に基づくお客様の 制定法上の権利は、 本免責事項の影響を受けることはありません。 DJI は、 SZ DJI TECHNOLOGY CO., LTD. (略して 「DJI」 ) およびその関連会社の商標です。 本 書に記載されている製品、 ブランドなどの名称は、 その所有者である各社の商標または登録商 標です。 本製品および本書は、 不許複製 ・ 禁無断転載を原則とする DJI の著作物のため、 DJI か ら書面による事前承認または許諾を得ることなく 、 本製品または文書のいかなる部分も、 いか...
  • Page 7 製品の特徴 はじめに G-16 アンテナは AEROSCOPE システム用に設計されており、 16dBi* 利得、 22.5° * の信 号範囲の実現を目的としています。 2.4GHz と 5.8GHz の 2 種類のアンテナが含まれており、 異なる周波数帯域で作動します。 Aeroscope 固定ユニッ トには、 最大 4 基のデュアル ・ バンド ・ アンテナを接続できます。 G-16 アンテナセッ トは、 2.4GHz のアンテナ 4 基と 5.8GHz のア ンテナ 4 基で構成されています。 5.8GHz アンテナを 1 基の 2.4GHz アンテナに接続して、 1 つのデュアル...
  • Page 8 G-16 5.8 GHz アンテナ 2.4GHz アンテナに接続 Aeroscope 固定ユニッ トに接続 G-16 アンテナの取り付け 下図は、 ポールに G-16 アンテナを取り付けたときの設置図です。 アクセスに制限がある場所での取り付けを想定しています。 プラグ着脱可能な機器の場合、 コンセントの近くに機器を設置し、 アクセスしやすいようにして ください。 ハイゲインアンテナ 取り付けブラケッ ト...
  • Page 9 下図は、 アンテナ間の接続図です。 アンテナケーブルを使用して 2.4GHz アンテナを 5.8GHz アンテナの IN ポートに接続し、 OUT ポートからのアンテナケーブルを Aeroscope 固定ユニッ トに接続します (図中には固定ユニッ トは示されていません) 。 G-16 アンテナの基本機能 下図は、 2.4GHz と 5.8GHz の仰角平面パターンおよび方位角平面パターンを示しています。 0deg 0deg 90deg 270deg 90deg 270deg 180deg 180deg G-16 2.4GHz アンテナ G-16 2.4GHz アンテナの 方位角平面パターン の仰角平面パターン...
  • Page 10 0deg 0deg 90deg 270deg 90deg 270deg 180deg 180deg G-16 5.8 GHz アンテナ G-16 5.8 GHz アンテナ の仰角平面パターン の方位角平面パターン 仕様 2.4GHz アンテナ 5.8 GHz アンテナ 動作周波数 (MHz) 2,400 〜 2,500 5,700 〜 5,850 アンテナ利得 (dBi) 15.5 ビーム幅 VSWR (電圧定在波比) ≤ 2.0 ≤...
  • Page 11: Compliance Information

    EU Compliance Statement: SZ DJI TECHNOLOGY CO., LTD. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU.
