HEC906/HEC908 143 Litre White Refrigerator/Freezer
HEC907/HEC909 143 Litre Stainless Steel Refrigerator/Freezer
HEC910/HEC912 356 Litre White Refrigerator/Freezer
HEC911/HEC913 356 Litre Stainless Steel Refrigerator/Freezer
HED105/HED107 580 Litre White Refrigerator/Freezer
HED106/HED108 580 Litre Stainless Steel Refrigerator/Freezer
HEF540/HEF541/HEF542 Glass Door Refrigerators
For service during warranty period
Advertisement
Table of Contents
Related Manuals for Arctica HEC906
Summary of Contents for Arctica HEC906

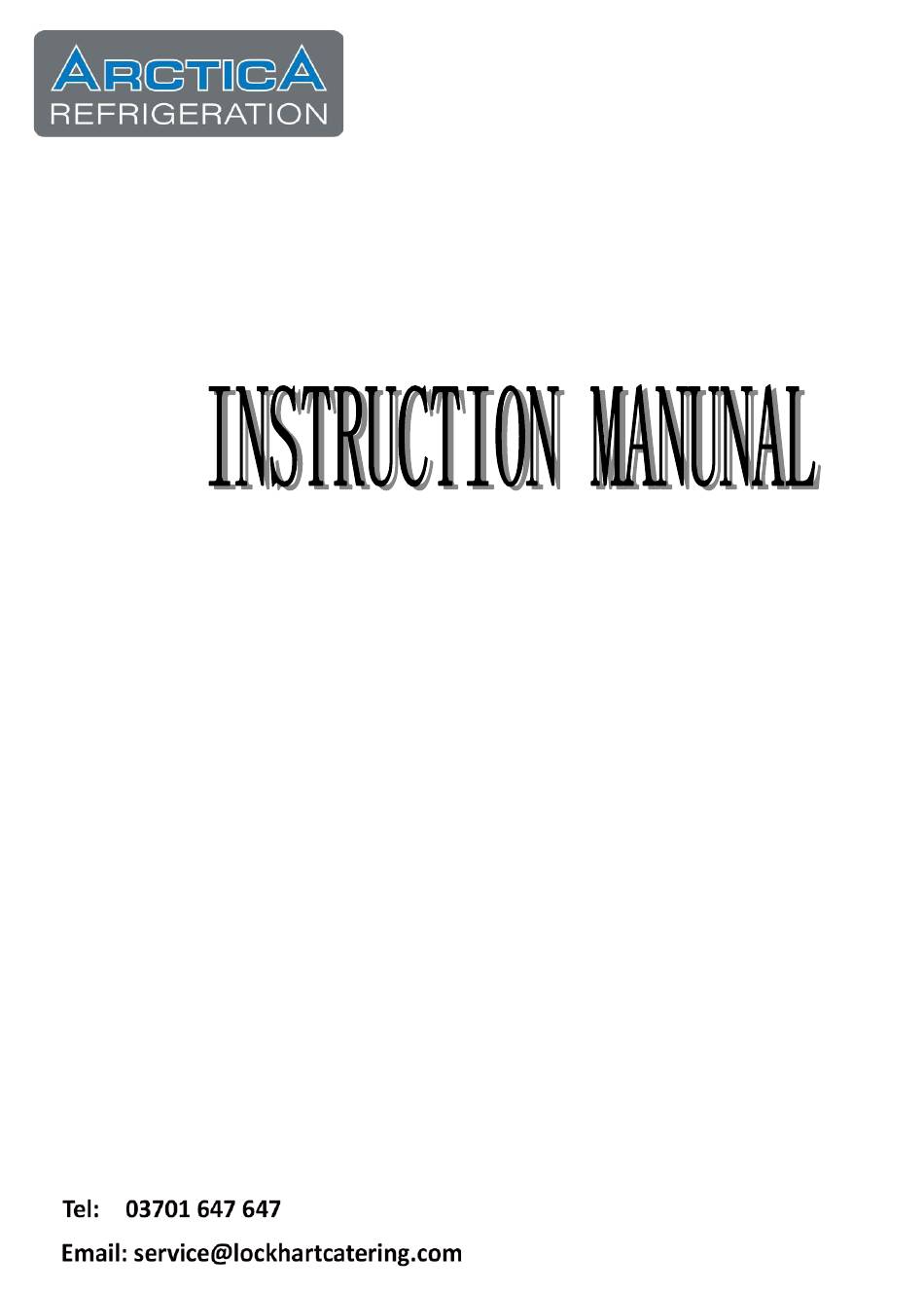

- Page 1 HEC906/HEC908 143 Litre White Refrigerator/Freezer HEC907/HEC909 143 Litre Stainless Steel Refrigerator/Freezer HEC910/HEC912 356 Litre White Refrigerator/Freezer HEC911/HEC913 356 Litre Stainless Steel Refrigerator/Freezer HED105/HED107 580 Litre White Refrigerator/Freezer HED106/HED108 580 Litre Stainless Steel Refrigerator/Freezer HEF540/HEF541/HEF542 Glass Door Refrigerators For service during warranty period...
-
Page 2: Safety Tips
Please read the manual before you use this product. This manual contains Important Safety Instructions which must be strictly followed when using this equipment. (e.g. heaters, ice-cream makers etc.) ▲DO NOT stand or support yourselves on the base, drawers or doors. Safety Tips ▲DO NOT allow oil or fat to come into contact with the plastic ▲Position on a flat, stable surface. -
Page 3: Installation
The following is included: *Refrigerator or Freezer *Shelves： Model Shelf Bottom shelf Lock/Unlock the Doors HEC906/907/908/909/HEF540 SR20/SF20(S)/SR20G A lock is fitted to the doors to ensure foodstuffs are kept secure within HEC910/911/HED105/106/HEF541/542 your appliance. Use the keys provided to lock/unlock the door... -
Page 4: Operation
All COMPACT models are equipped with a door lock, ensuring that stocks are safe after closing. Fitting the Shelves Place one set of shelf guides on either side of the cabinet at the desired height. Slide the shelf into place. Repeat for the remaining shelves. -
Page 5: Cleaning The Condenser
residues. To manually defrost the appliance: ▲Clean the door seal with water only. ▲Always wipe dry after cleaning. Press and hold the DEFROST Button for 5 seconds. ▲ Do not allow water used in cleaning to run through the drain hole The defrost cycle will start immediately and the Defrost LED illuminates. - Page 6 to the condenser is being interrupted Ambient temperature is too high Increase ventilation or move appliance to a cooler position Unsuitable foodstuffs are being stored in the Remove any excessive hot foodstuffs or blockages to appliance the fan Appliance is overloaded Reduce the amount of food stored in the appliance The appliance is not properly leveled Adjust the screw feet to level the appliance(if...
- Page 7 Technical Specifications Model Model Voltage Current Temperature Dimension Weight （ref capacity refrigerant ℃ W*D*H(mm) (kg) ） HEC906 SR20 220-240VAC 0～8 595*653*870 R600a/54g 50Hz HEC907 SR20S HEC908 SF20 220-240VAC -18～ -22 595*653*870 R600a/65g 50Hz HEC909 SF20S 220-240VAC HEF540 SR20G 0～8 595*635*870...
- Page 8 Electrical Wiring Appliances are supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. The plug is to be connected to a suitable mains socket. Appliances are wired as follows: Live wire (colored brown) to terminal marked L Neutral wire (colored blue) to terminal marked N Earth wire (colored green/yellow) to terminal marked E All appliances must be earthed, using a dedicated earthing circuit.
