Summary of Contents for Mueller 9x12 Greenhouse Kit

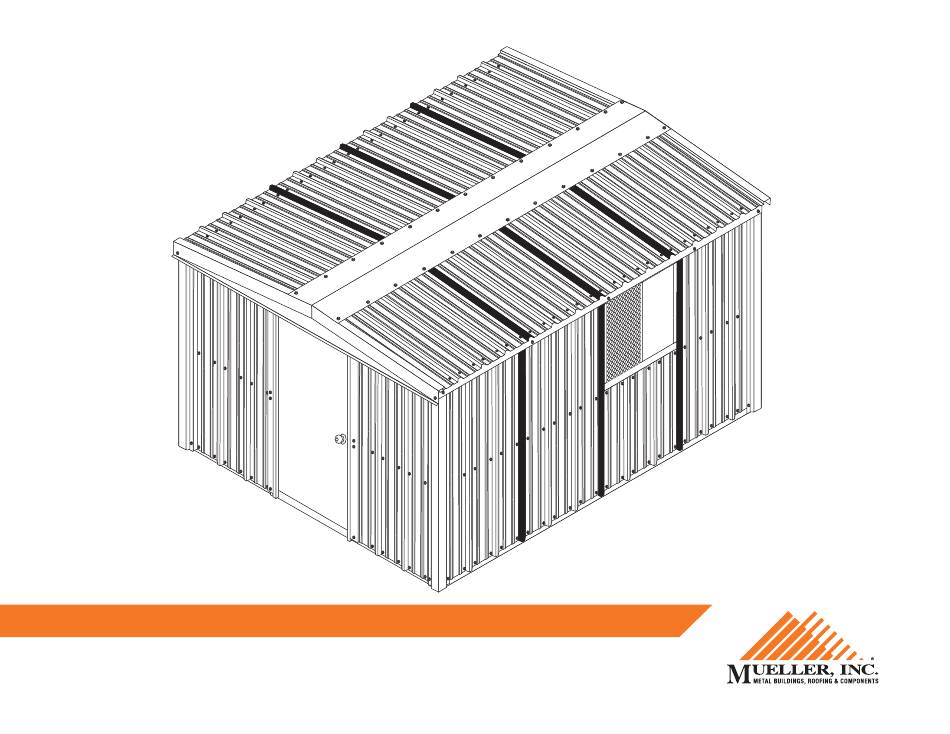

- Page 1 9x12 Greenhouse Kit Instructions Mueller Greenhouse Building Kits are not engineered structures and do not meet any specific building code criteria. For video installation instructions, visit our website at www.muellerinc.com/downloads-home/videos-home 877-2-MUELLER • www.muellerinc.com...
-
Page 2: Parts List
PG 2 PG 2 PG 2 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video PARTS LIST ng improvements, please refer to the parts list on the itemized invoice delivered with your building. All ciled on the inside of the channel, purlin, girts and rafters. Example of this is below: Refer to the parts list on the itemized invoice delivered with your building. -
Page 3: Types Of Screws
Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video TYPES OF SCREWS Skylight Screw TEK Screw Lap TEK Screw “Large Head” For attaching sheet metal to purlin For attaching sheet metal to sheet metal ⅞" 1 ¼" ¾"... - Page 4 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video BASE LAYOUT (BC-1 AND BP-1) STEP 1 STEP 2 STEP 3 Insert BP-1 into BC-1 Add MKB-1 (Galvanized MKB-2) to top of BP-1 into BC-1 NOTE: Leading and trailing edge of channels are overbent for a tight fit.
- Page 5 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video MAKE SURE THE ASSEMBLY IS SQUARE NOTE: Mueller recommends the building be placed on leveling blocks (not included) to support the base channel and purlins. Mueller also recommends the building be anchored to the ground or foundation.
- Page 6 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video ERECTING COLUMNS (C-1) Attach column to MKB-1 (Galvanized MKB-2) clip using 1/2"x1" Fin Head Bolts. HINT: Add clips to top of columns before standing up. MC-1 BP-1 BC-1 BC-1...
- Page 7 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video RAFTERS (R-1) Bolts should remain loose until EC-1 is installed. Place only inside bolt as shown.
- Page 8 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video EAVE CHANNEL (EC-1) Tighten bolts after EC-1 is installed. EC-1 EC-1...
- Page 9 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video MAKE SURE THE ASSEMBLY IS SQUARE AND LEVEL EC-1 EC-1 BP-1 BC-1 BC-1 Make sure the assembly is square. BP-1 Assembly is square when the corner to corner measurements are equal. Use temporary bracing (not included) to hold assembly square if required.
- Page 10 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video ROOF PURLIN Open side of RP-1 faces to center of building. EC-1 RP-1 RP-1 EC-1...
- Page 11 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video DOOR AND DOOR TRIM TOP VIEW Door Jamb Notch and Door bend trim as shown. J Trim Screw...
- Page 12 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video MID-GIRTS NOTE: Bolt to inside of column leg. MG-1, MG-2 AND MG-3 MKB-1 Clip Screws To attach MG-3, use TEK screws to go through door trim, door frame and girt.
-
Page 13: Add Window
Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video Eave Trim ADD WINDOW Lap TEK Screw Start sheet 1" in past steel line. Sheet 1" above bottom of base channel. inside/outside DripTrim closures behind drip trim 1" NOTE: Sheets below window will need to be field cut for window assembly from 3'8" panels. - Page 14 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video SHEETING SCREW PLACEMENT WALL SHEETS 36" 12" 12" 12" Lap TEK Screw Lap Strap “on the bottom” Skylight Skylight Skylight Skylight Skylight Skylight Skylight Screw Screw Screw Screw Screw...
-
Page 15: Top View
Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video SHEETING SIDEWALL TOP VIEW Sidewall Inside closure goes on the bottom and top of wall sheet. 1" NOTE: Start sheets 1" in from corner channel and start sheet 1" above the bottom of the base channel. - Page 16 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video SHEETING ENDWALL TOP VIEW Endwall Inside closure goes on the bottom and top of wall sheet. 1" NOTE: Start sheets 1" in from corner channel and start sheet 1" above the bottom of the base purlin.
- Page 17 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video SHEETING NOTE: Make sure the frame is plumb and level, and tighten all bolts prior to sheeting. Repeat for each wall. For side with door, start sheets flush with J-trim on both sides of the door.
- Page 18 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video CORNER TRIM Lap Strap Use TEK "on the bottom" screws to attach to frame...
- Page 19 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video BACK SIDE WALL Roof to wall sheet alignment. Align major ribs from wall to major rib on roof. NOTE: Make sure panels remain square during installation. 36" 12" 12"...
- Page 20 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video 36" 12" 12" 12" Lap TEK Screw Lap Strap “on the bottom” SHEETING THE ROOF Align roof sheets with wall sheets. Skylight Skylight Skylight Skylight Skylight Skylight Skylight Screw...
- Page 21 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video ROOFING TRIM DETAILS Outside Closures CAUTION: Use scaffold boards (not included) for support while installing roof sheets and trim. Outside Rake Inside Lap TEK Rake Screw Inside rake trim goes behind outside rake trim.
- Page 22 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video SKYLIGHT RIDGE ROLL INSTALLATION CAUTION: Use scaffold boards (not included) for support while installing roof sheets and trim. HINT: Screw corner of ridge roll and middle first to maintain pitch. Install remainder of screws.
- Page 23 Mueller, Inc. 9 x 12 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video TOTAL BUILDING MEASUREMENTS 7'1" 7'7" 12'4" 9'7"...
