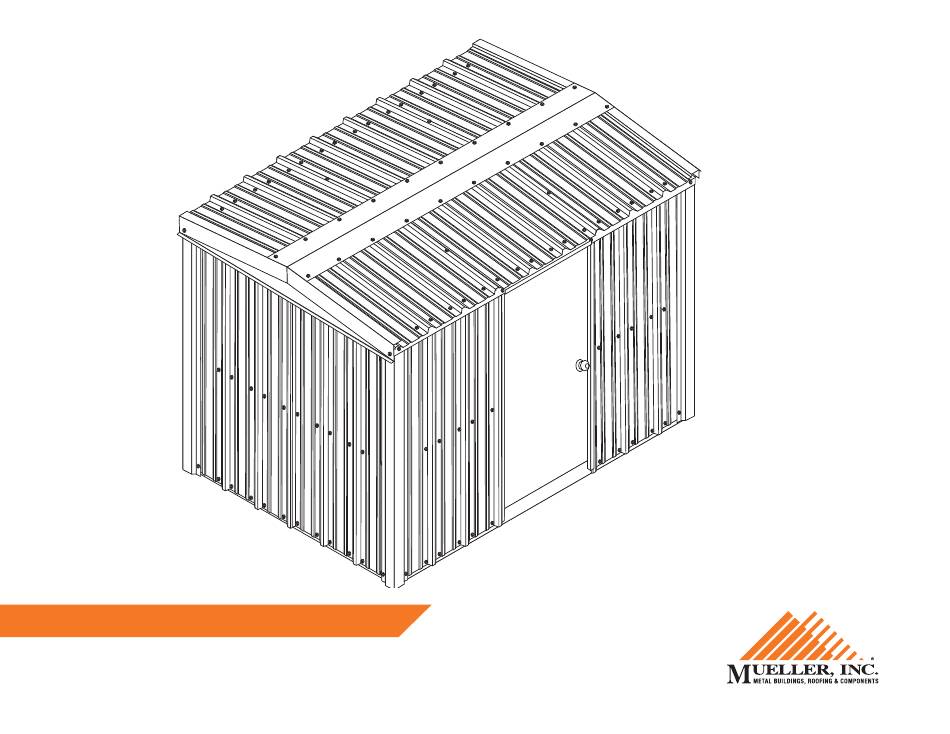

- Page 1 6x9 Greenhouse Kit Instructions Mueller Greenhouse Building Kits are not engineered structures and do not meet any specific building code criteria. For video installation instructions, visit our website at www.muellerinc.com/downloads-home/videos-home 877-2- MUELLER • www.muellerinc.com...
-
Page 2: Parts List
PG 2 PG 2 PG 2 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video PARTS LIST ng improvements, please refer to the parts list on the itemized invoice delivered with your building. All ciled on the inside of the channel, purlin, girts and rafters. Example of this is below: Refer to the parts list on the itemized invoice delivered with your building. -
Page 3: Types Of Screws
Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video TYPES OF SCREWS Skylight Screw TEK Screw Lap TEK Screw “Large Head” For attaching sheet metal to purlin For attaching sheet metal to sheet metal ⅞" 1 ¼" ¾"... - Page 4 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video BASE LAYOUT (BC-1 AND BP-1) STEP 1 STEP 2 STEP 3 Insert BP-1 into BC-1 Add MKB-1 (Galvanized MKB-2) to top of BP-1 into BC-1 NOTE: Leading and trailing edge of channels are overbent for a tight fit.
- Page 5 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video MAKE SURE THE ASSEMBLY IS SQUARE NOTE: Mueller recommends the building be placed on leveling blocks (not included) to support the base channel and purlins. Mueller also recommends the building be anchored to the ground or foundation.
- Page 6 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video ERECTING COLUMNS (C-1) Attach column to MKB-1 (Galvanized MKB-2) clip using 1/2"x1" Fin Head Bolts HINT: Add clips to top of columns before standing up. MC-1 BP-1 BC-1 BC-1...
- Page 7 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video RAFTERS (R-1) Bolts should remain loose until EC-1 is installed Place one bolt as shown.
- Page 8 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video EAVE CHANNEL (EC-1) Tighten bolts after EC-1 is installed. EC-1 EC-1...
- Page 9 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video MAKE SURE THE ASSEMBLY IS SQUARE AND LEVEL EC-1 EC-1 BP-1 BC-1 BC-1 Make sure the assembly is square. BP-1 Assembly is square when the corner to corner measurements are equal. Use temporary bracing (not included) to hold assembly square if required.
- Page 10 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video ROOF PURLIN Open side of RP-1 faces to center of building EC-1 RP-1 RP-1 EC-1...
- Page 11 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video DOOR AND DOOR TRIM TOP VIEW Door Jamb Door J Trim Screw Notch and bend trim as shown...
- Page 12 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video ADDING MID-GIRTS NOTE: Bolt to inside of column leg (MG-1, MG-2 AND MG-3) MKB-1 Clip To attach MG-3, use TEK screws to go Screws through door trim, door frame and girt.
-
Page 13: Add Window
Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video Eave Trim ADD WINDOW Lap TEK Screw Start sheet 1" in from steel line. Sheet 1" above bottom of base channel DripTrim inside/outside closures behind drip trim NOTE: Sheets below window... - Page 14 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video SHEETING SCREW PLACEMENT WALL SHEETS 36" 12" 12" 12" Lap TEK Screw Lap Strap “on the bottom” Skylight Skylight Skylight Skylight Skylight Skylight Skylight Screw Screw Screw Screw Screw...
-
Page 15: Top View
Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video SHEETING SIDEWALL WITHOUT DOOR TOP VIEW Sidewall Inside closure goes on the bottom and outside closure goes on top. 1" NOTE: Start sheets 1" in from corner channel and start sheet 1" above the bottom of the base channel... - Page 16 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video SHEETING SIDEWALL WITHOUT DOOR TOP VIEW Endwall Inside closure goes on the bottom and outside closure goes on top. 1" NOTE: Start sheets 1" in from corner channel and start sheet 1" above the bottom of the base purlin...
- Page 17 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video SHEETING NOTE: Make sure the frame is plumb and level, and tighten all bolts prior to sheeting. Repeat for each wall. TOP VIEW Door Jamb Panel Door J-Trim Screw...
- Page 18 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video CORNER TRIM...
- Page 19 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video BACK SIDE WALL Roof to wall sheet alignment Align major ribs from wall to major rib on roof NOTE: Make sure panels remain square during installation. 36" 12" 12"...
-
Page 20: Side View
Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video 36" 12" 12" 12" Lap TEK SHEETING THE ROOF Screw Lap Strap “on the bottom” Align roof sheets with wall sheets Skylight Skylight Skylight Skylight Skylight Skylight Skylight Screw... - Page 21 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video Lap Strap Install Foam Closures ROOFING TRIM DETAILS "on the bottom" CAUTION: Use scaffold boards (not included) for support while installing roof sheets and trim. Outside Rake Lap TEK...
- Page 22 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video SKYLIGHT RIDGE ROLL INSTALLATION CAUTION: Use scaffold boards (not included) for support while installing roof sheets and trim HINT: Screw corner of ridge roll and middle first to maintain pitch. Install remainder of screws.
- Page 23 Mueller, Inc. 6 x 9 Greenhouse Kit Instructions; For additional information, see the Greenhouse Installation Video TOTAL BUILDING MEASUREMENTS 7'½" 7'7" 9'7" 6'7"...
