- Page 1 VMX-synergy'· IP 66 REMOTE KEYPAD USER GUIDE...
- Page 2 This document may not be reproduced, in full or in part, without written permission. Enquiries about copyright of Motortronics UK Ltddeliverables should be made to Motortronics UK Ltd. If, by permission of the copyright owner, any part of this document is quoted, then a statement specifying the original document shall be added to the quotation.

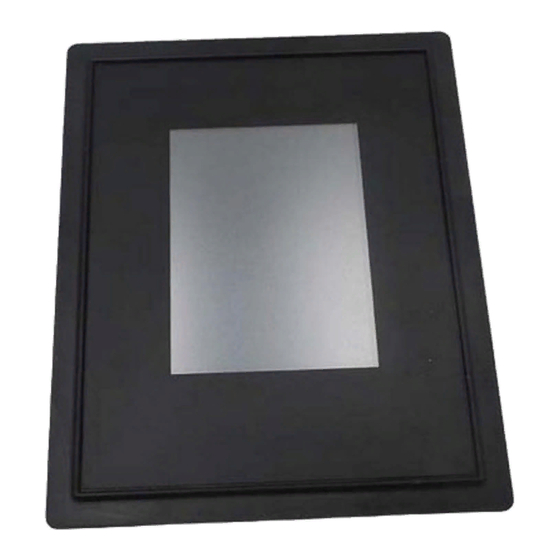

- Page 3 Remote Keypad Setup VMX-SGY-010-N4 Introduction The remote keypad (VMX-SGY-010-N4) can be used to control, monitor and program up to 32 VMX-synergy™ soft starters. The remote unit is powered from the host VMX-synergy™ and requires only an Ethernet cable for communication. Installation PEEL OFF PEEL OFF...
- Page 4 Remote Keypad Setup (Continued) Network Connection Keypad to one VMX-synergy™ unit For a configuration where there is only one VMX-synergy™ unit (one- to-one the remote and main unit can be directly cabled. See Diagram below: VMX-SGY-015 [ (or CAT5 cable to suit length required) VMX-SGY-014 (Included) A RJ45 to RJ12 adaptor cable is included as part of the kit (PN: VMX- SGY-014).
- Page 5 Remote Keypad Setup (Continued) Remote Keypad Operation Ensure starter’s Modbus Network Settings are: Even parity and 19200 baud rate. If connecting to multiple starters, set the Address to a unique number for each VMX-synergy™ starter. If remote touchscreen start/stop control is desired, set the Control Method to Modbus Control.
- Page 6 Remote Keypad Setup (Continued) The remote touchscreen’s control for starting and stopping overrides the starter’s onboard touchscreen when the starter’s Control Method is set to Modbus Control. Menu navigation, configuration, and monitoring are still possible on the starter’s touchscreen. Press the starter icon box on the Status screen of the remote touchscreen to change to another starter if controlling multiple starters from one remote touchscreen.
- Page 7 Notes VMX-synergy™ - IP 66 Remote Keypad User Guide P a g e...
