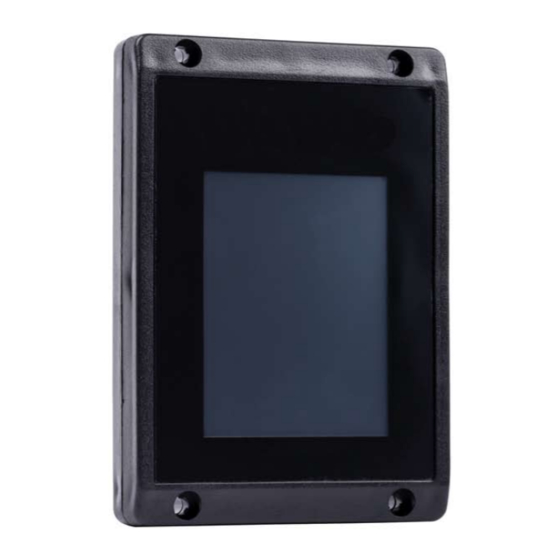

Remote keypad
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

MO T O R T R O N I C S
T M
S o l i d S t a t e A C Mo t o r C o n t r o l
V M X - s y n e r g y
T M
R E MO T E K E Y P A D U S E R G U I D E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VMX-synergy VMX-SGY-010 and is the answer not in the manual?

Questions and answers

Related Manuals for motortronics VMX-synergy VMX-SGY-010

Summary of Contents for motortronics VMX-synergy VMX-SGY-010

  • Page 1 MO T O R T R O N I C S S o l i d S t a t e A C Mo t o r C o n t r o l V M X - s y n e r g y R E MO T E K E Y P A D U S E R G U I D E...
  • Page 2 VMX-SGY-010 User Guide Phasetronics Inc. dba Motortronics 1600 Sunshine Drive Clearwater, Florida 33765 www.motortronics.com © 2019 by Phasetronics, all rights reserved Copyright subsists in all Phasetronics Inc. deliverables including magnetic, optical and/or any other soft copy of these deliverables. This document may not be reproduced, in full or in part, without written permission.
  • Page 3 Remote Keypad Setup VMX-SGY-010 Introduction The remote keypad (VMX-SGY-010) can be used to control, monitor and program up to 32 VMX- synergy soft starters. The remote unit is powered from the host VMX-synergy and requires only an Ethernet cable for communication.
  • Page 4 (or CAT5 cable to suit length required) CBL-014 A RJ45 to RJ12 adaptor cable is available from Motortronics (part number CBL-014). The use of this adaptor is recommended to ease network installation and reduce the possibility of incorrect wiring. Keypad to multiple VMX-synergy™ unit For multiple base units connected to the keypad, the use of SGY-011 is highly recommended.
  • Page 5 Remote Keypad Operation Ensure starter’s Modbus Network Settings are: Even parity and 19200 baud rate. If connecting to multiple starters, set the Address to a unique number for each VMX-synergy™ starter. If remote touchscreen start/stop control is desired, set the Control Method to Modbus Control. If the remote touchscreen will only be used for monitoring or configuration (digital input or local touchscreen start/stop control will be used), select the appropriate setting (Local Touchscreen, User Programmable, 2- wire control, or 3-wire control).
  • Page 6 MO T O R T R O N I C S S o l i d S t a t e A C Mo t o r C o n t r o l V M X - s y n e r g y R E M O T E K E Y P A D U S E R G U I D E P h a s e t r o n i c s , I n c .
