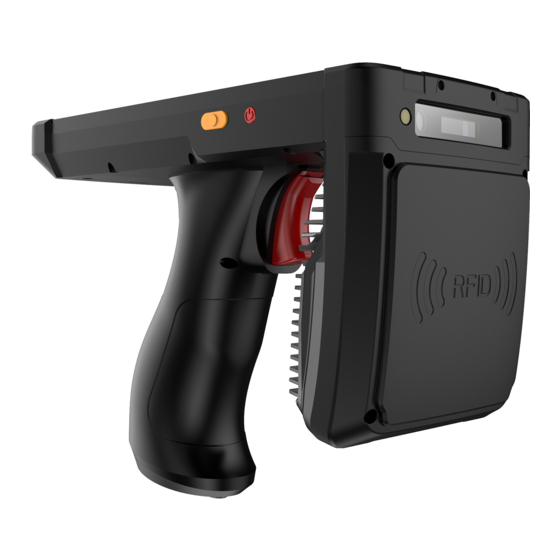

- Page 1 SPEEDATA SD60RT Quick Start Guide...
-
Page 2: Appearance And Keypad
SD60 Quick start guide V1.0 Appearance and Keypad Scanning hot key Power Handle key SIM card Standby battery Volume key & Scanning hot key Flash & camera Handle Sling Standby battery cap SIM Card 1 Both SIM cards use standard Nano-SIM cards. Please use professional equipment to open the SIM card warehouse, so as not to damage the equipment and affect the protection performance. -
Page 3: Wifi & Network
SD60 Quick start guide V1.0 upper right corner of the second layer of the slot, which is flat with the slot, and the SIM1 card is successfully placed. 3 When the SIM2 card is placed, the SIM2 card is placed horizontally in the upper left corner of the first layer of the slot, which is flat with the slot, and the SIM2 card is successfully placed. -
Page 4: Change Default Language
SD60 Quick start guide V1.0 Change default language 1 The default display language of the system is English. After the factory settings or firmware upgrade, the system display language is restored to English. Click Settings，Click System > Languages & input > Languages > + Add a Select the language you want to add. - Page 5 SD60 Quick start guide V1.0 code is successfully scanned when the scan button is pressed, the scanning laser will automatically turn off. (2) Single Scan: In this mode, press the scan button to turn on the scanning laser. If the bar code is successfully scanned, the scanning laser will automatically turn off.
-
Page 6: Product Parameters
SD60 Quick start guide V1.0 Product parameters Size Weight About 600g (with battery) (Note: Differences in different functional modules will cause actual weight differences, please refer to the actual product.) IP Code IP65 Color Black 第 6 页，共 10 页... - Page 7 SD60 Quick start guide V1.0 Screen Size: 6 inches, 18：9 Resolution 1080 * 2160 Type: IPS Touch screen: 5-point touch screen Processor CPU: Octa-core, 8*2.0 GHz Android 8.1 Memory RAM: 4GB ROM: 64GB Micro SD：Extension max128GB Battery 6000mAh（Typical value） Charging: 2.0 fast charging, full no more than 4 hours Camera Rear camera : 1300MP，AF...
- Page 8 SD60 Quick start guide V1.0 WCDMA：B1/B2/B5/B8 GSM：B2/B3/B5/B8 CDMA：1x/CDMA2000 BC0 Data connect WI-FI: 802.11a/b/g/n，2.4G & 5G WI-FI hotspot: support Support card reader mode, peer-to-peer mode, card emulation NFC: mode（14443A/B, ISO 15693, NFC） Bluetooth: BT 4.0 （BLE） fast charging USB: Type-C, OTG, USB tethering, USB Location GPS/GLONASS /Beidou Barcode...
- Page 9 SD60 Quick start guide V1.0 Standard Range (SR) Optics Symbology/X-Dim Typical Range* 46 mm – 419 mm (1.8” – 16.5”) 100% U.P.C 5 mil Code 39 64 mm - 163 mm (2.5" - 6.4") 28 mm – 338 mm (1.1” – 13.3”) 10 mil Code 39 6.7 mill PDF 417 46 mm - 185 mm (1.8"...
- Page 10 SD60 Quick start guide V1.0 www.speedata.cn Beijing Headquarters: Building, No.28 Shangdi Sixth Street, Haidian District, Beijing, China,100085 Shanghai Office Room 406,No.145, Street 1399,Hu Song Road, Songjiang District, Shanghai, China, 201615 Shenzhen Office Building 609, Block E, Bantian International Center, No.5 Huancheng South Road,...
