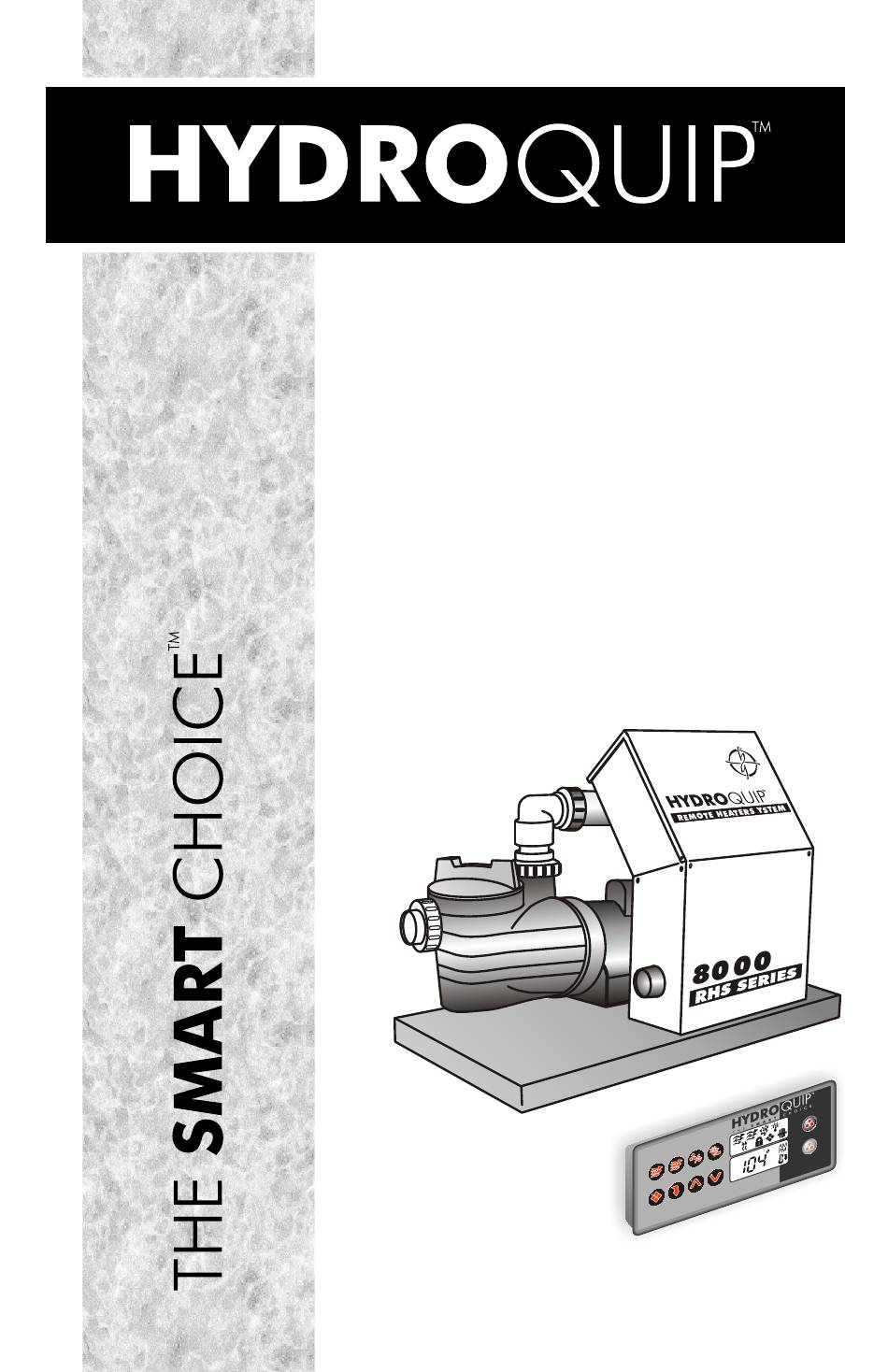

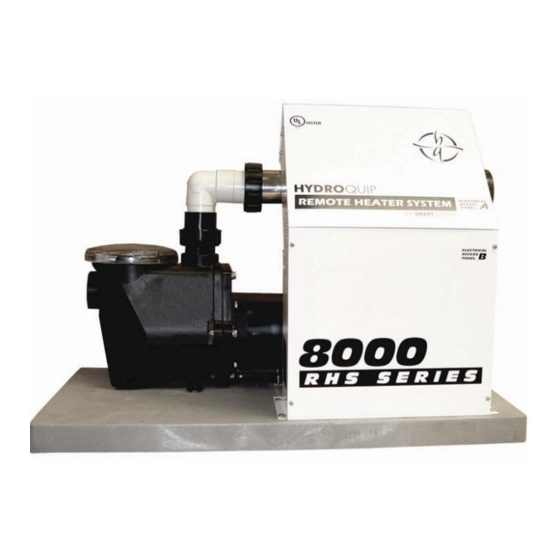

- Page 1 ULTIMATE PLUS SERIES ULTIMATE PLUS SERIES SOLID-STATE ATION ATION SYSTEM OPER SYSTEM OPER MANUAL MANUAL 8600...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions Major Component Illustration Heater Operation Spaside Control Filtration Programming Economy Programming Additional Features/Freeze Protection Error Identification Warm Weather Conditions Chemical Water Treatment Troubleshooting 14-15 Warranty Information... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS DANGER To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. WARNING - RISK OF CHILD DROWNING. Extreme caution must be exercised to prevent unauthorized access by children. - Page 4 Before entering the spa or hot tub, the user should measure the water temperature with an accurate thermometer. The use of alcohol, drugs, or medication before or during spa or hot tub use may lead to unconsciousness with the possibility of drowning. Persons suffering from obesity or with a medical history of heart disease, low or high blood pressure, circulatory system problems, or diabetes should consult a physician before using a spa or hot tub.
-
Page 5: Major Component Illustration
INTRODUCTION Congratulations on your new purchase. Hydro-Quip Equipment & Control Systems are constructed of the finest materials and assembled under the strictest quality control standards. With proper care and maintenance your system will provide you with many years of reliable performance. The following pages contain informative information concerning the operation and care of your system. -
Page 6: Heater Operation
HEATER OPERATION The control system may be supplied with one of three different heater configurations: 5.5kw electric, 11kw electric or Gas Heater Ready. In all cases a Gas heater circuit has been provided in the event a gas heater is to be used to “boost” the heat output of the system. - Page 7 YOUR SPASIDE CONTROL PUMP 2 ICON AIR BLOWER ICON BLOWER/LIST KEY HEATER ON ICON PROGRAM MODE ICON PUMP 2 KEY PUMP 1 ICON LIGHT ON ICON PUMP 1 KEY LIGHT/ENTER KEY PROGRAM KEY LCD WINDOWS AUXILIARY 2 KEY ECONOMY/NORMAL FILTERING ICON AUXILIARY 3 KEY MODE KEY TEMPERATURE SET ICON...
-
Page 8: Spaside Control
SPASIDE CONTROL - Continued Blower Key: Press this key to turn the Blower on and off. If equipped with a multiple speed blower; press this key once to turn Blower onto High speed, a second press will turn the Blower onto Medium speed, a third press will turn the Blower onto Low speed and a fourth press will turn the Blower off. - Page 9 SPASIDE CONTROL - Continued Economy Mode: Press this key to toggle between Economy and Normal operation. The Normal Mode will automatically maintain the water temperature at the desired set point. If the set point has not been programmed, the temperature will remain at 95F.
-
Page 10: Filtration Programming
FILTRATION PROGRAMMING To Access & Adjust “Standard Programming”: Press and hold the Program key for approximately 5-seconds. The “Program” icon will appear. The first parameter is the time setting. The time will appear with the hour flashing Press the Light/Enter Key to unlock the value for modification. Use the Up &... -
Page 11: Economy Programming
ECONOMY PROGRAMMING Economy Mode: A user activated feature that can potentially save energy by causing the system to maintain a temperature of 20F below the user programmed set temperature during peak hours or when the spa is not in use. Pressing this key displays the current Economy setting and allows you to adjust energy saving features built-in to your control. -
Page 12: Additional Features/Freeze Protection
ADDITIONAL FEATURES - Continued Smart Winter Mode: If the system detects ambient conditions below a preset factory setting, the system will automatically activate the Smart Winter Mode for a period of 24 hours. In this mode, if a pump has not been powered in the last 2 hours, the system will turn it on for one minute to prevent freezing. -
Page 13: Error Identification
ERROR IDENTIFICATION To assist the user in identifying problems with the spa, the system will display error messages in the lower window. These messages will be helpful when communicating with your local dealer or qualified technician if a problem should arise. PRESSURE or FLOW SWITCH ACTIVATED - This error will be displayed only when the pump is not activated. -
Page 14: Warm Weather Conditions
OPERATIONAL CONSIDERATIONS The following describes situations you may encounter and situations to be aware of. WARM WEATHER CONDITIONS Since your spa will normally be expected to maintain warm to hot water to be ready for your use, a great deal of attention has been directed to the energy conservation detail of insulation so as to keep electrical costs down. -
Page 15: Troubleshooting
TROUBLESHOOTING The following describes situations and possible solutions to common problems you may encounter as a spa owner. NOTHING OPERATES Main Breaker is OFF - Set to On. Sub-Panel Breaker Off - Set to On. Equipment GFCI Off - Set to On. Power switch in Off position - Set to On. - Page 16 WATER LEAKS Spa Overfilled - Adjust water level. Too Many People in the Spa - Adjust water level. Drain-Valve Left Open - Close drain valve. Couplings or Unions Loose - Tighten or contact your local dealer. Pump Seal Leaking - Contact your local dealer. Plumbing / Connections Leaking - Contact your local dealer.
- Page 17 SYSTEM DATA LABEL The system data label is located on the control box. This label is very important and contains information you will need to establish your electrical service. The voltage and amperage ratings are shown on the bottom of the label. Product, Model, Serial and Code numbers are also shown on the label.
- Page 18 NOTES Use this section to jot down any information you may need at a later date. Dealer: Date of Install: Contact: Phone: Address: City: State: Zip: Notes:...
-
Page 19: Warranty Information
WARRANTY INFORMATION To all original purchasers, HYDROQUIP warrants its products to be free from defects in material and workmanship for a period of one year from the date of purchase. HYDROQUIP will repair or replace the part, which in our opinion, is defective. - Page 20 85-0077-A Rev.03 09/12...
