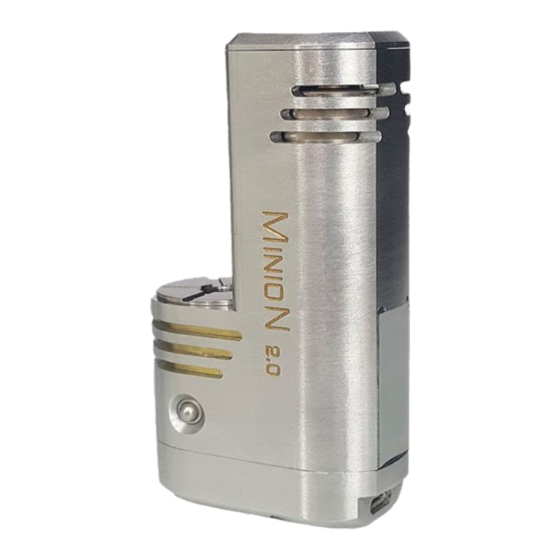

- Page 1 TEKDIVISION S.R.O. MinioN 2.0 Personal vaporizer User manual...
- Page 2 Let’s get started. 1. Insert battery Remove top cap whit negative contact screw. Insert battery. !!! Mind the polarity!!! Positive facing down. Put everything back together. Don’t over stress the thread on negative contact screw.. It’s not necessary. Insert atomizer in 510 connection. 510connection has adjusting screw for 360° adjusting capability .
-
Page 3: Down Button
2. NEGATIVE BATTERY CONTACT SCREW (unfasten the screw till you will be able to pull the top cap) 3. ATOMIZER 510 CONECTION 4. FIRE BUTTON 5. HEX SCREW FOR 510 CONECTION ROTATING ADJUSTMENT 6. DOWN BUTTON... -
Page 4: Charging Indicators
1. microUSB CHARGING PORT 2. DNA40 DISPLAY 3. WARRANTY SEALING 4. CHARGING INDICATORS: charging in progress BLUE charging completed... - Page 5 Minimum Typical Maximum Output Power 1 Watt 40 Watt Output Voltage 1 Volt 9.0 Volts Output Current, continous 16.0 Amps Output Current, instantaneous peak 23.0 Amps Atomizer Resistance, standard wire 0.16 Ohm 0.7 Ohm 2.0 Ohms Atomizer Resistance, temp. sensing wire 0.10 Ohm 0.4 Ohm 1.0 Ohm...
- Page 6 Because wattage, not temperature controls vapor volume, large vapor volumes can be produced without unnecessarily high temperatures. Temperature Protection is most helpful if the atomizer begins to dry out, the user pauses during a puff, the beginning or end of the puff, or if the wattage setting is inappropriate for the attached atomizer.
- Page 7 Attaching a New Atomizer The Dna 40 uses the resistance of the atomizer to calculate the temperature of the heating coil. It continually looks to see whether a new or changed atomizer has been connected. If you are using temperature protection, be careful to only attach new atomizers that have cooled to room temperature to the device.
- Page 8 Watt setting: The power level currently set on the Dna 40 Battery indicator: The current state of charge of the battery. Temperature display: When not firing, the maximum heating coil temperature setting. While firing, the actual temperature of the heating coil is displayed. Ohms display: The resistance of atomizer attached to the device.
- Page 9 seconds. This setting is stored to internal flash memory, and remains if power is removed. Right mode and Left mode: While locked, holding the Fire and UP buttons simultaneously for 5 seconds flips the display. This allows for accommodating to left or right handed use.
- Page 10 Ohms Too High: The resistance of the atomizer coil is too high for the current wattage setting. If this happens, the Dna 40 will continue to fire, but will not be able to provide the desired wattage. The Ohms Too High message will continue to flash for a few seconds after the end of puff.
