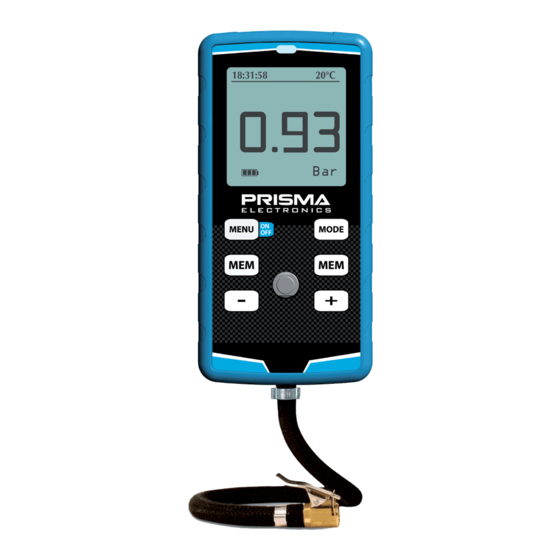

- Page 1 RACING INSTRUMENTS Get Ahead... 18:31:58 20°C REFERENCE MANUAL T3:123°C Multifunctions istrument Tire pressure gauge & Stopwatch Part number : HPM4+PYR2-IR+STW MADE IN ITALY...
- Page 2 STOPWATCH MODE Auto Power OFF after 10 minutes of 1 - Power ON MENU inactivity. To force the Power OFF, press Press and Hold L1 button 2 - The display show L1 - L2 - L3 - L4 is the DRIVER 1’s START - STOP Button ---> is the Split time button is the DRIVER 2’s START - STOP Button --->...
- Page 3 The display show which buttons to press for each Menu DELETE DATA READ DATA SET DEVICE Follow the instructions on the display to complete all operations. Read data By pressing S2 button, the display shows the current test Lap times. With S2 - S3 buttons it is possible to read the Lap Split Times.
- Page 4 PRESSURE GAUGE MODE Auto Power off after 2,5 minutes if inactivity. 1 - Power ON MENU To Power off manually , press and hold the Press button ON/OFF button. 2 - The display shows the test number [ 01 ] : Measure and set the pressure of the tire shown on the display.
- Page 5 5 - Repeat the same procedure for the HOT TIRES PRESSURE 1.50 1.50 1.70 1.65 For a new Test press +0.20 +0.15 1.65 1.65 1.85 1.80 +0.20 +0.15 Press for TIRE TEMPERATURES MODE MODE TIRE TEMPERATURE MODE Press to save AIR temperture.The display show A : XX°C Press to save TRACK temperature.The display show T : YY°C TRACK Press to save tire temperatures.
- Page 6 01 : Test number Press to return PRESSURE MODE MODE...
- Page 7 CONFIGURE - RESET - READ MEMORY ------ Press MENU The display shows all the Menu and which buttons need to press . RESET DATA READ SAVED PRESSURES CONFIGURE MODE Follow the instructions shown on the display. FUNCTION PRESSURE DIFFERENCE This function is used to show the difference from COLD and HOT tire pressures on the display.
- Page 8 For Technical support visit www.prismaelectronics.com MADE IN ITALY...
